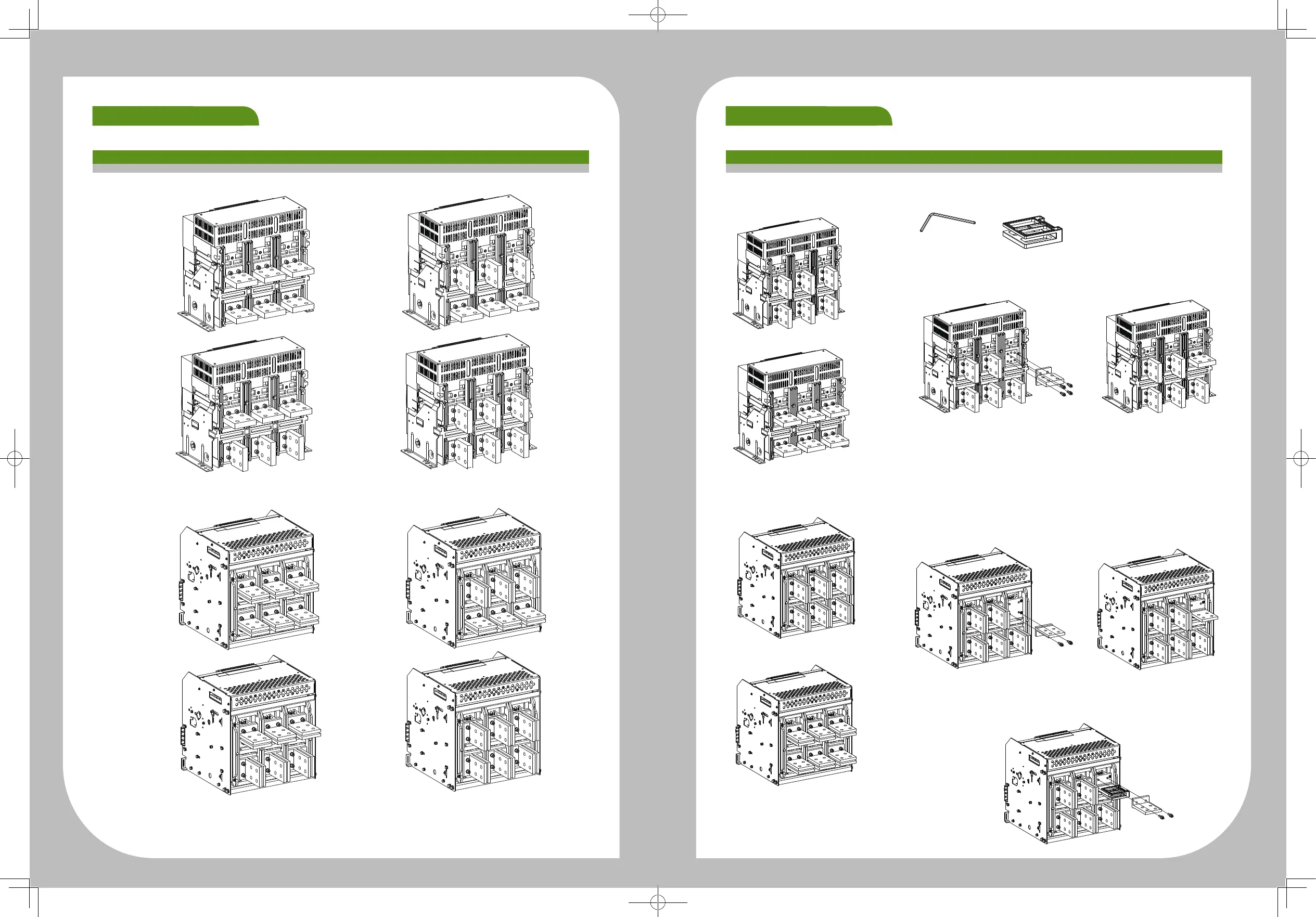

User Manual 37User Manual 36
Terminals are adjustable in field
Terminal Adjustment
Mixed terminals
Mixed terminals
Vertical terminals
Mixed terminals
Vertical terminals
Note: 3200A only provided with vertical type
Terminal Adjustment
②Install the one of the terminal and lock
the screws with tightening torque (15~17) N.m
③Use the limit clamp to fix and install
another terminal, lock the screws
with tightening torque (15~17) N.m
①Remove and rotate
the terminals by 90 degrees
②Install the terminal and lock
the screws with tightening
torque (15~17) N.m
Breaker with single terminal
Allen wrench
Limit clamp
Breaker with double terminals
①Remove and rotate the
terminals by 90 degrees
To Next Page
