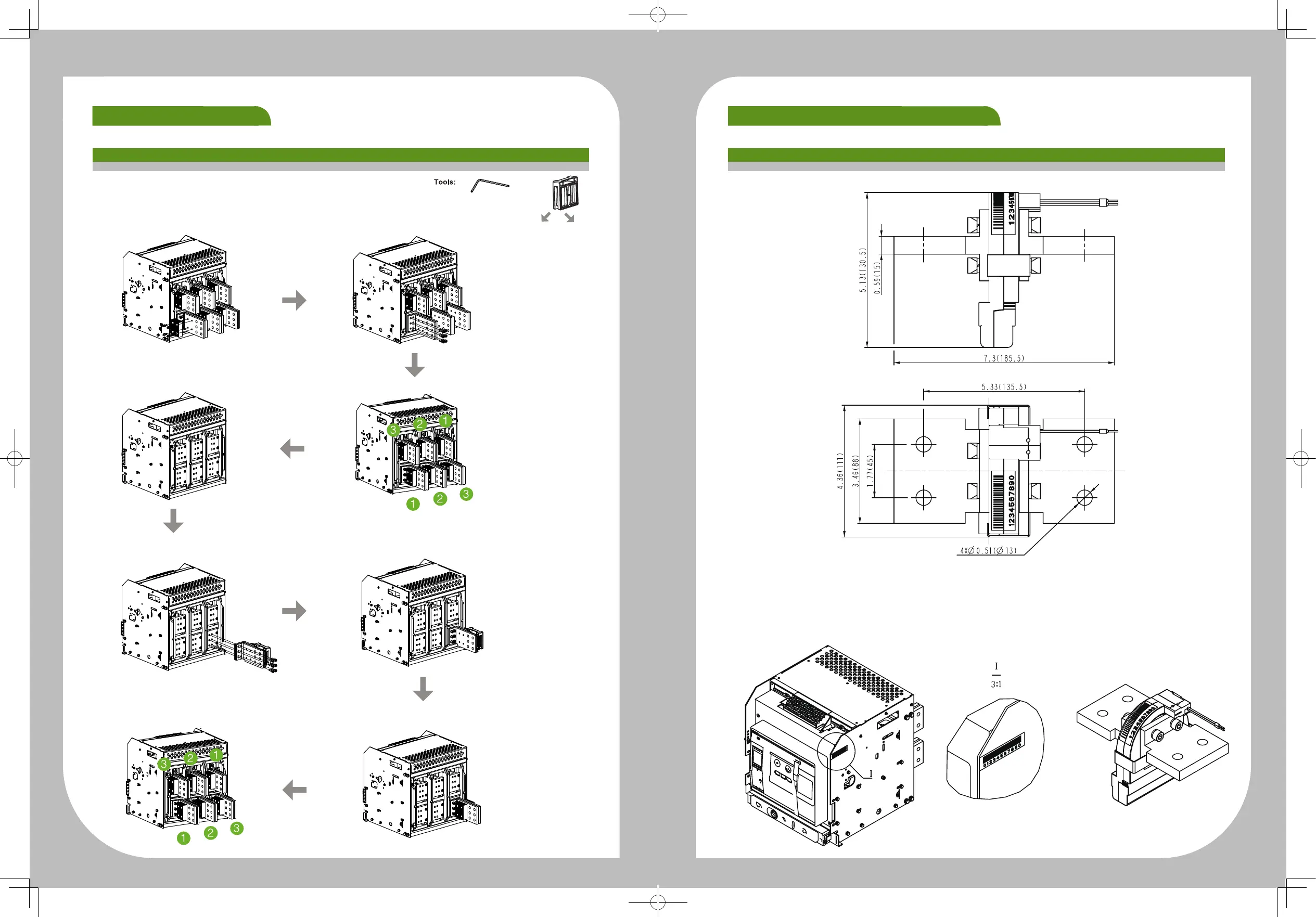

①Remove the inner heat sink
②Remove the bus bar screws
No need to remove the external heat sink
⑤Mounting limit clamp
⑦Install heat sink
③Remove the bus bar in sequence
④Finished
⑥Install the bus bar and lock the screws with
tightening torque (15~17)N.m
4and 6MM Allen wrench
③Install the bus bar in sequence
0.25in(6.4mm) 0.39in(10mm)
Terminal Adiustment
Adjsut terminals clearance
Neutral Current Transformer
A32 Neutral Current Transformer
Dimensions
In(mm)
Note:
1. The bar code of Neutral Current Transformer must be the same as that of the circuit breaker and is not interchangeable;
2. Connect the conductor of Neutral Current Transformer to 28#, 29# terminals.
A32 Neutral Current Transformer
15~17N·m
40~50N·m
Main circuit feed
Main circuit feed
Main circuit feed direction
Upper supply
Main circuit feed direction
Lower supply
