4. INSTALLATION
4.1. How to remove packaging
The vessels are shipped wrapped in a plastic foil; remove it with care before starting-up.
Keep the cards and everything contained inside the packaging.
The media filter are shipped as separated:
• in bags of 25 kg (35 liters approx) each or fraction anthracite
• in bags of 25 kg each or fraction quartz sand
• in bags of 25 kg (50 liters approx) each or fraction activated carbon
• in bags of 25 kg each or fraction PL
4.2. How to move and lift the unit
The vessels can be displaced when they are empty, hooking and lifting by the special rings
mounted on the upper part of the vessels (see fig. 1). It is recommended to use proper sized
hooks and ropes, according to the weight. It is also possible to hook and lift the vessel by the
bearing legs.
4.3. Placing & commissioning
Place the unit according to the available room of the site and the required room for current
maintenance and service of the equipment. See the dimensional drawing.
• Place the column of media filter on a perfectly flat surface. See the dimensional drawing
concerning the placing of the unit according to the walls of the site and required room for
maintenance and service. The shown scheme is only suggested; the column can be placed
in different positions; according to the inlet/outlet connections on the valve groups.
• Fix the valves manifold to the vessel (see installation drawing)
• Fix the control board to the valves manifold
-DUAL arrangements only :
• Repeat the same operations for both columns; yet, the control panel is only one for both
columns and must be fixed on column A (see installation drawing).

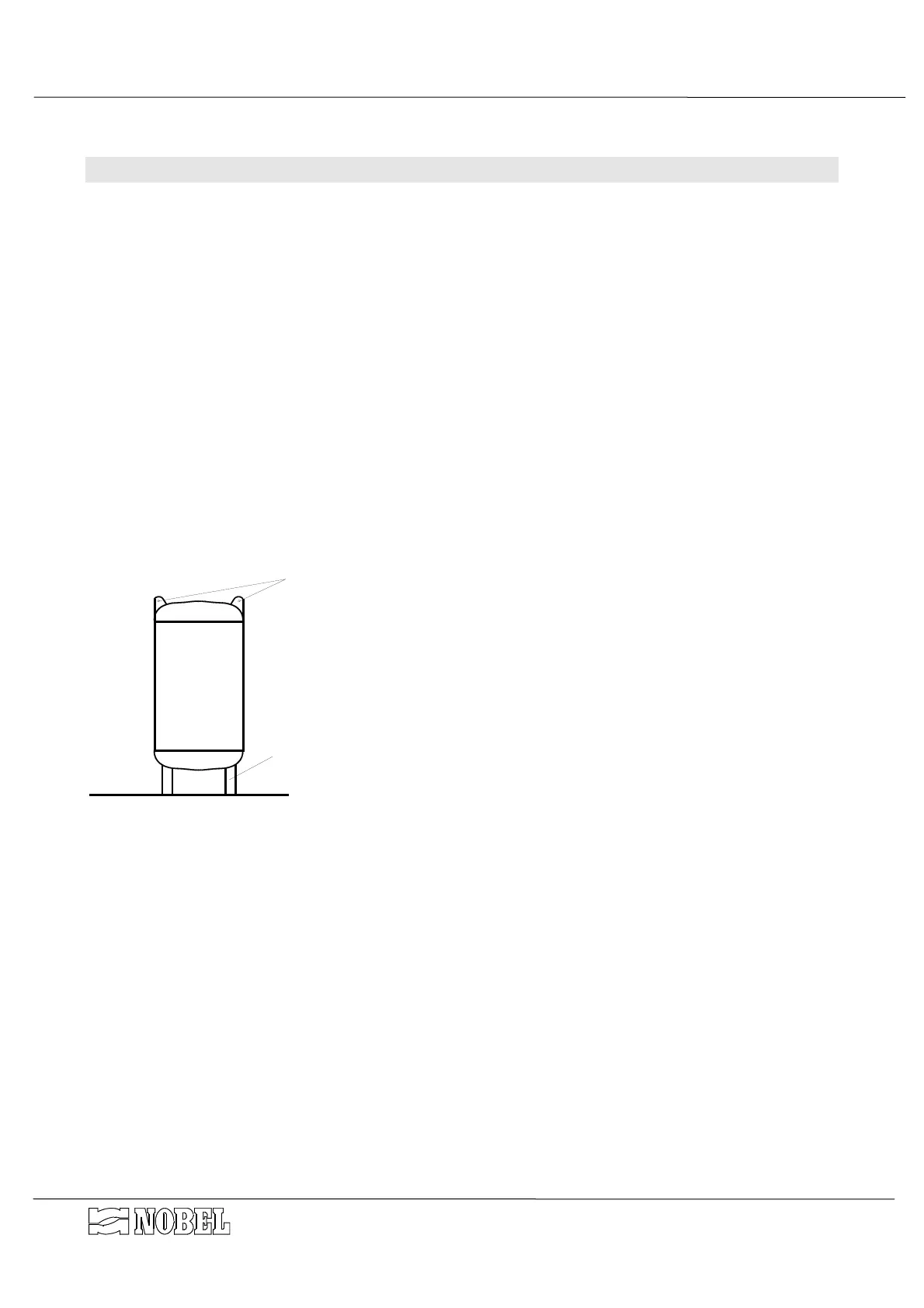

GOLFARI
GAMBE DI SOSTEGNO
CAUTION : DO NOT LIFT OR MOVE THE UNIT HOOKING OR
CATCHING BY THE PRE-ASSEMBLED PARTS.
