OPERATION
16
Nobles Strive Rider (09--06)
CIRCUIT BREAKERS / FUSES
The machine is equipped with two resettable circuit
breakers and two fuses to protect the machine from
damage. If a breaker should trip, determine the cause,
allow the motor to cool then reset the circuit breaker
button.

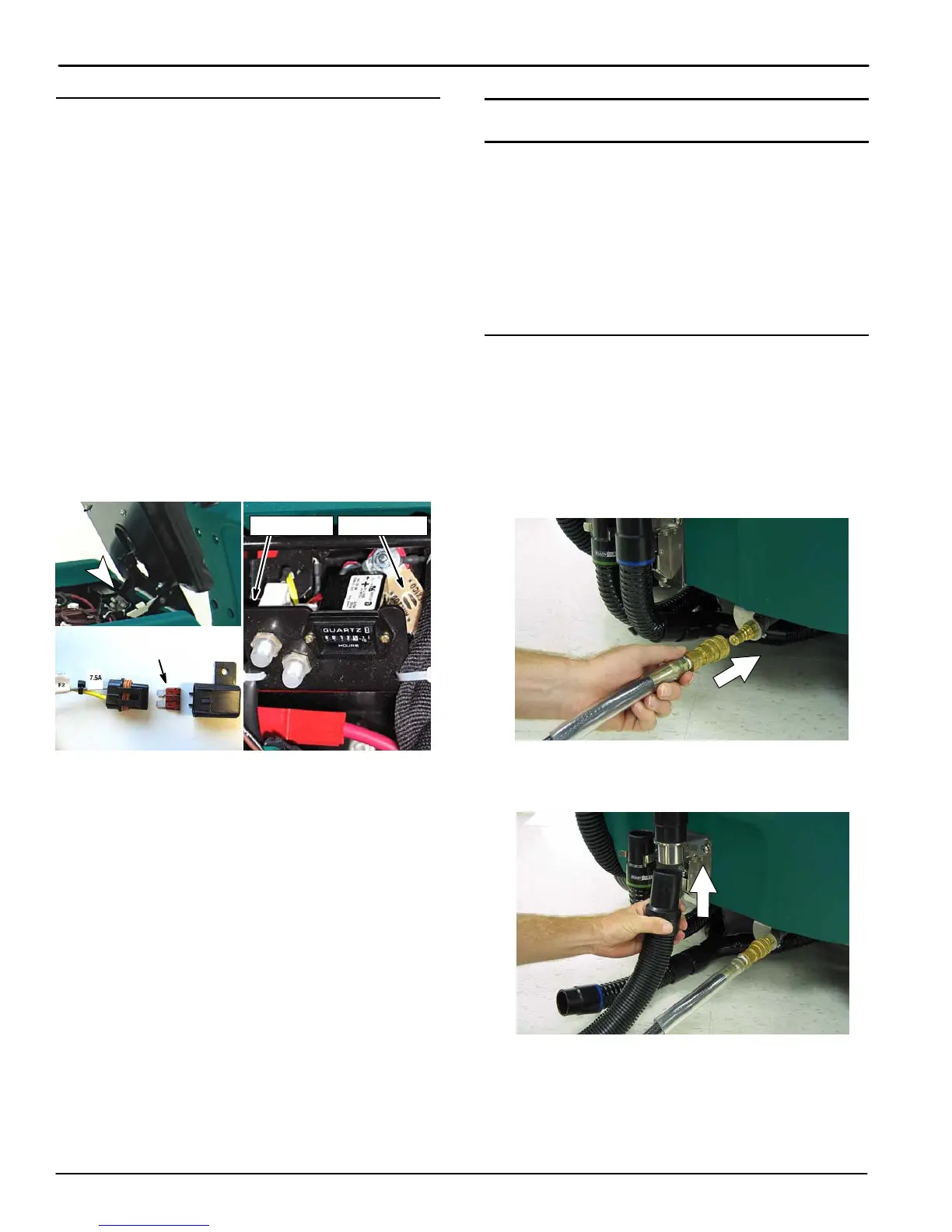

The circuit breakers and the fuses are located inside
the battery compartment near the hour meter (Figure
30). When replacing a blown fuse never substitute a
higher amp rated fuse than specified.
CIRCUIT BREAKERS:
5 A -- controller key switch input
15 A -- solution pump/solution solenoid/ brake/horn/
hour meter (See page 30 for solution solenoid
reference)
FUSES:
100 A -- main (part no. 86379)
7.5 A -- solution pump (part no. 1016039)
7.5 A Fuse 100 A Fuse
5A
15A
7.5 A Fuse
FIG. 30
FOR SAFETY: When servicing machine, all repairs
must be performed by a qualified service person.
ACCESSORY TOOL OPERATION
Optional cleaning tool accessories are required for
accessory tool operation. The use of accessory
cleaning tools allow you to clean areas where the
machine is unable to reach, such as alcoves, stairs and
small rooms. Upholstery tool attachments are also
available.
For a complete list of available cleaning tool
accessories refer to the supplied PARTS LIST manual.
PREPARING MACHINE FOR ACCESSORY TOOL
CLEANING
1. Fill the solution tank. See FILLING SOLUTION
TANK on page 11.
2. Park the machine on a level surface and turn the
key to the off position.
3. Connect the accessory solution hose to the
solution coupler (Figure 31).
FIG. 31
4. Connect the accessory vacuum hose to the
recovery intake connector (Figure 32).
FIG. 32
5. Attach the accessory tool to the hoses.
To Next Page
