OPERATION
Nobles Strive Rider (03--09)
7

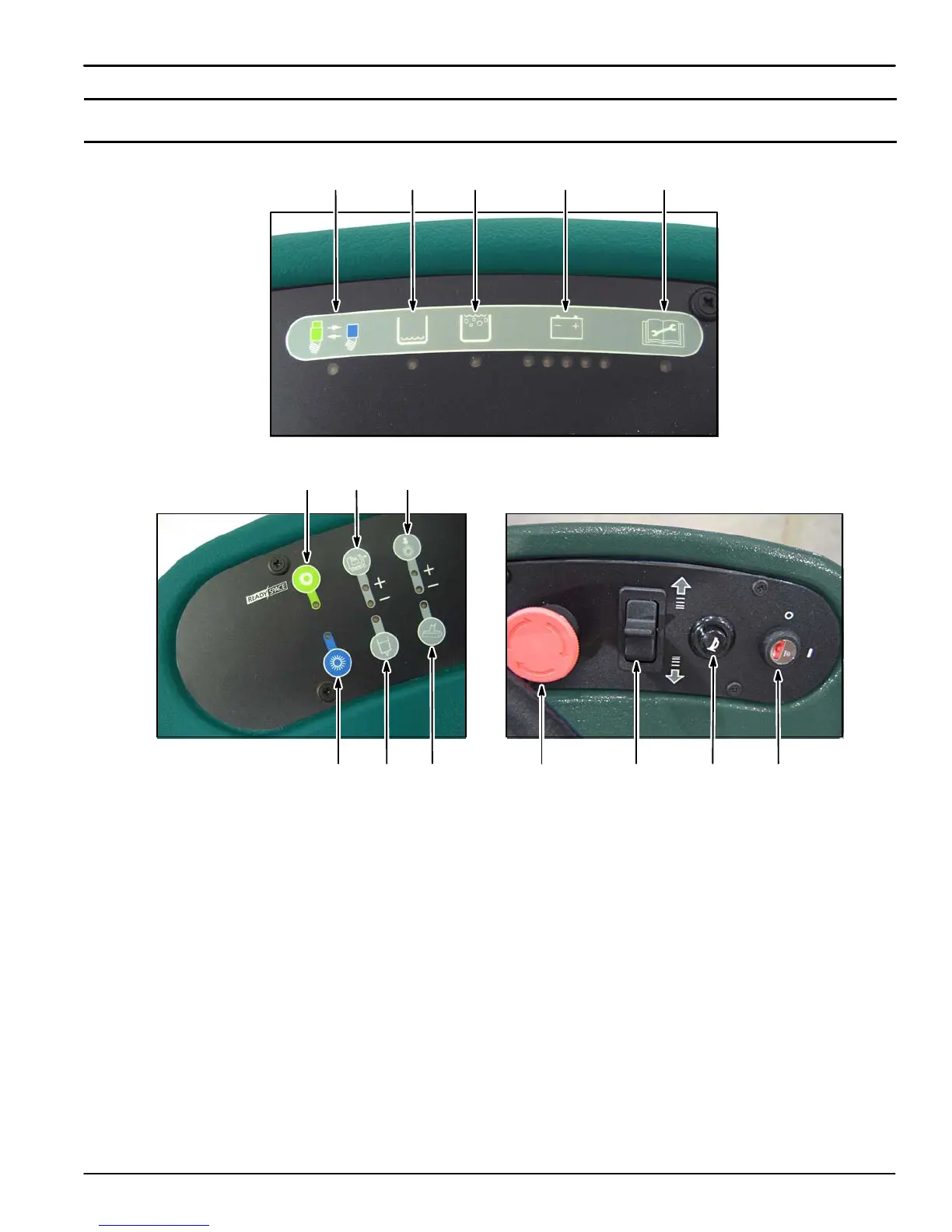

CONTROL PANEL COMPONENTS
562
314
12
8791011
1314 15
1. ReadySpace on/off button
2. Extraction cleaning on/off button
3. Speed selection button (--) standard
(+) high productivity
4. Brush pressure button (--) standard (+) heavy
5. Solution on/off button (extraction cleaning)
6. Accessory tool on/off button
7. Vacuum hose connection indicator
8. Solution tank empty indicator
9. Recovery tank full indicator
10. Battery charge level indicator
11. Fault indicator
12. Horn button
13. Directional switch
14. Emergency stop button
15. Main power on/off key switch
