More than clean, it’s ReadySpace.
t
R

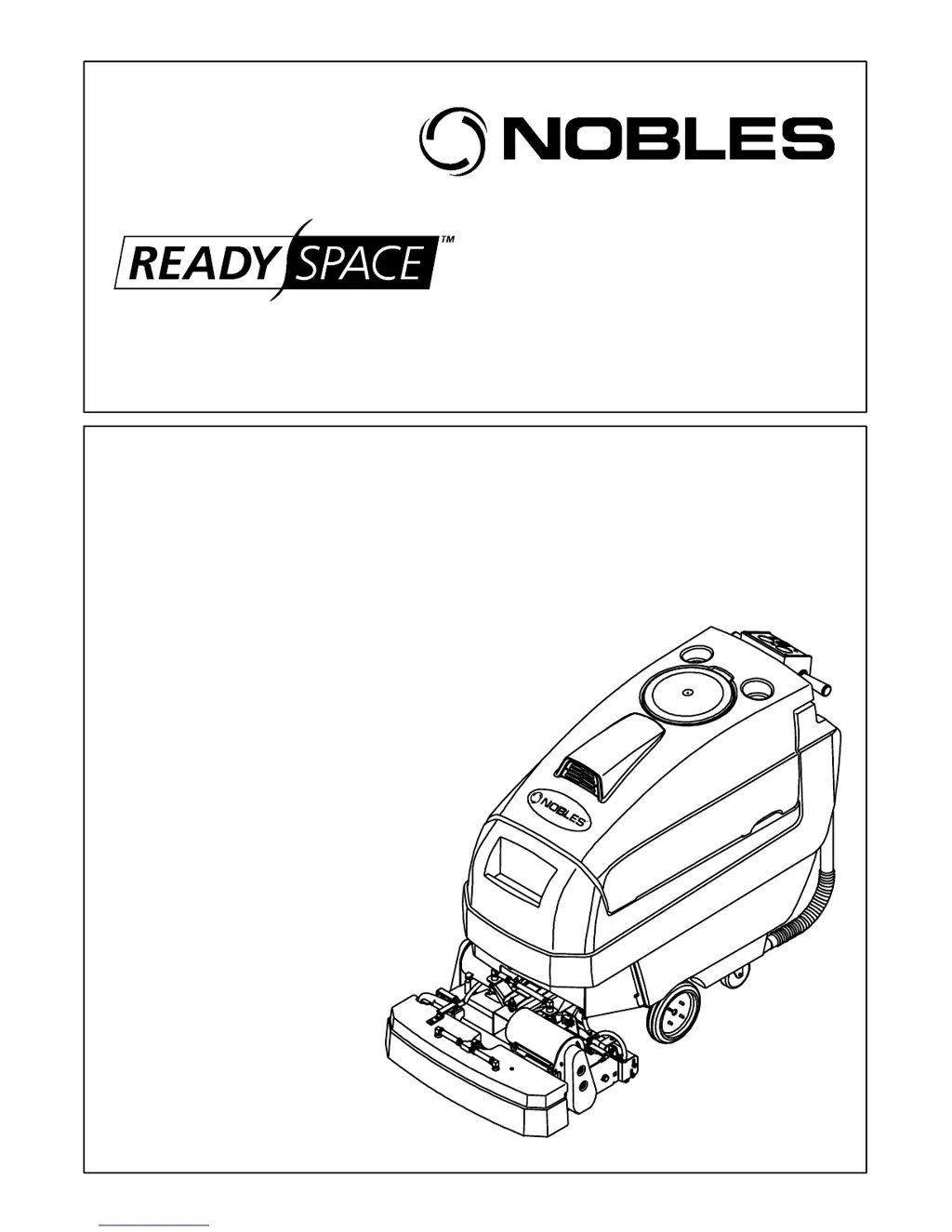

Operator and Parts Manual
Dual Technology Carpet Cleaner
Strive
Model No.:
9000503
1017967
Rev. 00 (09 -04)
t
U.S. PATENT NO.: 6,662,402 & 6,735,812, and Patents Pending

Questions and Answers

  • J
    jody75Jul 30, 2025
    What to do if the Nobles Vacuum Cleaner has poor water pickup?
    • C
      Charles BrownJul 30, 2025
      If your Nobles Vacuum Cleaner isn't picking up water well, several factors could be the cause. Make sure to check the following: * Drain the recovery tank if it's full. * Replace worn ReadySpace rollers. * Clean any clogs from the vacuum shoes. * Install the correct vacuum shoe. * Clean the float shut-off screen inside the recovery tank. * Tighten the recovery tank drain hose cap. * Securely connect any loose or disconnected vacuum hoses. * Remove any debris clogging the vacuum hose. * Replace a defective vacuum hose. * Properly position the recovery tank lid. * Replace a worn tank lid gasket.
  • C
    Courtney GrantAug 3, 2025
    Why is there excessive foam/cream on the floor when ReadySpace cleaning with my Nobles Vacuum Cleaner?
    • S
      smayAug 4, 2025
      If you notice excessive foam or cream appearing on the floor during ReadySpace cleaning with your Nobles Vacuum Cleaner, it's likely because cleaning detergents were added to the solution tank. To resolve this, drain and rinse out the solution tank, then refill it with water only. Avoid adding cleaning detergents to the tank.
  • C
    cynthiapopeAug 8, 2025
    Why is there no solution spray or uneven spray from my Nobles Strive 9000503?
    • A
      alisonlevyAug 8, 2025
      If you're experiencing no solution spray or uneven spray from your Nobles Vacuum Cleaner, here are some things to check: * Ensure the control grips are rotated to activate the spray. * Refill the solution tank if it's empty. * Install the correct vacuum shoe. * Clean any plugged spray tips. * Realign spray tips if the spray pattern is off. * Clean the solution tank filter if it is plugged. * Flush the plumbing system to clear any clogs in the solution line.
  • N
    Norman ColonAug 13, 2025
    Why does my Nobles Strive 9000503 Vacuum Cleaner have a short run time?
    • J
      Joseph HensleyAug 13, 2025
      A short run time for your Nobles Vacuum Cleaner can be due to several reasons: * Charge the batteries if they have a low charge. * Replace defective batteries. * Repair or replace a faulty battery charger.
  • J
    Jennifer MorganAug 16, 2025
    How to fix a Nobles Vacuum Cleaner if the scrub head will not lower?
    • M
      Michael BarkerAug 16, 2025
      If the scrub head on your Nobles Vacuum Cleaner won't lower, there are a couple of things to check: Ensure wire #47 is connected to the batteries as shown in the battery cable connection label. Also, recharge the batteries if the low voltage interrupter is activated.
  • K
    kevin50Aug 21, 2025
    What to do if I am unable to adjust the brush pressure meter in the green zone or the meter shows no reading on my Nobles Strive 9000503?
    • J
      John SawyerAug 21, 2025
      If you're unable to adjust the brush pressure meter into the green zone, or the meter displays no reading on your Nobles Vacuum Cleaner, consider these possibilities: Replace worn extractor brushes and reset the brush circuit breaker button.
  • W
    Whitney GonzalezAug 25, 2025
    Why does the scrub head continue to disperse water when using accessory tools with my Nobles Strive 9000503 Vacuum Cleaner?
    • S
      Susan FrankAug 26, 2025
      If the scrub head continues to disperse water when using accessory tools with your Nobles Vacuum Cleaner, it might be because the rear ReadySpace vacuum shoe is installed on the scrub head. Replace it with an extractor vacuum shoe.

Summary

Operation

Machine Data

User-fillable section for machine identification details.

Safety Precautions and Warnings

Essential safety guidelines, warnings, and label information.

Machine Components and Controls

Diagram of parts and explanation of control console symbols.

Installation and Setup

Procedures for uncrating, installing batteries, and preparing for cleaning.

Cleaning Technologies and Operation

Explanation of cleaning methods and operating the machine.

Electrical Systems and Maintenance

Circuit breakers, hour meter, draining, charging, and general maintenance.

Machine Handling and Storage

Procedures for jacking, transporting, and storing the machine.

Troubleshooting and Specifications

Problem-solving guide and detailed machine specifications.

Electrical Diagrams

Wiring Diagram

Detailed schematic of the machine's electrical wiring.

Ladder Diagram

Logical representation of the machine's electrical control circuits.

Parts List

Replacement Parts Overview

Parts for rollers, brushes, detergent, and vacuum shoe tool.

Battery and Charger Group

Components of the battery system and charger.

Solution Tank Group

List of parts for the solution tank assembly.

Recovery Tank Group

Components of the recovery tank system.

Control Console and Panel Groups

Parts for the control console and control panel assemblies.

Drive and Scrub Head Groups

Components for the drive system and scrub head assemblies.

Plumbing Group

List of parts for the machine's plumbing system.

Options

Low Pressure Floor Tools

Parts for 13-inch and 16-inch low pressure floor tools.

Handheld and Crevice Tools

Parts for 5-inch hand tool and 3-inch crevice tool.

Hoses and Upholstery Tool

Parts for solution/vacuum hoses and upholstery tool.

Nobles Strive 9000503 Specifications

General IconGeneral
TypeUpright
Cord TypeCorded
Model9000503
CategoryVacuum Cleaner
Power1200W
CordlessNo
Filter TypeHEPA
