OPERATION
10
Nobles Strive (09--04)
MACHINE SETUP

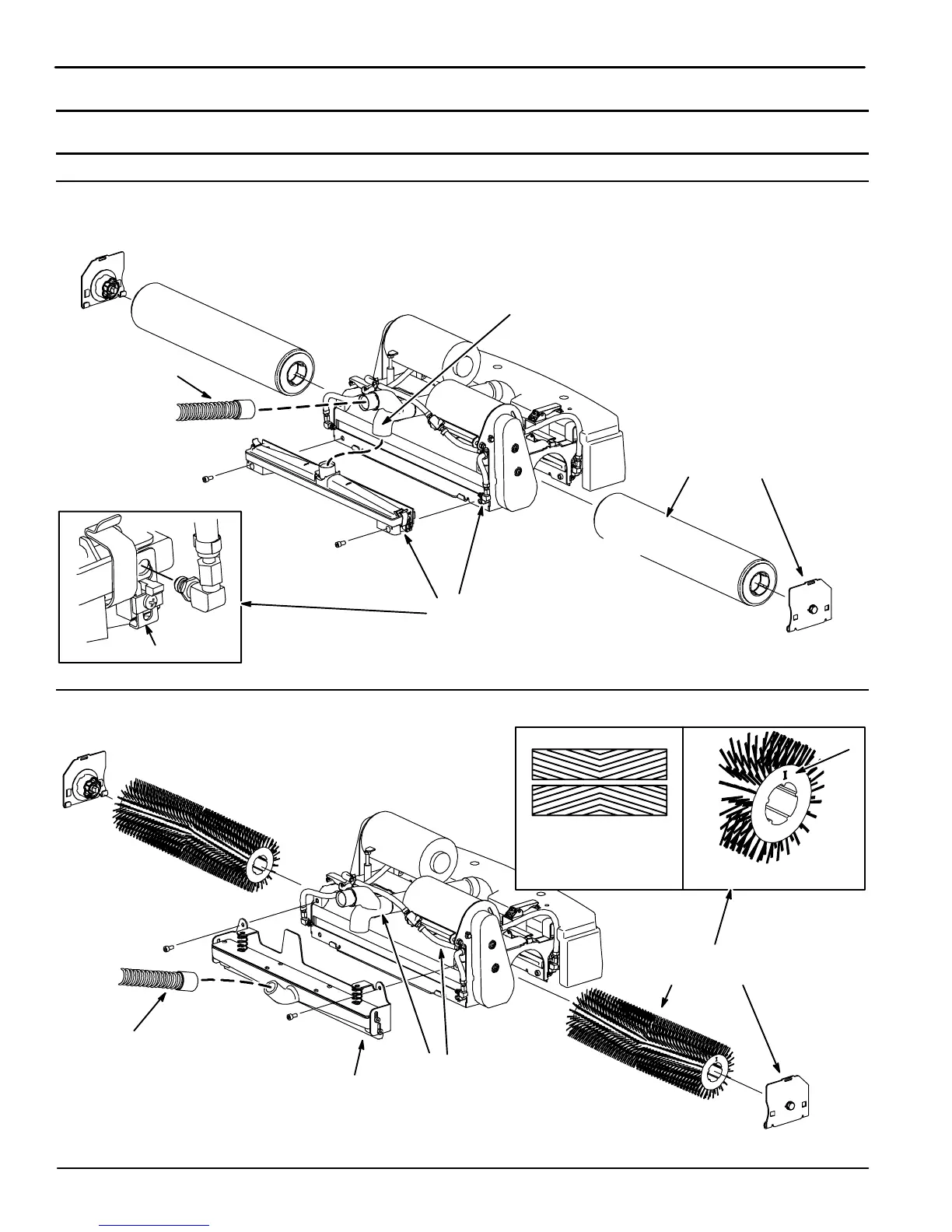

PREPARING MACHINE FOR READYSPACE CLEANING
Tool Required: 6mm Hex Head Tool (Supplied with machine).
Push Retainer Tab Upward
Step 1: Unlatch idler
plates and install rollers.
Step 2: Install rear ReadySpace
vacuum shoe to scrub head and
connect solution flush lines.
Step 4: Connect
vacuum hose to
vacuum tube as
shown.
(2) 6mm
SOCKET
HEAD CAP
SCREWS
Step 3: Connect vacuum tube to
ReadySpace vacuum shoe as shown.
IDLER PLATE
(2) READYSPACE
ROLLERS
PREPARING MACHINE FOR RESTORATIVE EXTRACTION CLEANING
Step 1: Unlatch idler
plates and install brushes.
Step 2: Install extractor
vacuum shoe to scrub
head.
Step 3: Connect
vacuum hose to
carpet extraction
vacuum shoe.
(2) 6mm
SOCKET
HEAD CAP
SCREWS
NOTE: Do not remove
vacuum tube and
solution flush lines
from scrub head.
NOTE:
“I” indicates idler plate end.
IDLER PLATE
(2) EXTRACTOR
BRUSHES
The brushes V--pattern
(chevron) should point
towards each other.
Tool Required: 6mm Hex Head Tool (Supplied with machine).
TOP VIEW
