Nobles STRIVE RIDER User Manual

STANDARD PARTS
Nobles StriveR Rider (03- 2009)
32

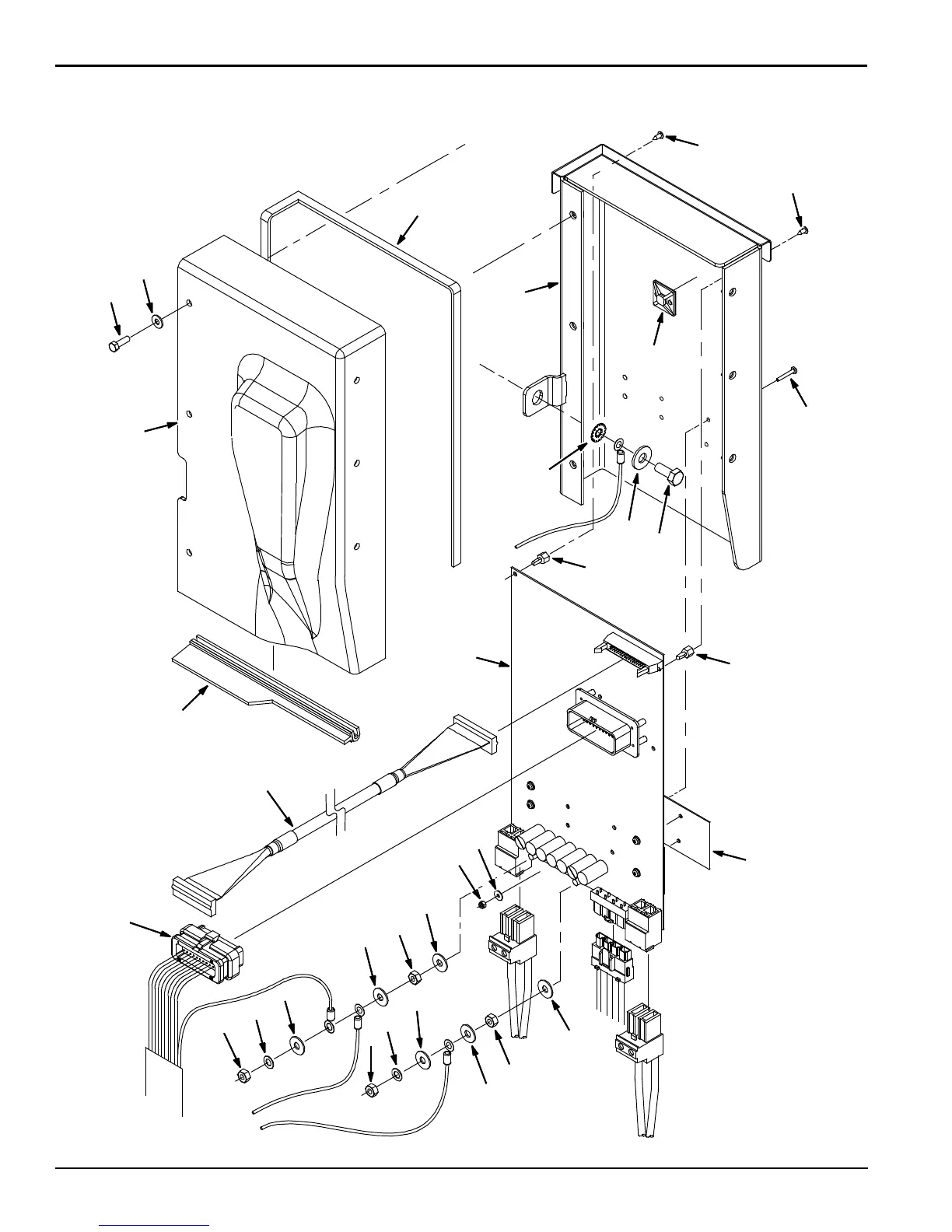

CIRCUIT BOARD GROUP
5
6
13
3
4
16
17
18
20
1
14
15
12
10
11
22
6
5
8
8
7
7
9
8
8
7
8
8
9
7
2
21
19

Nobles STRIVE RIDER Specifications

Vacuum System

vacuum fan airflow	66.5 CFM
vacuum system airflow - actual ReadySpace	48 CFM
vacuum system airflow - actual Extraction	32 CFM
vacuum motor airflow – max	70-inch/ 1780 mm
vacuum motor sealed water lift	70.5 inches

Scrubbing System

brush motor power	0.54 hp / 0.40 kW
roller/brush speed	270 rpm
down pressure ReadySpace - standard	104 lbs
down pressure ReadySpace - heavy	152 lbs
down pressure Extraction - standard	32 lbs
down pressure Extraction - heavy	84 lbs

Solution Delivery System

solution tank capacity	32 gal / 121 L
pump max rated pressure	250 psi
working pressure at spray tips ReadySpace	30 psi
working pressure at spray tips Extraction	52 psi

Recovery System

recovery tank capacity	28 gal / 106 L

Power System

battery capacity	335 AH (@20hr discharge rate)
maximum continuous run time	3.0 hours

Transport Drive System

ReadySpace propel speed - variable	150 fpm / 46 mpm
Extraction propel speed – variable	75 fpm / 23 mpm
propel speed reverse - variable	175 fpm / 53 mpm
propel motor power	1.1 hp / 0.85 kW

Productivity

theoretical max coverage - ReadySpace	13, 000 ft[2] / hr / 1, 208 m[2] / hr
estimated coverage - ReadySpace	10, 000 ft[2] / hr / 929 m[2] / hr
theoretical max coverage - Extraction	7, 500 ft[2] / hr / 697 m[2] / hr
estimated coverage - Extraction	5, 000 ft[2] / hr / 465 m[2] / hr

Weight and Dimensions

length	61.5 in / 1560 mm
width	31.5 in / 800 mm
height	52 in / 1325 mm
net weight with batteries	1225 lb / 560 kg
