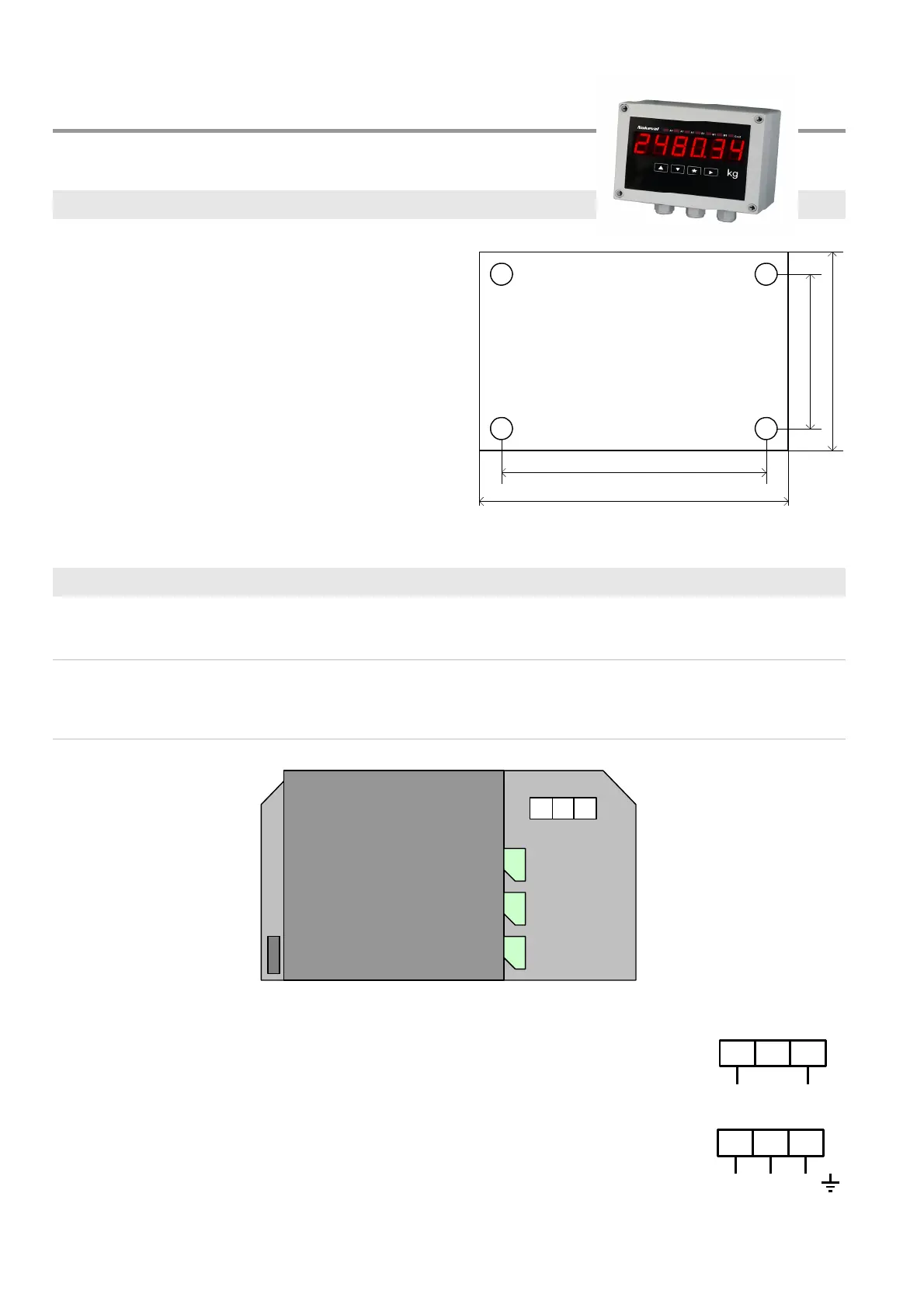

INSTALLING 2800
Mounting
First open the lid with the four plastic screws. The
four mounting holes in the corners are exposed.
Connections
Cable glands
There is three PG11 cable glands in the lower wall of the enclosure.
Power supply
In the 24VDC model the power supply is connected in the base card
terminals 7 and 9. The polarity does not matter. The connector is green.
In the 230VAC model the Live is connected in the base card terminal 7 and
the neutral to terminal 8. The protective earth is connected in terminal 9. The
connector is grey.
