INSTALLING 910E/920E
Mounting
The large panel displays are installed in a rectangular opening in the panel using the two steel
holders provided. Clip the holders in the groove and tighten the screw.

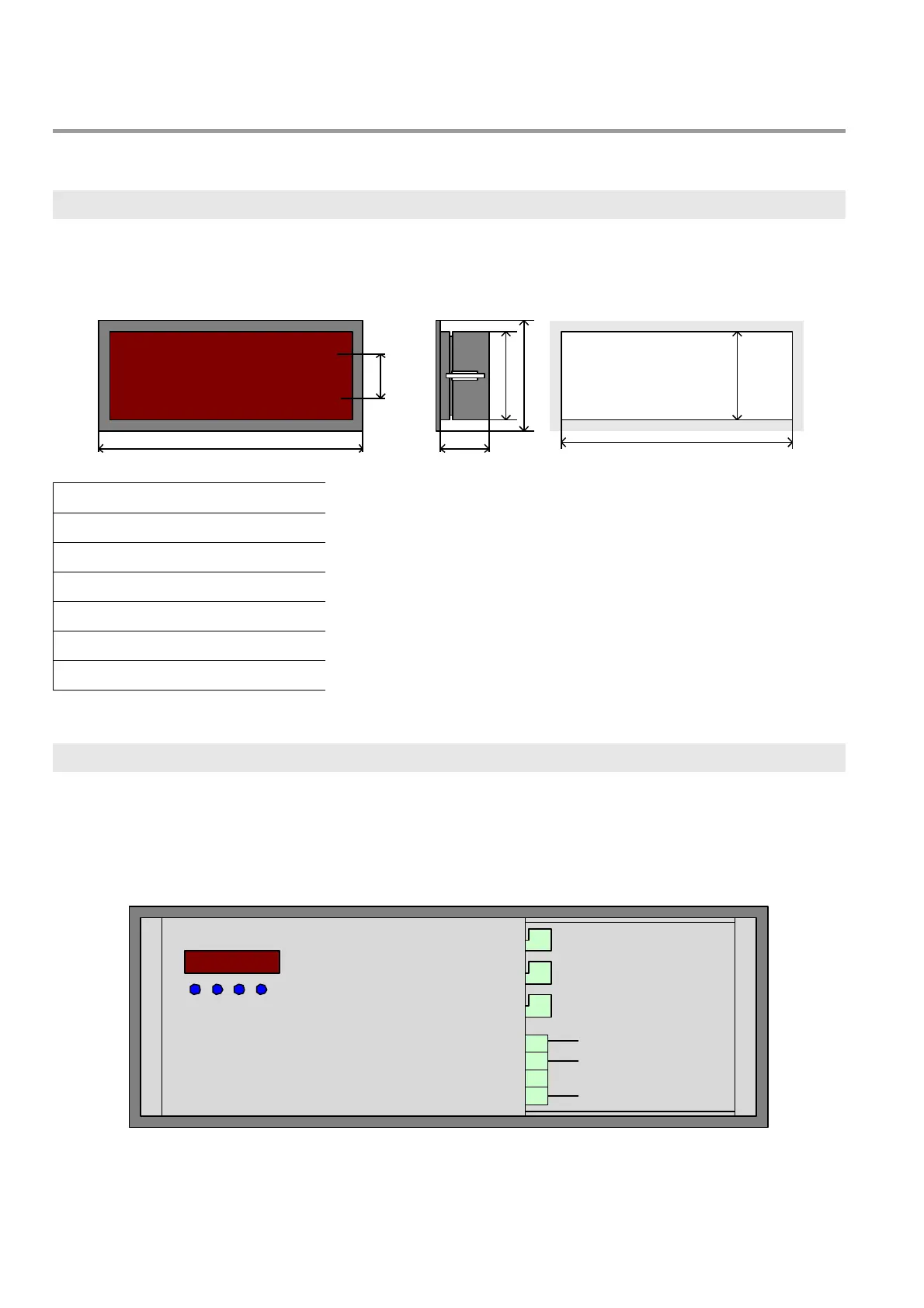

Dim 910E5 920E4 920E5
W1 303 417 507
H1 111 161 161
D2 80 80 80
H3 57 100 100
W4 291 408 498
H4 100 153 153
The opening dimensions are given for a tolerance of +2/-1 mm.
Connections
First detach the lid of the connector room on the backside of the unit. It can be recognized from
the two mouseholes in the lower edge.
The connector blocks can be detached by pulling them off. In fact they must be detached to
allow tightening the connector screws.
