Nokia 220 Service Manual

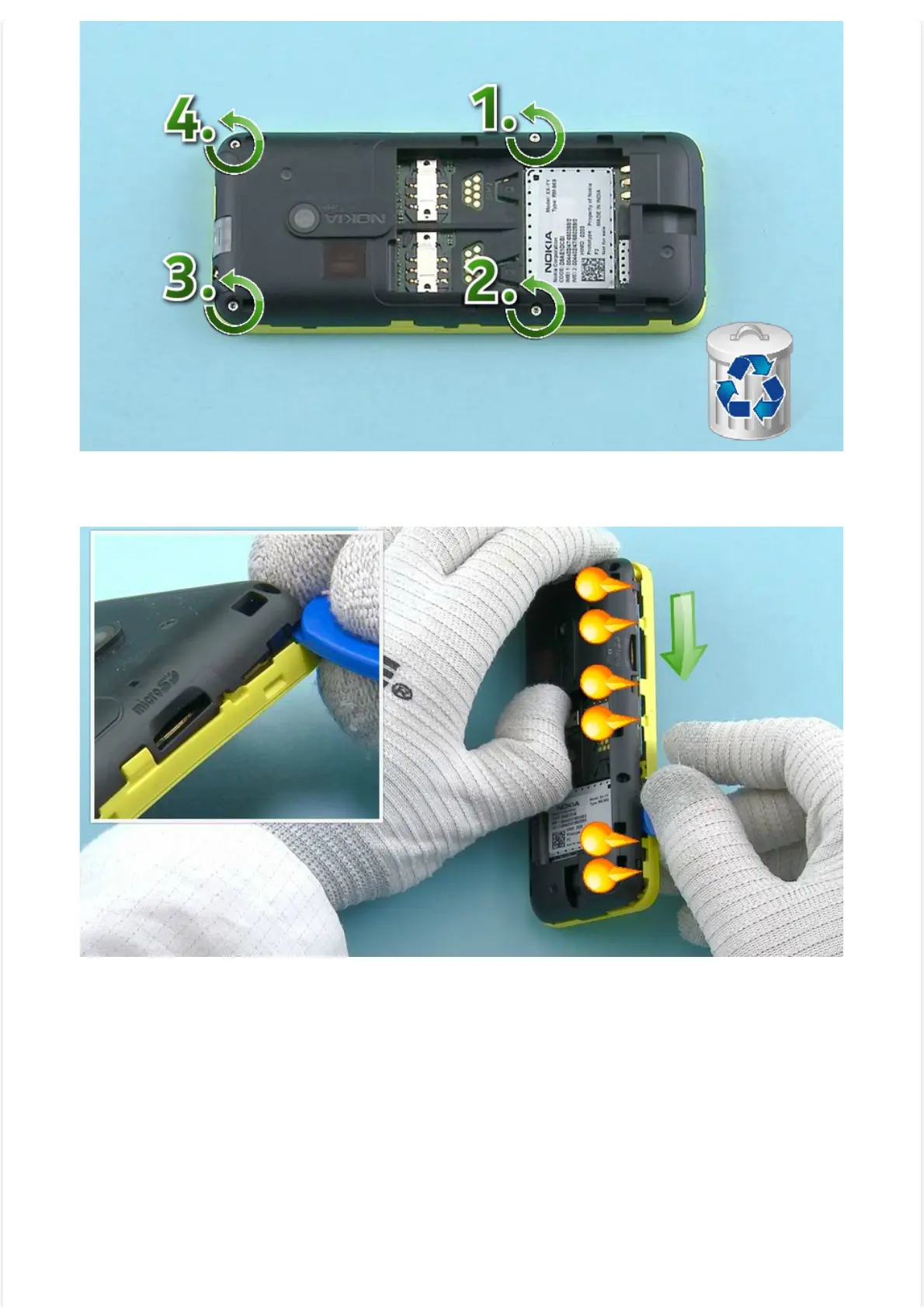

5) Unscrew the four Torx+ size 4 screws in the order shown. Do not use them again. Discard them.
6) To release the A-COVER open the shown clips with the SRT-6. Start from the top end of the device.
©2014 Nokia | Nokia Internal Use only | All Rights Reserved.

Nokia 220 Specifications

General

Rear Camera	2 MP
Network Technology	GSM
Announced	2014, February
Display Type	TFT, 256K colors
Phonebook	Yes
Call records	Yes
Video	Yes
Loudspeaker	Yes
3.5mm jack	Yes
WLAN	No
Bluetooth	3.0
Browser	WAP 2.0/xHTML
Games	Yes
Java	No
Display Size	2.4 inches
Resolution	240 x 320 pixels
SIM	Dual SIM (Mini-SIM)
2G bands	GSM 900 / 1800 - SIM 1 & SIM 2
GPRS	Yes
EDGE	Yes
Display Resolution	240 x 320 pixels
Alert types	Vibration
Radio	Stereo FM radio
USB	microUSB
Messaging	SMS, MMS
Colors	Black, White, Red, Yellow
Memory Card slot	microSD
