Nokia 2600 Service Manual

6
CONFIDENTIAL
Copyright © 2008 NOKIA. All rights reserved.
2600classic RM-340/RM-341
Page
(15) ISSUE 3
Service Manual Level 1&2
PRODUCT CONTROLS & INTERFACES OVERVIEW7.
Ver. 1.0

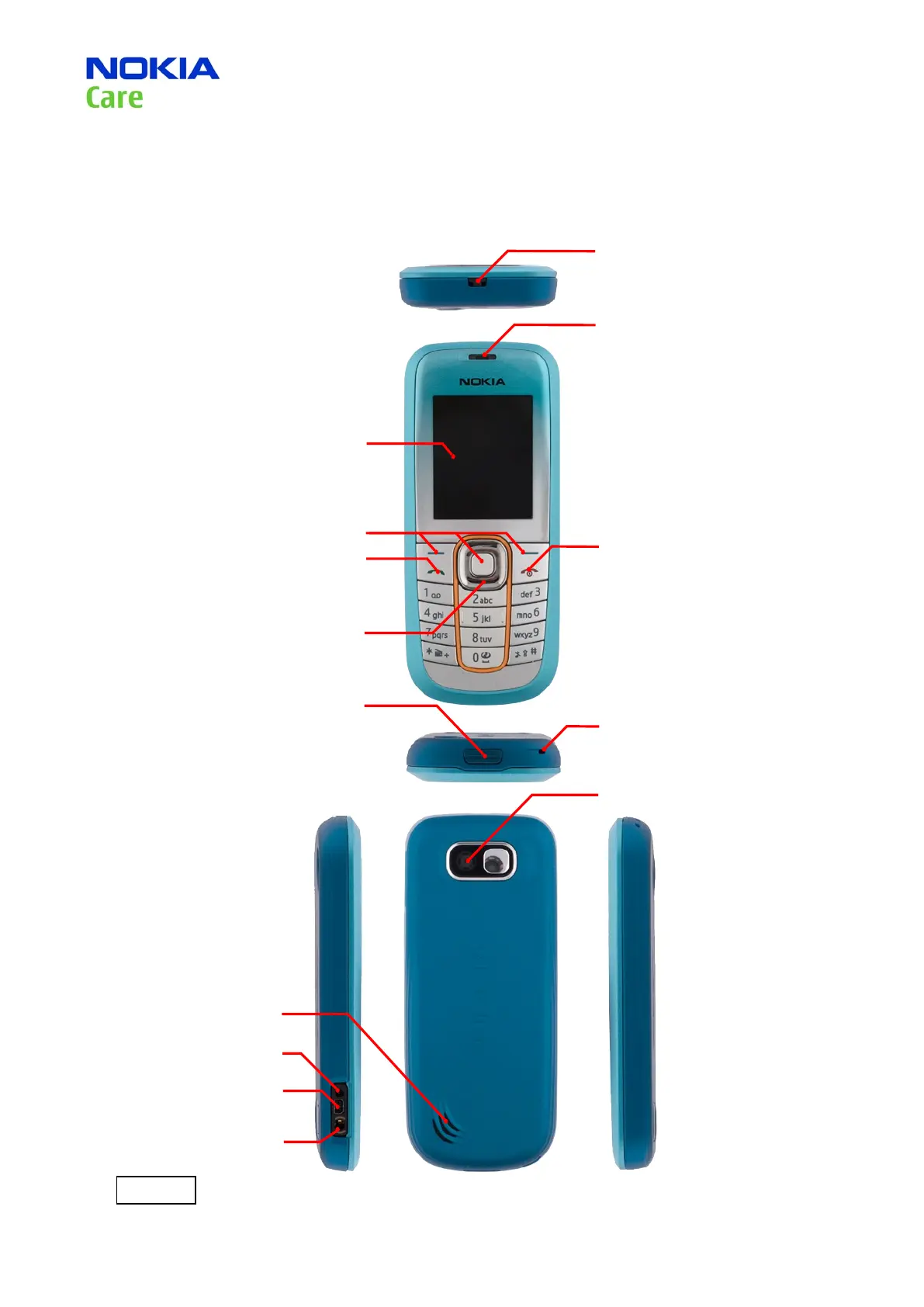

2600 classic RM-340/341 Product Controls & Interfaces
End key and
Power key
Charger connector
Headset connector
Camera lens
Call key
Earpiece
Strap eyelet
Display
Selection keys
Navi key™: Hereafter referred
to as scroll key
Release button
Microphone
Service connector:
Only for authorized
personnal
Loudspeaker

Nokia 2600 Specifications

General

Display Type	CSTN, 4096 colors
Display Size	1.5 inches
Resolution	128 x 128 pixels
Stand-by	Up to 250 h
Talk time	Up to 3 h
Network Technology	GSM
2G bands	GSM 900 / 1800
EDGE	No
Announced	2004, Q2
Status	Discontinued
SIM	Mini-SIM
Memory Card slot	No
Phonebook	200 entries
Call records	10 dialed, 10 received, 10 missed calls
Internal Memory	4 MB
Loudspeaker	Yes
Alert types	Vibration; Downloadable polyphonic ringtones
3.5mm jack	No
Messaging	SMS
Radio	No
Games	Yes
Java	No
Predictive text input	Yes
Calculator	Yes
Stopwatch	Yes
Xpress-on covers	Yes
Colors	Various
Battery Type	Removable Li-Ion battery (BL-5C)
Dimensions	107.6 x 45.9 x 20.3 mm (4.24 x 1.81 x 0.80 in)
