Nokia 2600 Service Manual

7
CONFIDENTIAL
Copyright © 2008 NOKIA. All rights reserved.
2600classic RM-340/RM-341
Page
(15) ISSUE 3
Service Manual Level 1&2
See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL.
EXPLODED VIEW8.
= only available as
assembly
Ver. 2.0
= These parts can
not be reused
after removal.

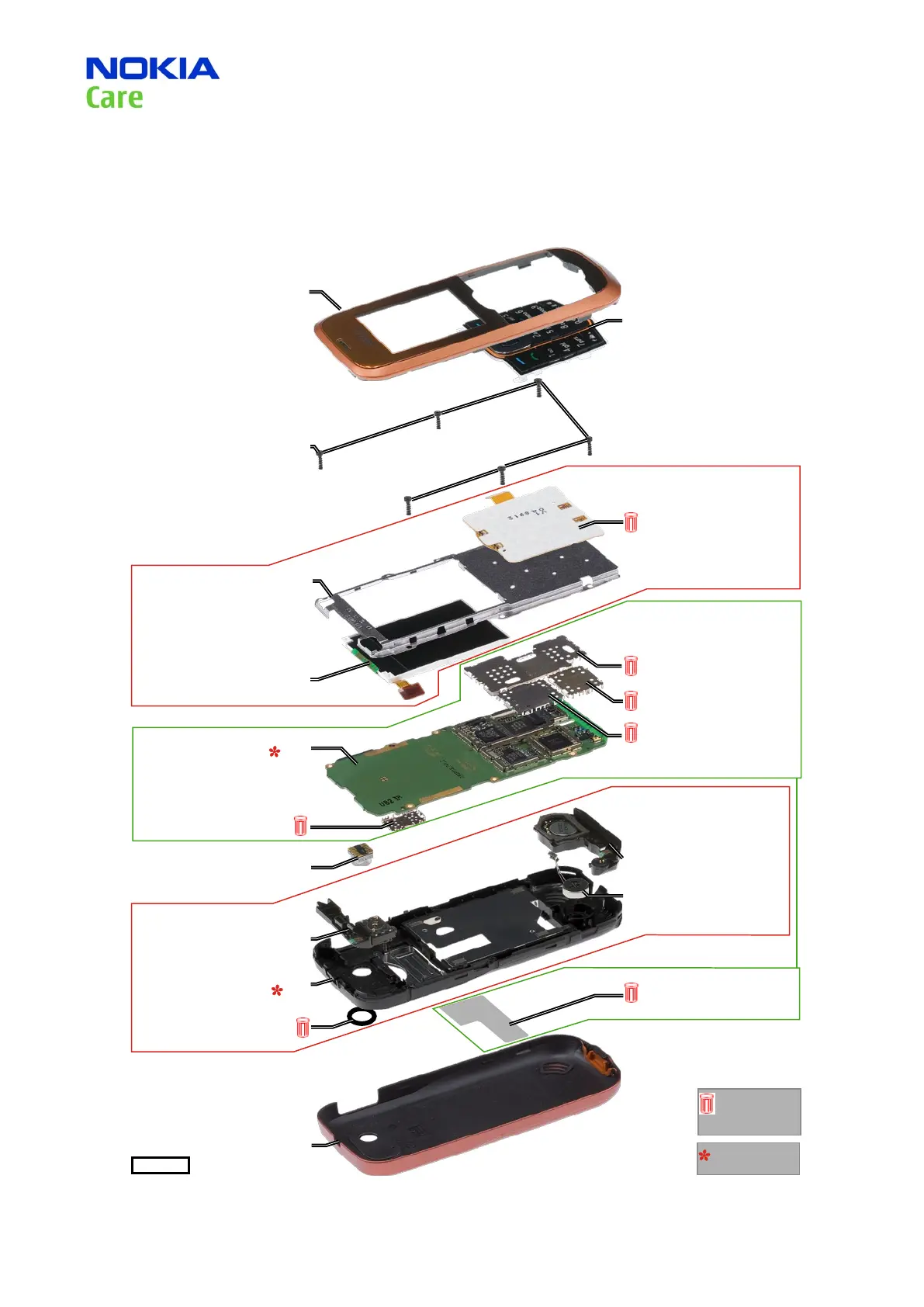

2600classic RM-340/RM-341 EXPLODED VIEW
A1=SLIDE FPC ASSY
(I004-I0006)
A3=D-COVER ASSY
(I0013-I0018)
(LEVEL 3&4 ONLY)
A2=LIGHT SWAP PACKAGE
(I0007-I0011, I0016)
(LEVEL 3&4 ONLY)
A-COVER ASSY PAINTED
I0001
KEYMAT ASSY PAINTED
I0002
KEYDOME SHEET (A1)
I0006
LIGHT SWAP (A2)
I0011
FM/BT SHIELDING LID (A2)
I0008
MONO ANTENNA ASSY EU (A3)
I0014
VIBRA-MOTOR-JENNA (A3)
I0015
TYPE LABEL (A2)
(LEVEL 3&4 ONLY)
I0016
LID BB (A2)
I0009
FEM LID (A2)
I0010
LID RF (A2)
I0007
6xSCREW M1.4x5
I0003
LCD FRAME (A1)
I0004
BENGAL LCD (A1)
I0005
CAMERA MODULE SMIA65 VGA
I0012
CAMERA GASKET (A3)
I0018
B-COVER ASSY PAINTED
I0019
IFA ANTENNA MODULE (EU) (A3)
I0013
D-COVER BLACK (A3)
I0017

Nokia 2600 Specifications

General

Display Type	CSTN, 4096 colors
Display Size	1.5 inches
Resolution	128 x 128 pixels
Stand-by	Up to 250 h
Talk time	Up to 3 h
Network Technology	GSM
2G bands	GSM 900 / 1800
EDGE	No
Announced	2004, Q2
Status	Discontinued
SIM	Mini-SIM
Memory Card slot	No
Phonebook	200 entries
Call records	10 dialed, 10 received, 10 missed calls
Internal Memory	4 MB
Loudspeaker	Yes
Alert types	Vibration; Downloadable polyphonic ringtones
3.5mm jack	No
Messaging	SMS
Radio	No
Games	Yes
Java	No
Predictive text input	Yes
Calculator	Yes
Stopwatch	Yes
Xpress-on covers	Yes
Colors	Various
Battery Type	Removable Li-Ion battery (BL-5C)
Dimensions	107.6 x 45.9 x 20.3 mm (4.24 x 1.81 x 0.80 in)
