SERVICE DEVICES10.

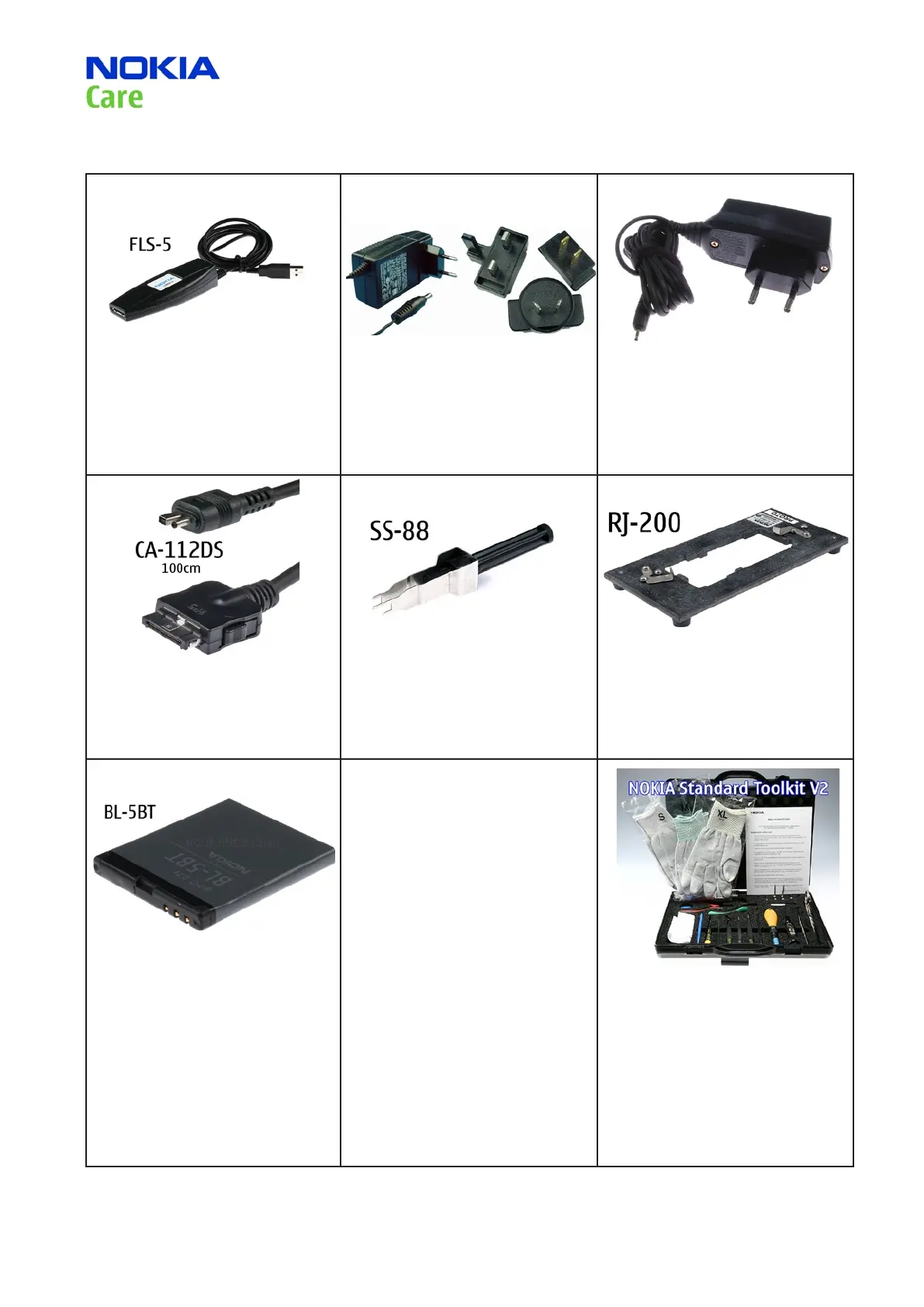

FLS-5 incl. ACF-8, Driver and User
Guide
Dongle and flash device incorporated
into one package, developed specifi-
cally for POS use.
ACF-8
Universal Power Supply is used to
power FLS-5.
Travel Charger AC-4
Small and lightweight charger for
fast charging of your phone battery.
CA-112DS
Service Cable to connect the PC with
the Easy Flash II connector.
SS-88
Camera removal tool. One side is for
disassembly, the other side for as-
sembly.
RJ-200
Soldering Jig
0772040
NMP Standard Toolkit (V2)
For more informations refer to the
Service Bulletin (SB-011) on NOKIA On-
line.
Supplier or manufacturer contacts for
tool re-order can be found in “Recom-
mended service equipment” docu-
ment on NOKIA Online.
Internal Battery BL-5BT
Inserted under the back cover, this
Li-Ion battery provides power in a
lightweight package.

Nokia 2600 Specifications

General

Display Type	CSTN, 4096 colors
Display Size	1.5 inches
Resolution	128 x 128 pixels
Stand-by	Up to 250 h
Talk time	Up to 3 h
Network Technology	GSM
2G bands	GSM 900 / 1800
EDGE	No
Announced	2004, Q2
Status	Discontinued
SIM	Mini-SIM
Memory Card slot	No
Phonebook	200 entries
Call records	10 dialed, 10 received, 10 missed calls
Internal Memory	4 MB
Loudspeaker	Yes
Alert types	Vibration; Downloadable polyphonic ringtones
3.5mm jack	No
Messaging	SMS
Radio	No
Games	Yes
Java	No
Predictive text input	Yes
Calculator	Yes
Stopwatch	Yes
Xpress-on covers	Yes
Colors	Various
Battery Type	Removable Li-Ion battery (BL-5C)
Dimensions	107.6 x 45.9 x 20.3 mm (4.24 x 1.81 x 0.80 in)
