12
CONFIDENTIAL
Copyright © 2007 NOKIA. All rights reserved.
2660 RM-292/RM-293
Page (30) ISSUE 1
Service Manual Level 1&2

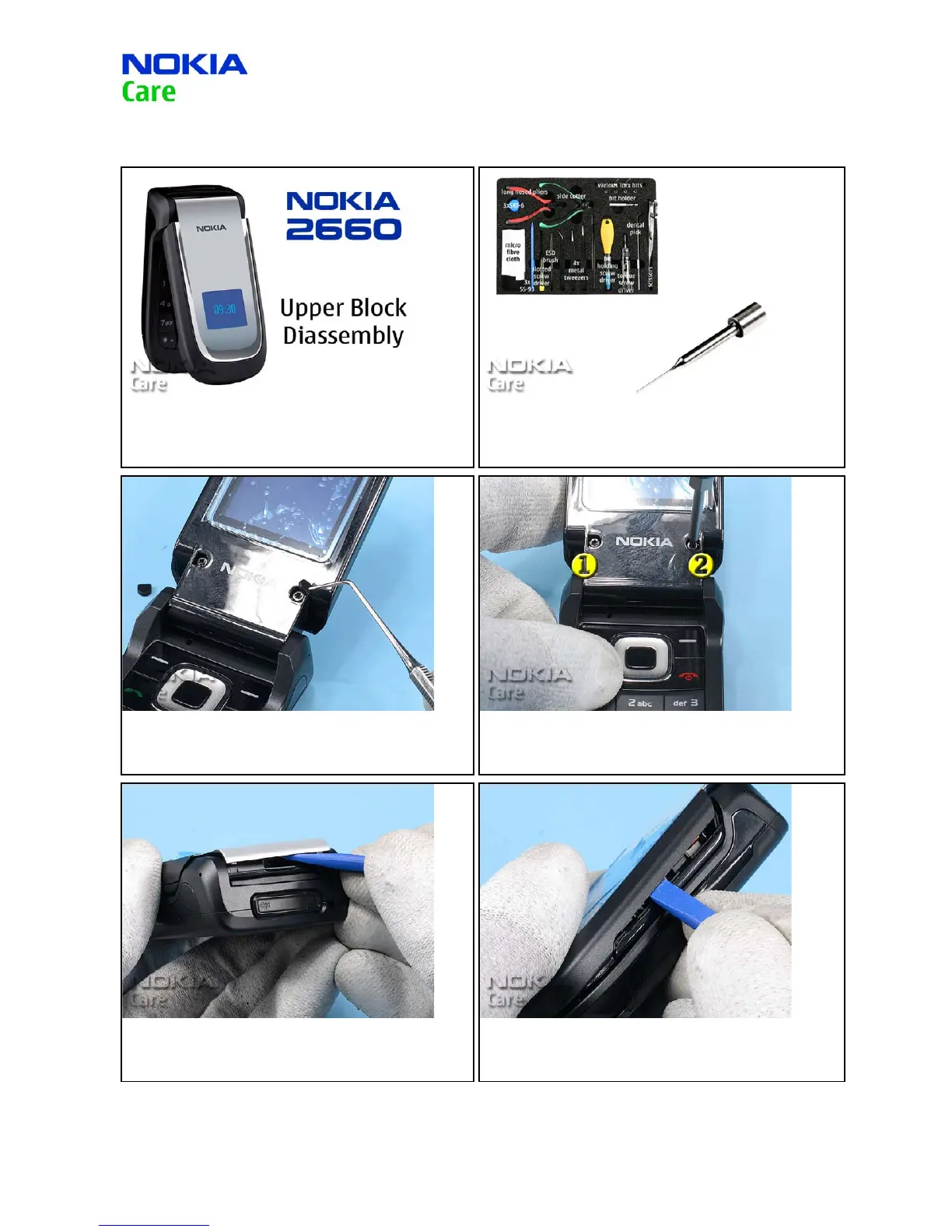

UPPER BLOCK DISASSEMBLY13.
1. Nokia 2660 Upper Block Disassembly.
2. You will need the Nokia Standard Toolkit version 2 as well as
the hinge opening tool SS-6. Also refer to the General Mechanical
Guideline Video for additional hints about the tools and
component handling.
3. Remove the battery if inserted. Cover all sensitive surfaces
with the protective lm. Remove the SCREW COVER and discard
them.
4. Unscrew the two screws in the order shown and discard them.
5. Unlock the A-COVER ASSY with the SS-93 starting at the
hinge side.
6. Release the snaps on the right side of the upper block.
To Next Page
