18
CONFIDENTIAL
Copyright © 2007 NOKIA. All rights reserved.
2660 RM-292/RM-293
Page (30) ISSUE 1
Service Manual Level 1&2

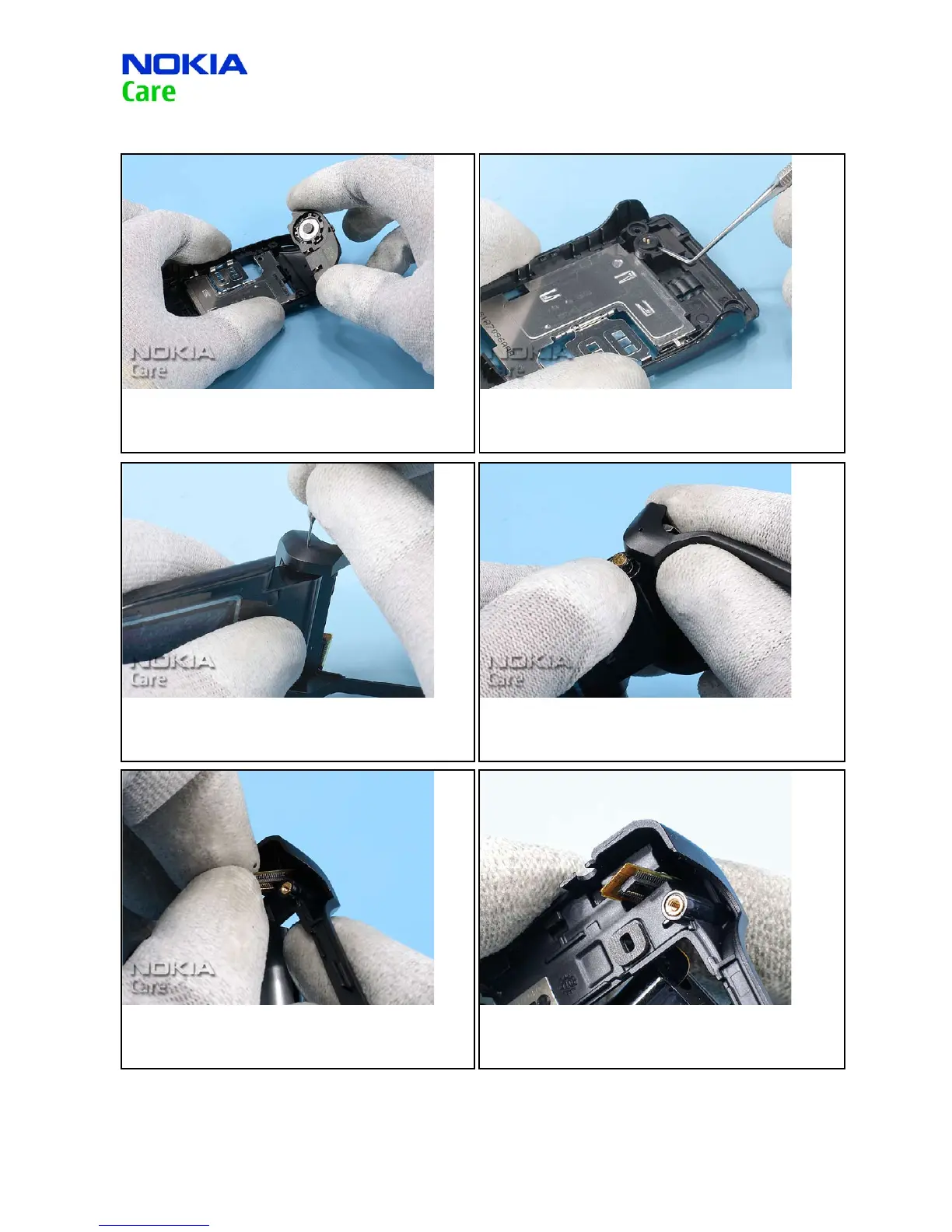

13. ...and remove it from the D-COVER.
14. Remove the MICROPHONE.
15. Insert the hinge opening tool into the hole of the HINGE as
shown and carefully unlock the HINGE MODULE.
16. Gently open the Hinge but do not separate the parts yet.
17. Carefully move the PWB FLEX into the hole of the C-COVER...
18. ... as shown in the picture.
