Nokia 2680 slide Service Manual

2680 Slide RM-392, RM-393
Service Manual Level 1&2
ISSUE 1
Confidential
Copyright @ 2008 NOKIA. All rights reserved.
10

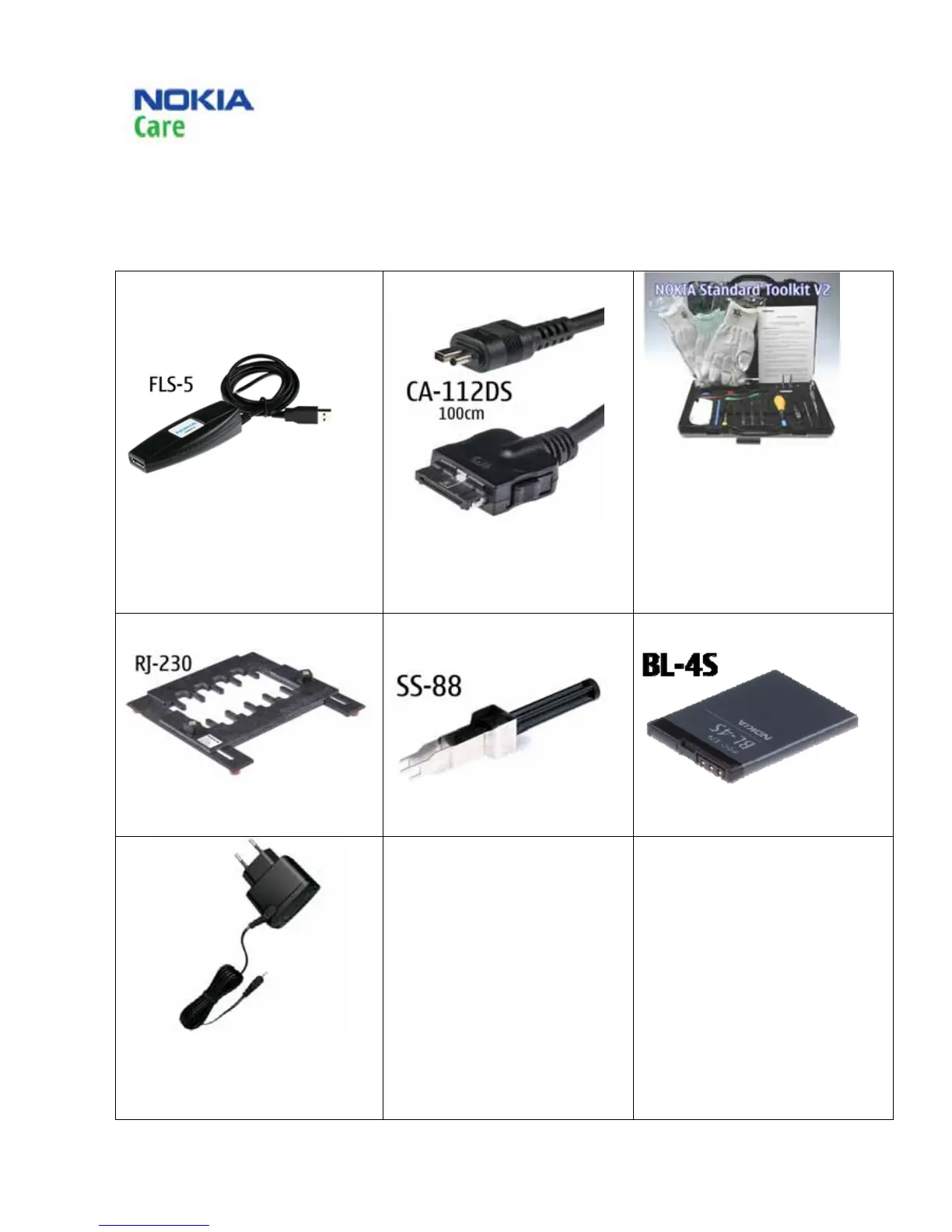

8. SERVICE DEVICES
FLS-5 POS flash device
CA-112DS cable
NMP standard toolkit (v2)
For more information, refer to the
Service Bulletin (SB-011) on NOKIA
Online. Supplier or manufacturer
contacts for tool re-order can be found
in “Recommended service equipment”
document on NOKIA Online
RJ-230 Universal soldering jig
SS-88 Camera removal tool BL-4S Battery
AC-3 Travel charger
(AC-6C and CA-100 for China)

Nokia 2680 slide Specifications

General

Display type	TFT
Display resolution	128 x 160 pixels
Display number of colors	65536 colors
Internal memory	32 MB
Rear camera	Yes
Rear camera resolution	640 x 480 pixels
Networking type	EGSM/GSM
Operating frequency	850/900/1800/1900 MHz
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Ringer type	Polyphonic
Form factor	Slider
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Notes, Stopwatch, To-do list
Product color	Pink
Battery type	BL-4S
Talk time (2G)	3.43 h
Battery capacity	860 mAh
Standby time (2G)	419 h
Bluetooth version	2.0+EDR
Data network	EDGE, GPRS

Weight and Dimensions

Depth	47 mm
Width	99 mm
Height	15.5 mm
Weight	75.7 g
