Nokia 2680 slide - Network Services and Features

2680 Slide RM-392, RM-393
Service Manual Level 1&2
ISSUE 1
Confidential
Copyright @ 2008 NOKIA. All rights reserved.
12

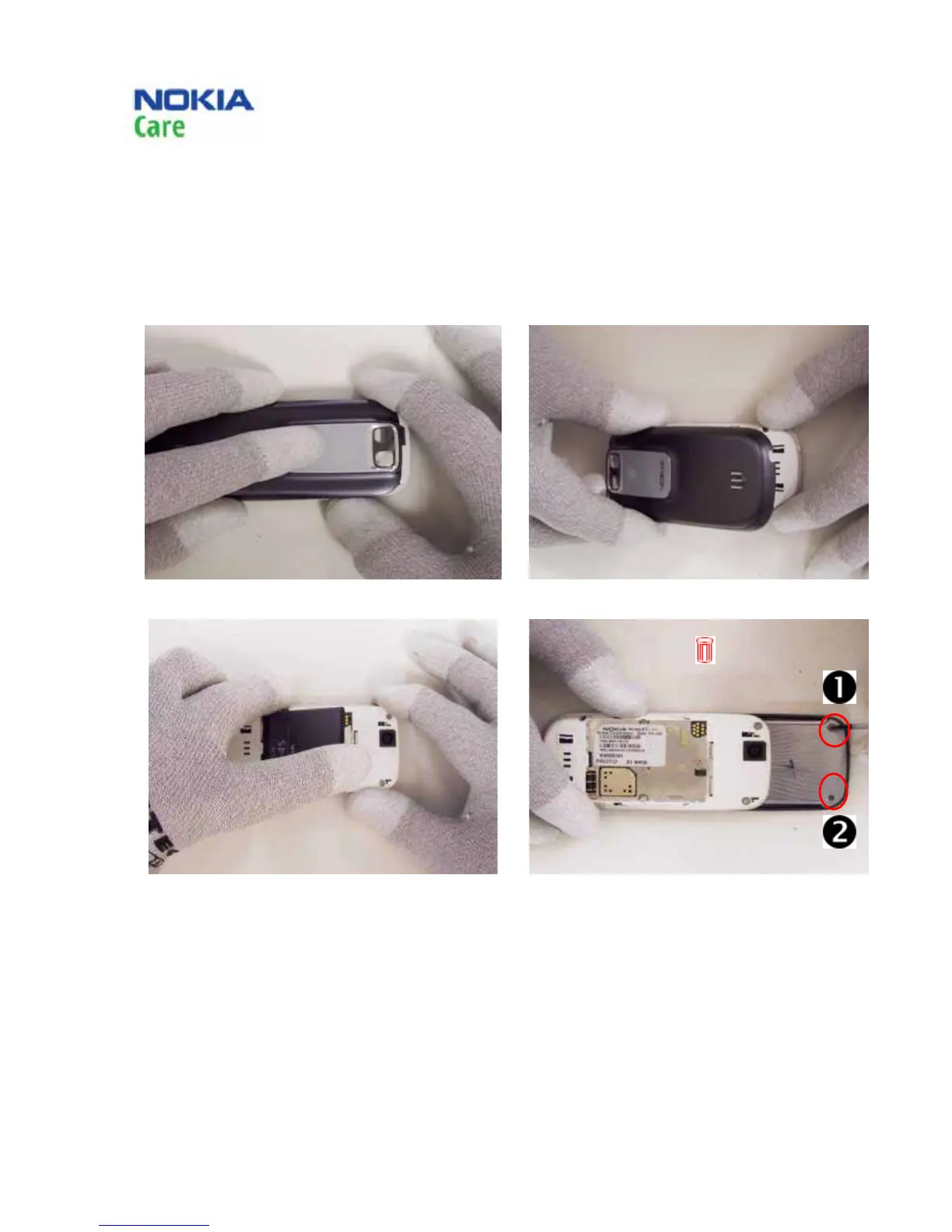

10. DISASSEMBLY INSTRUCTION
1) Slide the battery cover down. 2) Lift and and remove the battery cover.
3) Lift and remove the battery. 4) Use the #4 TORX screwdriver to remove the 2
screws in the order shown. Discard the screws.
