Nokia 3650 Service Manual

nokia
CONNECTING PEOPLE
PAGE 10 (27) Approval 4.0
Nokia Mobile Phones Customer Care EMEA
DJk
Technical Services, Repair Concepts Confidential 11.11.2003
6. SERVICE TOOLS

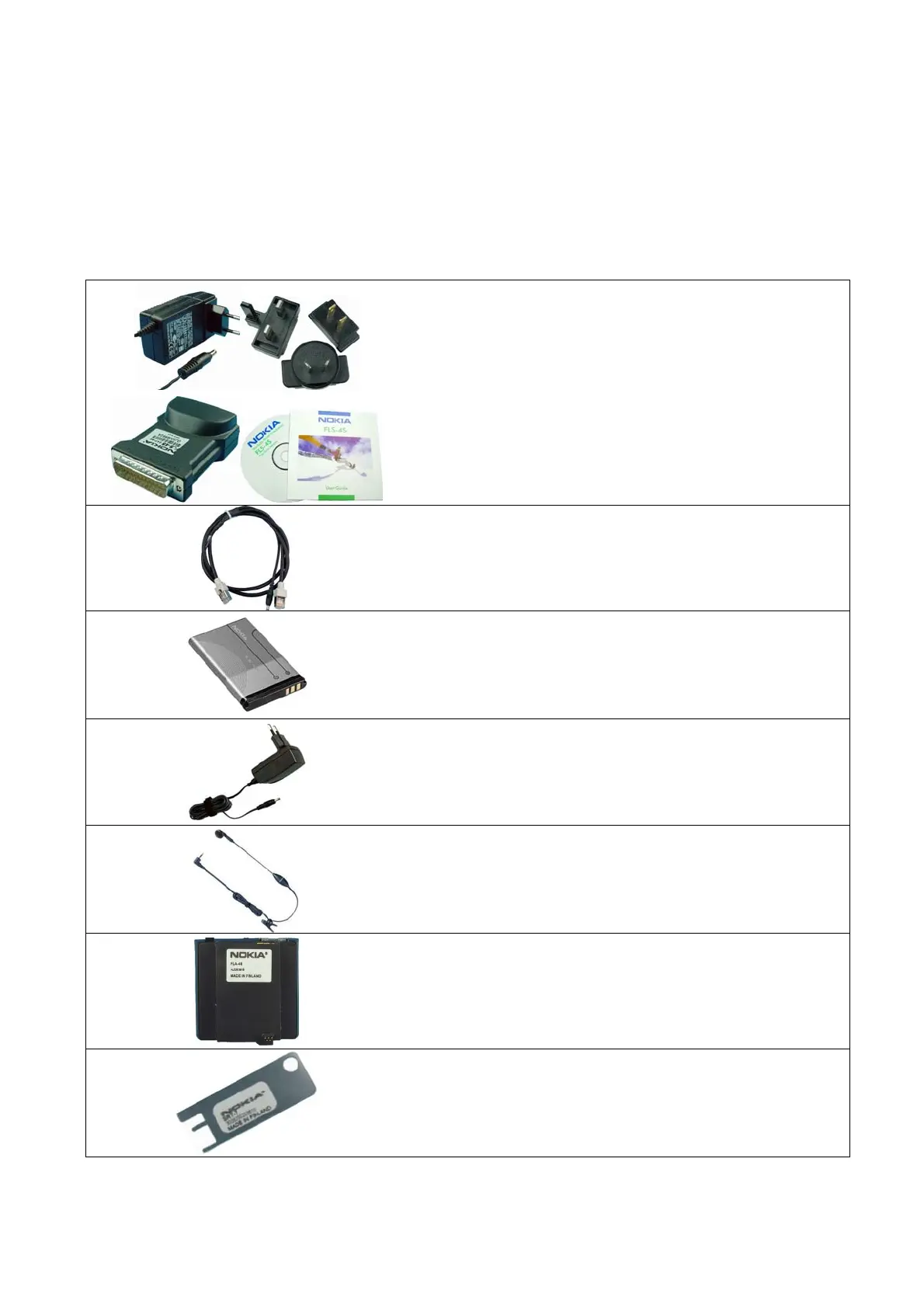

ACF-8
Universal Power Supply is used to power FLS-4S.
FLS-4S incl. Driver and User Guide
is a dongle and flash device incorporated into one package,
developed specifically for POS use.
XCS-1
Service Cable is used to connect FLS-4S to FLA-48.
Internal Battery BL-5C
Inserted under the back cover, this Li-ion battery provides
power in a lightweight package.
Travel Charger ACP-8E/ACP-8X
Lightweight multi-voltage charger for charging your phone
battery.
Headset HDC-5
An easy and convenient handsfree solution with remote
control.
FLA-48
POS Flash Adapter is used in POS (Point of Sales)
environment for software updating. It provides controlled
supply voltage and necessary connections between the
phone and the Flash Device. It substitutes for the phone’s
standard battery during the software update.
SRT-7
Camera removal tool.
Service Manual 3650 / 3660 Level 1&2 Copyright 2003 © Nokia Corporation

Nokia 3650 Specifications

General

Display Type	TFT, 4096 colors
Display Size	2.1 inches
Resolution	176 x 208 pixels
Internal Storage	4 MB
Card Slot	MMC
Video	Yes
Battery Type	Removable Li-Ion 850 mAh battery (BL-5C)
Dimensions	130 x 57 x 26 mm
Weight	130 g
Status	Discontinued
Network	GSM 900 / 1800 / 1900
EDGE	No
SIM	Mini-SIM
Downloadable themes	Yes
Phonebook	Yes
Call records	Yes
Alert types	Vibration; Downloadable polyphonic ringtones
Loudspeaker	Yes
3.5mm jack	No
WLAN	No
Bluetooth	Yes
GPS	No
Radio	No
USB	Pop-Port
Messaging	SMS, MMS, Email
Java	Yes, MIDP 1.0
Predictive text input	Yes
Organizer	Yes
Infrared port	Yes
Talk time	Up to 4 h
Operating System	Symbian OS v6.1, Series 60 v1.0 UI
Main Camera	VGA
Announced	2002, September
GPRS	Class 4
Browser	WAP 1.2.1, XHTML
Games	Yes
Colors	Blue
CPU	104 MHz ARM 9
