Nokia 3650 Service Manual

nokia
CONNECTING PEOPLE
PAGE 21 (27) Approval 4.0
Nokia Mobile Phones Customer Care EMEA
DJk
Technical Services, Repair Concepts Confidential 11.11.2003

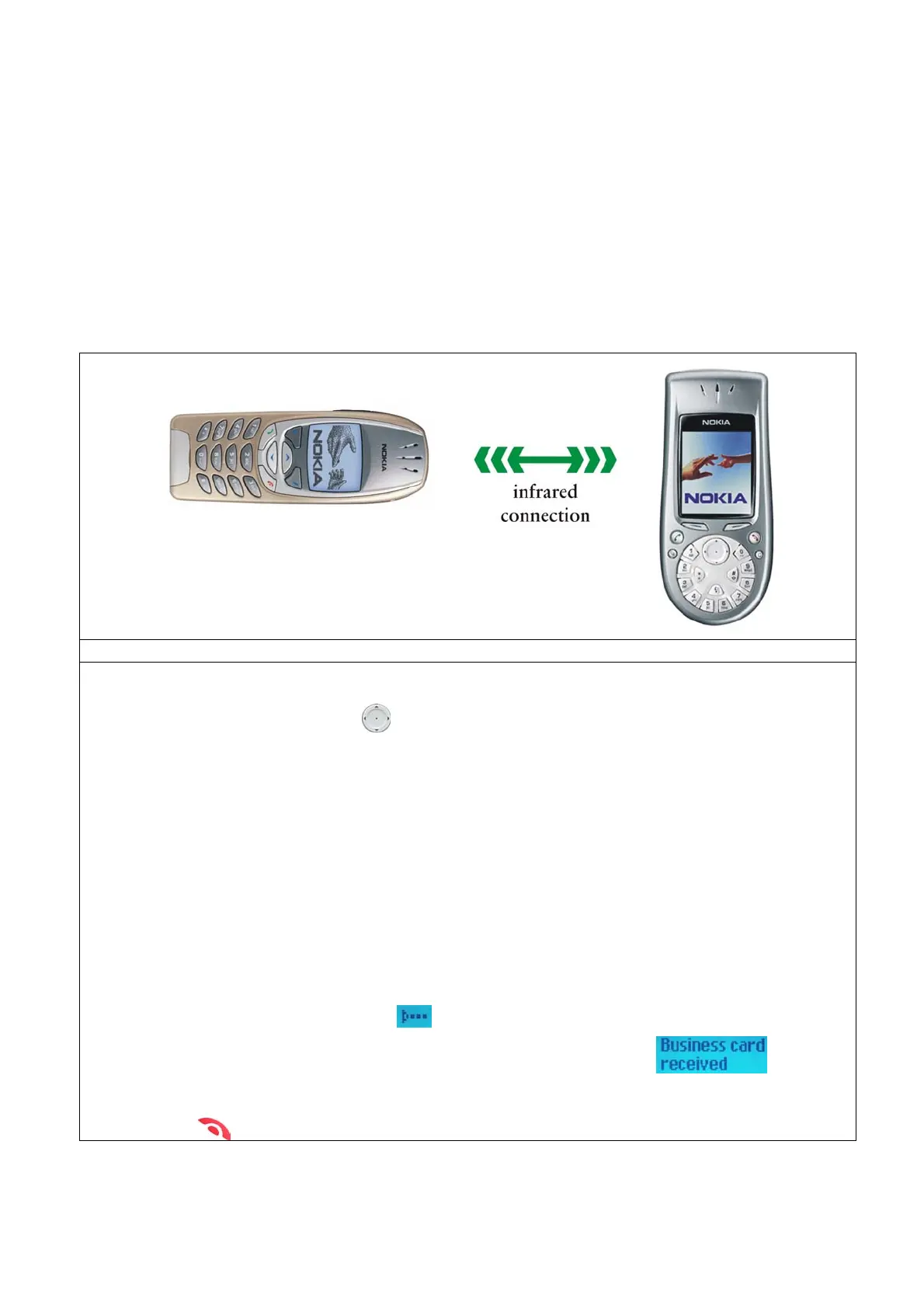

15. INFRARED GONOGO TEST
You need another infrared device (e.g. 6310i) to do a GoNoGo test. The infrared windows of the
devices must be directed to each other and should have a distance of approximate 15 cm. Make
sure that infrared is activated in receiver device.
Warning: Do not point the IR (infrared) beam at anyone’s eye or allow it to interfere with other
IR devices. This device is a Class 1 Laser product.
Reference unit Test unit
Settings on the test unit:
o From Home Menu, select key. This displays Contacts entries. If phone and SIM
memory is empty, create one new entry.
o Choose one phonebook entry.
o Select Options
o Select Send
o Select Via infrared
o Press OK for Selected detail only (optional).
o You get this message Connecting via infrared.
o If sending of business card fails and you get message Unable to connect, make
sure again, that infrared windows are directed to each other and infrared is
activated in reference device
.
Then try again sending.
o Test is successful, if you get this message on receiver device .
o You will get a confirmation on sender device, too.
o Press for Home Menu.
Service Manual 3650 / 3660 Level 1&2 Copyright 2003 © Nokia Corporation

Nokia 3650 Specifications

General

Display Type	TFT, 4096 colors
Display Size	2.1 inches
Resolution	176 x 208 pixels
Internal Storage	4 MB
Card Slot	MMC
Video	Yes
Battery Type	Removable Li-Ion 850 mAh battery (BL-5C)
Dimensions	130 x 57 x 26 mm
Weight	130 g
Status	Discontinued
Network	GSM 900 / 1800 / 1900
EDGE	No
SIM	Mini-SIM
Downloadable themes	Yes
Phonebook	Yes
Call records	Yes
Alert types	Vibration; Downloadable polyphonic ringtones
Loudspeaker	Yes
3.5mm jack	No
WLAN	No
Bluetooth	Yes
GPS	No
Radio	No
USB	Pop-Port
Messaging	SMS, MMS, Email
Java	Yes, MIDP 1.0
Predictive text input	Yes
Organizer	Yes
Infrared port	Yes
Talk time	Up to 4 h
Operating System	Symbian OS v6.1, Series 60 v1.0 UI
Main Camera	VGA
Announced	2002, September
GPRS	Class 4
Browser	WAP 1.2.1, XHTML
Games	Yes
Colors	Blue
CPU	104 MHz ARM 9
