Nokia 3650 Service Manual

nokia
CONNECTING PEOPLE
PAGE 25 (27) Approval 4.0
Nokia Mobile Phones Customer Care EMEA
DJk
Technical Services, Repair Concepts Confidential 11.11.2003

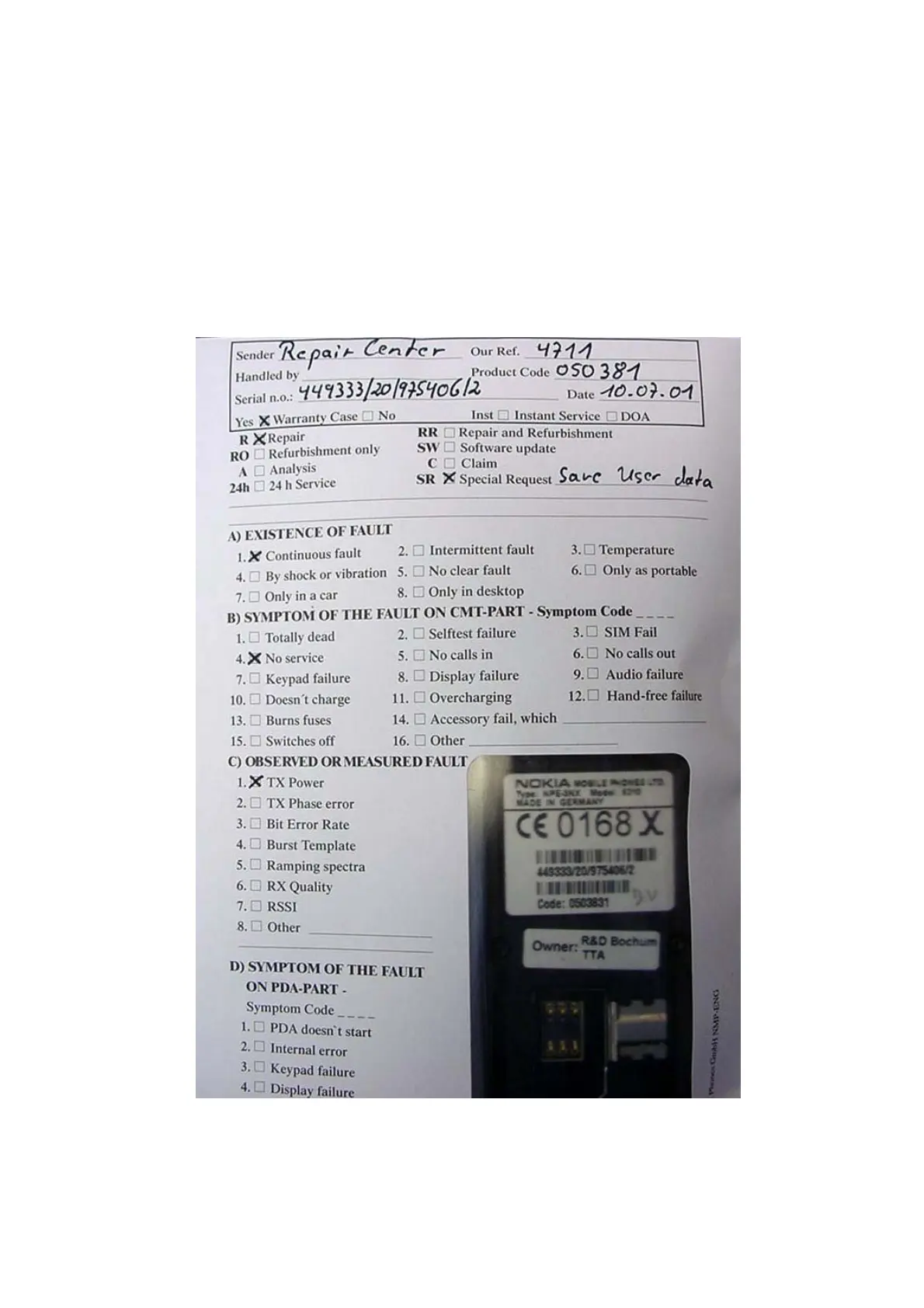

20. SERVICE NOTES
We recommend using Service Notes when shipping phones to other Service Partners. It prevents the
product from scratches, it is ESD-neutral and has the possibility to give valuable feedback of the fault
symptom through a structured form. Please refer to the document Service Notes for faulty NMP
transceiver on Partner Web Site to get further information.
Service Manual 3650 / 3660 Level 1&2 Copyright 2003 © Nokia Corporation

Nokia 3650 Specifications

General

Display Type	TFT, 4096 colors
Display Size	2.1 inches
Resolution	176 x 208 pixels
Internal Storage	4 MB
Card Slot	MMC
Video	Yes
Battery Type	Removable Li-Ion 850 mAh battery (BL-5C)
Dimensions	130 x 57 x 26 mm
Weight	130 g
Status	Discontinued
Network	GSM 900 / 1800 / 1900
EDGE	No
SIM	Mini-SIM
Downloadable themes	Yes
Phonebook	Yes
Call records	Yes
Alert types	Vibration; Downloadable polyphonic ringtones
Loudspeaker	Yes
3.5mm jack	No
WLAN	No
Bluetooth	Yes
GPS	No
Radio	No
USB	Pop-Port
Messaging	SMS, MMS, Email
Java	Yes, MIDP 1.0
Predictive text input	Yes
Organizer	Yes
Infrared port	Yes
Talk time	Up to 4 h
Operating System	Symbian OS v6.1, Series 60 v1.0 UI
Main Camera	VGA
Announced	2002, September
GPRS	Class 4
Browser	WAP 1.2.1, XHTML
Games	Yes
Colors	Blue
CPU	104 MHz ARM 9
