5000 RM-362/RM-363
Page (14) ISSUE 1
Service Manual Level 1&2
PRODUCT CONTROLS & INTERFACES OVERVIEW7.
1
13
14
11
12
10
7
8
2
3
4
5
9
6
15
5000 RM-362/RM-363

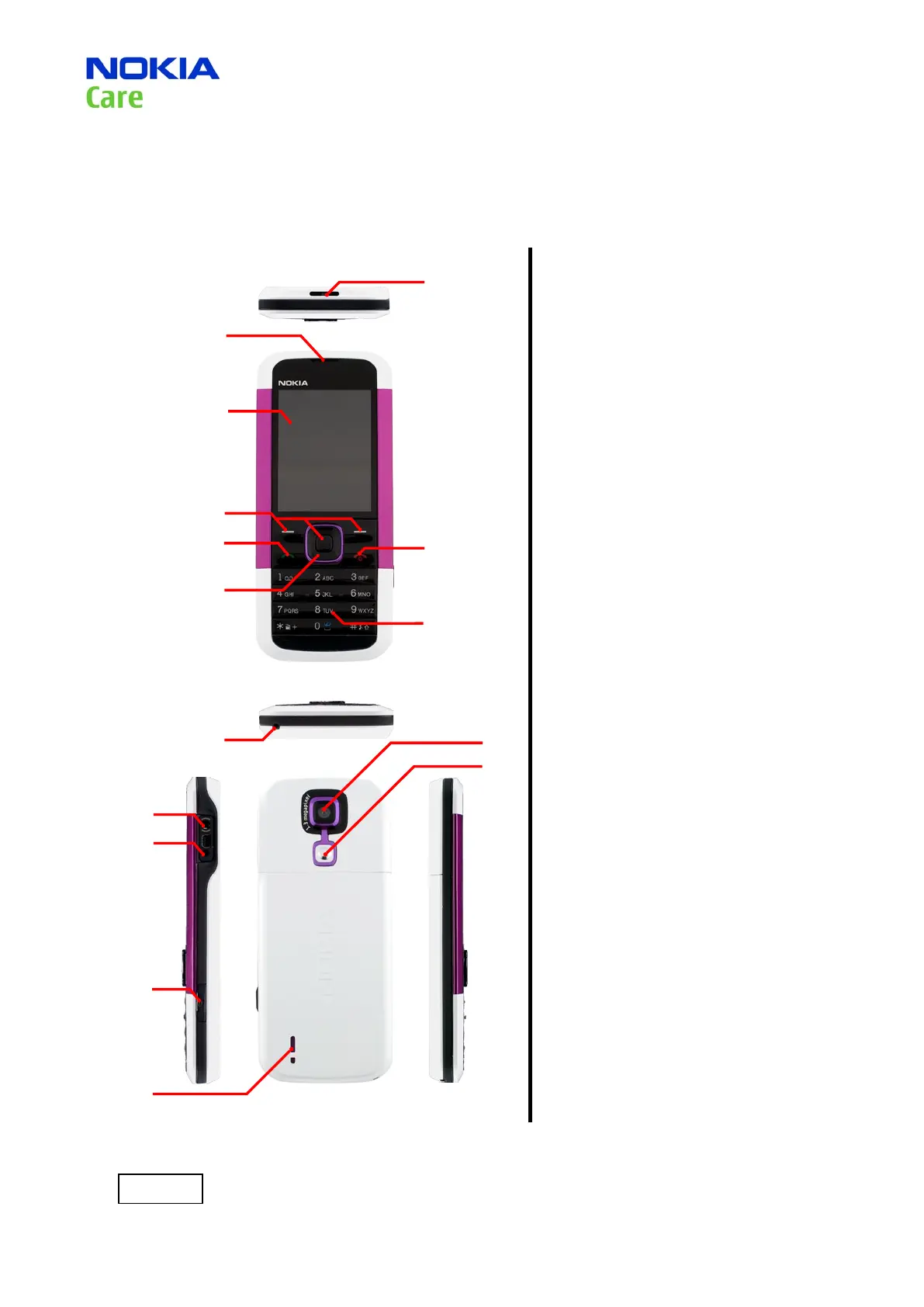

Product Controls & Interfaces
Ver. 1.0
1
2
― Headset connector
3
― Earpiece
4
― Selection keys
5
― Call key
― Display
6
7
― Mirror
8
― Microphone
9
― Navi™ key. Hereinafter referred to as the
scroll key.
10
11
― Camera key
12
― End key and power key
13
14
― Loudspeaker
― Numeric keymat
― Camera lens
― Charger connector
15
― Strap eyelet

Nokia 5000 Specifications

General

Internal Memory	12 MB
Weight	74 g (2.61 oz)
Network Technology	GSM
GPRS	Class 10
Released	2008, July
Status	Discontinued
SIM	Mini-SIM
Video	Yes
Loudspeaker	Yes
3.5mm jack	No
WLAN	No
Browser	WAP 2.0/xHTML
Games	Yes + Downloadable
Java	Yes, MIDP 2.0
Resolution	240 x 320 pixels (~200 ppi pixel density)
Dimensions	106 x 46 x 11.1 mm (4.17 x 1.81 x 0.44 in)
2G bands	GSM 900 / 1800 / 1900
Alert types	Vibration, MP3 ringtones
Bluetooth	v2.0, A2DP
Radio	Stereo FM radio, RDS
USB	v2.0
Messaging	SMS, MMS, Email
