5000 RM-362/RM-363
Page (14) ISSUE 1
Service Manual Level 1&2
DISASSEMBLY INSTRUCTION12.

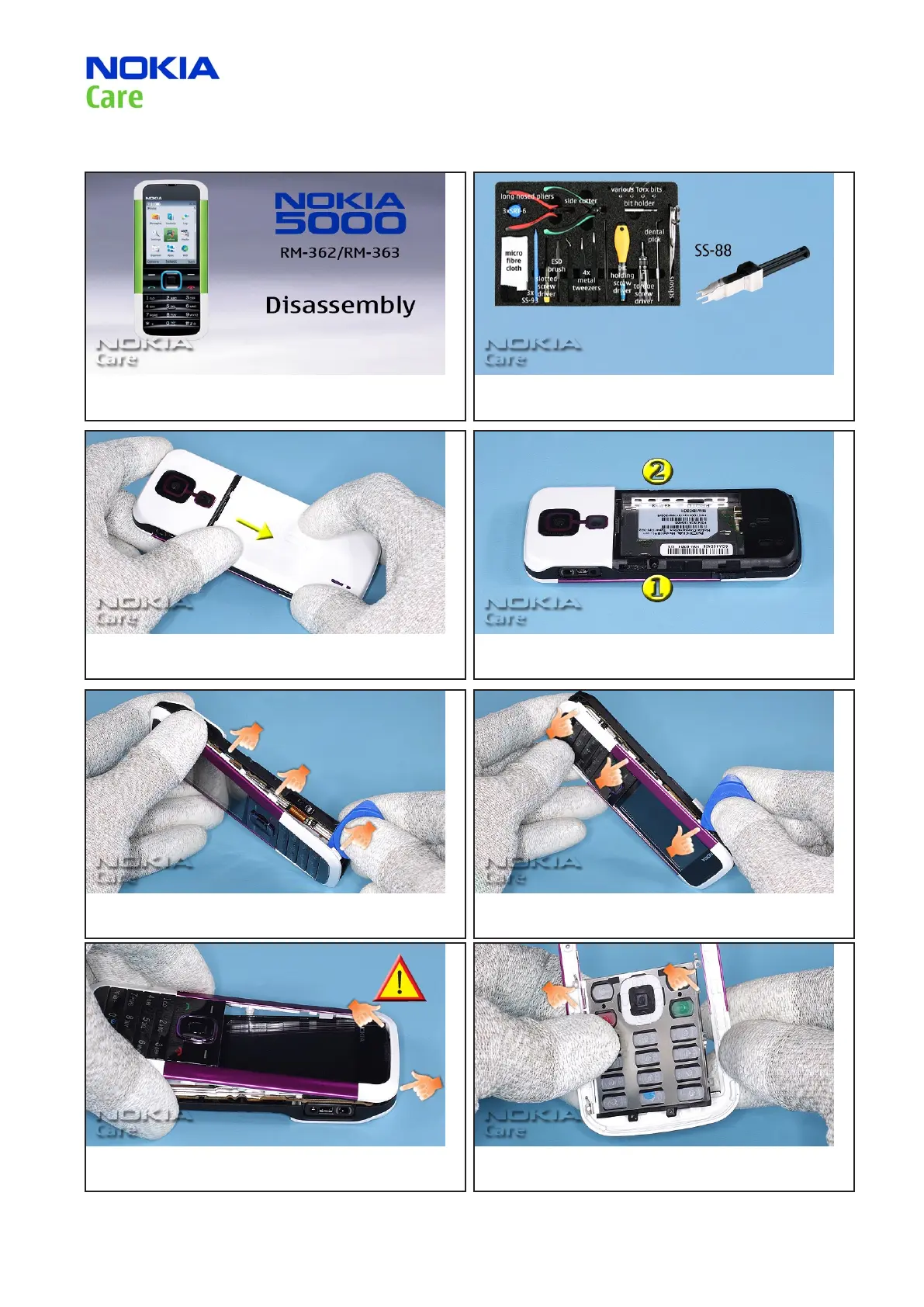

1. Nokia 5000 - Disassembly. 2. You will need the Standard Tool Kit and the Camera Removal
Tool SS-88.
3. Unlock and remove the B-COVER ASSY. Remove the BATTERY if
inserted.
4. Undo the Torx PLUS size 4 SCREWS in the order shown.
5. Carefully unlock the snaps on the shown side rst. 6. Continue on the other side.
7. Gently lift a bit the A-COVER, paying attention to the clips on
the top of the A-COVER and remove it.
8. Remove the KEYMAT from the A-COVER ASSY.
To Next Page
