Nokia 5000 Service Manual

9
CONFIDENTIAL
Copyright © 2008 NOKIA. All rights reserved.
5000 RM-362/RM-363
Page (14) ISSUE 1
Service Manual Level 1&2

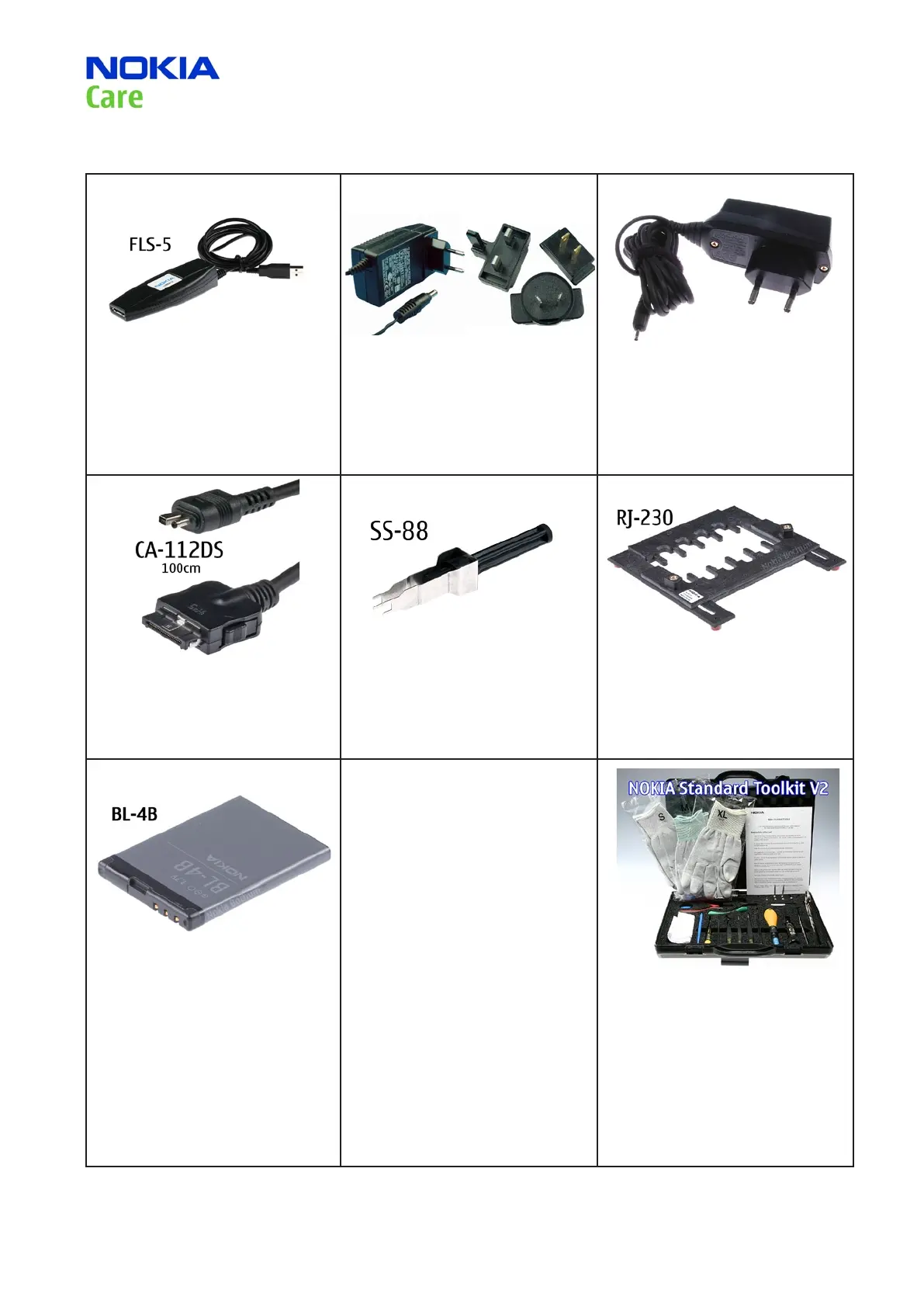

SERVICE DEVICES10.
FLS-5 incl. ACF-8, Driver and User
Guide
Dongle and flash device incorporated
into one package, developed specifi-
cally for POS use.
ACF-8
Universal Power Supply is used to
power FLS-5.
Travel Charger AC-4
Small and lightweight charger for
fast charging of your phone battery.
CA-112DS
Service Cable to connect the PC with
the Easy Flash II connector.
SS-88
Camera removal tool. One side is for
disassembly, the other side for as-
sembly.
RJ-230
Soldering Jig
0772040
NMP Standard Toolkit (V2)
For more informations refer to the
Service Bulletin (SB-011) on NOKIA On-
line.
Supplier or manufacturer contacts for
tool re-order can be found in “Recom-
mended service equipment” docu-
ment on NOKIA Online.
Internal Battery BL-4B
Inserted under the back cover, this
Li-Ion battery provides power in a
lightweight package.

Nokia 5000 Specifications

General

Internal Memory	12 MB
Weight	74 g (2.61 oz)
Network Technology	GSM
GPRS	Class 10
Released	2008, July
Status	Discontinued
SIM	Mini-SIM
Video	Yes
Loudspeaker	Yes
3.5mm jack	No
WLAN	No
Browser	WAP 2.0/xHTML
Games	Yes + Downloadable
Java	Yes, MIDP 2.0
Resolution	240 x 320 pixels (~200 ppi pixel density)
Dimensions	106 x 46 x 11.1 mm (4.17 x 1.81 x 0.44 in)
2G bands	GSM 900 / 1800 / 1900
Alert types	Vibration, MP3 ringtones
Bluetooth	v2.0, A2DP
Radio	Stereo FM radio, RDS
USB	v2.0
Messaging	SMS, MMS, Email
