Nokia 5000 Service Manual

7
CONFIDENTIAL
Copyright © 2008 NOKIA. All rights reserved.
5000 RM-362/RM-363
Page (14) ISSUE 1
Service Manual Level 1&2
See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL.

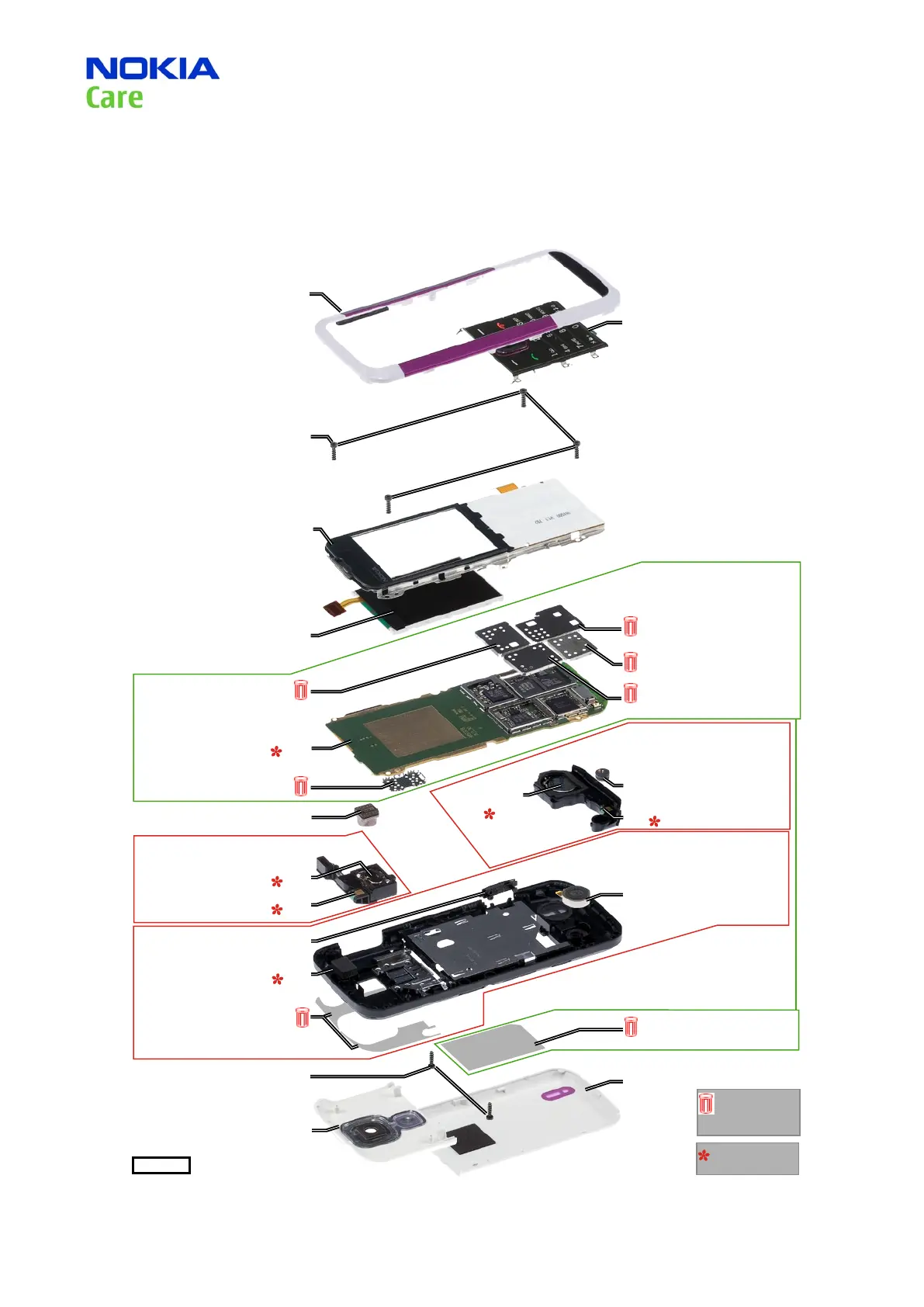

EXPLODED VIEW8.
= only available as
assembly
Ver. 1.0
= These parts can
not be reused
after removal.
5000 RM-362/RM-363 EXPLODED VIEW
A4=D-COVER ASSY
(I0018-I0021)
(LEVEL 3&4 ONLY)
A3=MONO ANTENNA ASSY
(I0015-I0017)
A2=IHF ANTENNA MODULE ASSY
(I0013-I0014)
A1=LIGHT SWAP PACKAGE
(I0005-I0011)
(LEVEL 3&4 ONLY)
A-COVER ASSY
I0001
KEYMAT T9 ASSY
I0002
LIGHT SWAP PWB (A1)
I0005
LID FM/BT (A1)
I0010
ANTENNA (A3)
I0017
CLAPTON EMC
MICROPHONE MOD -42dB (A3)
I0015
VIBRA MOTOR JENNA (A4)
I0018
TYPE LABEL (A1)
(LEVEL 3&4 ONLY)
I0011
B-COVER ASSY
I0023
LID BB 2 UPPER (A1)
I0008
FEM LID (A2)
I0007
LID RF (A1)
I0006
4(6)xSCREW M1.4x5
I0024
2(6)xSCREW M1.4x5
I0024
C-COVER ASSY
I0003
LCD QVGA WESTON
I0004
CAMERA MODULE
I0012
D-COVER ADHESIVE (A4)
I0021
LID BB2 LOWER (A1)
I0009
B-DECO COVER ASSY
I0022
IFA ANTENNA (A2)
I0013
EARPIECE (A2)
I0014
IHF SPEAKER
SLIM 16mm (A3)
I0016
D-COVER (A4)
I0020
CAMERA KEY (A4)
I0019

Nokia 5000 Specifications

General

Internal Memory	12 MB
Weight	74 g (2.61 oz)
Network Technology	GSM
GPRS	Class 10
Released	2008, July
Status	Discontinued
SIM	Mini-SIM
Video	Yes
Loudspeaker	Yes
3.5mm jack	No
WLAN	No
Browser	WAP 2.0/xHTML
Games	Yes + Downloadable
Java	Yes, MIDP 2.0
Resolution	240 x 320 pixels (~200 ppi pixel density)
Dimensions	106 x 46 x 11.1 mm (4.17 x 1.81 x 0.44 in)
2G bands	GSM 900 / 1800 / 1900
Alert types	Vibration, MP3 ringtones
Bluetooth	v2.0, A2DP
Radio	Stereo FM radio, RDS
USB	v2.0
Messaging	SMS, MMS, Email
