5000 RM-362/RM-363
Page (14) ISSUE 1
Service Manual Level 1&2

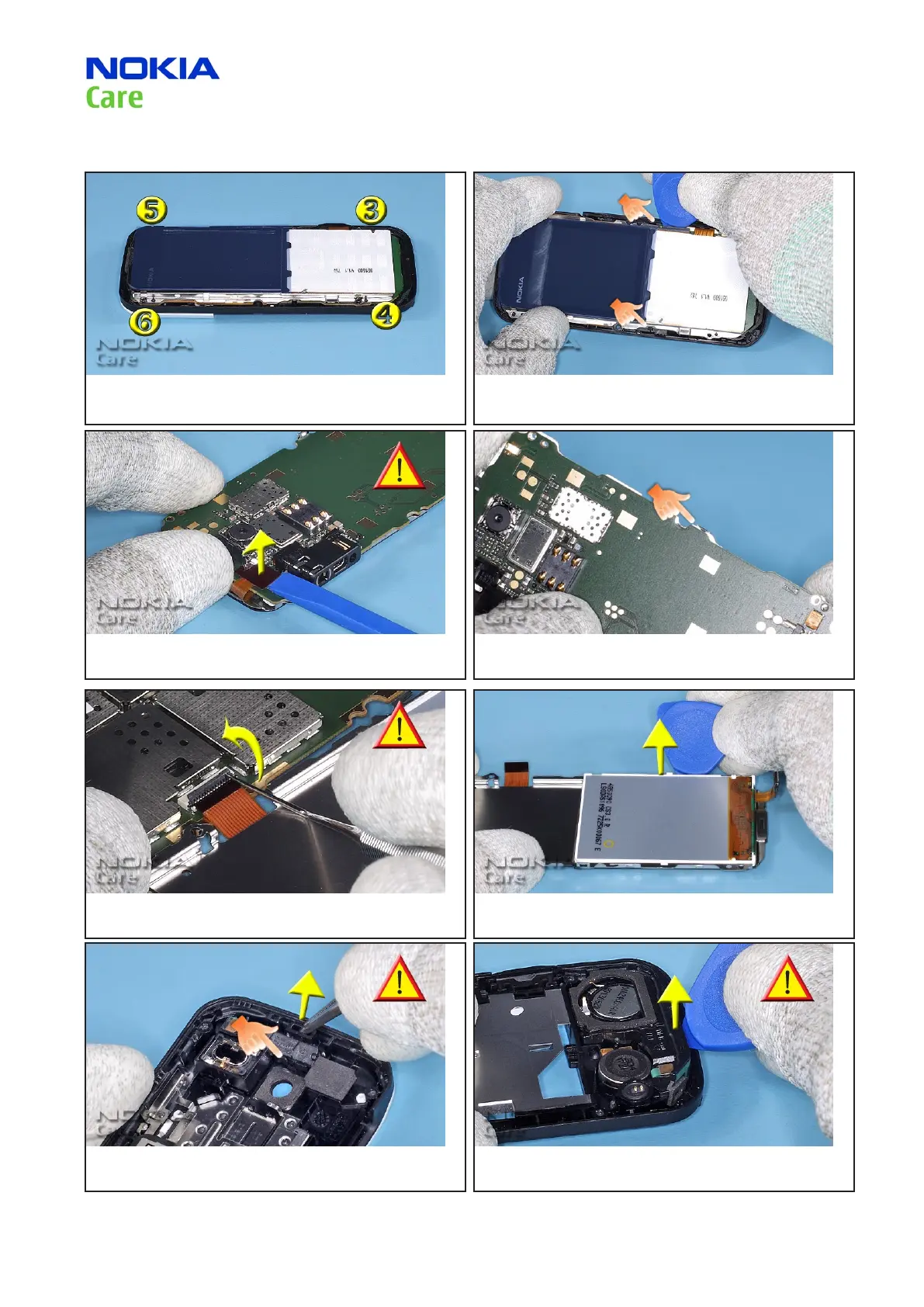

9. Undo the Torx PLUS size 4 SCREWS in the order shown. 10. The C-COVER and PWB are secured by two clips to the
D-COVER. Unlock the clips and remove the parts from the
D-COVER.
11. Carefully open the LCD connector. 12. Unlock the PWB and carefully open the parts.
13. Take special care to the ex connector. Gently unlock the
ex and take it out.
14. Remove the LCD from the C-COVER.
15. Unlock the IHF ANTENNA MODULE and remove it from the
D-COVER.
16. Use the SRT-6 to remove carefully the MONO ANTENNA ASSY.
Avoid damaging the gaskets.
