Nokia 5230
RM-588 / RM-593 / RM-594 / RM-629
Service Manual Level 1&2
10 Confidential Copyright © 2010 NOKIA All rights reserved Version 8.0

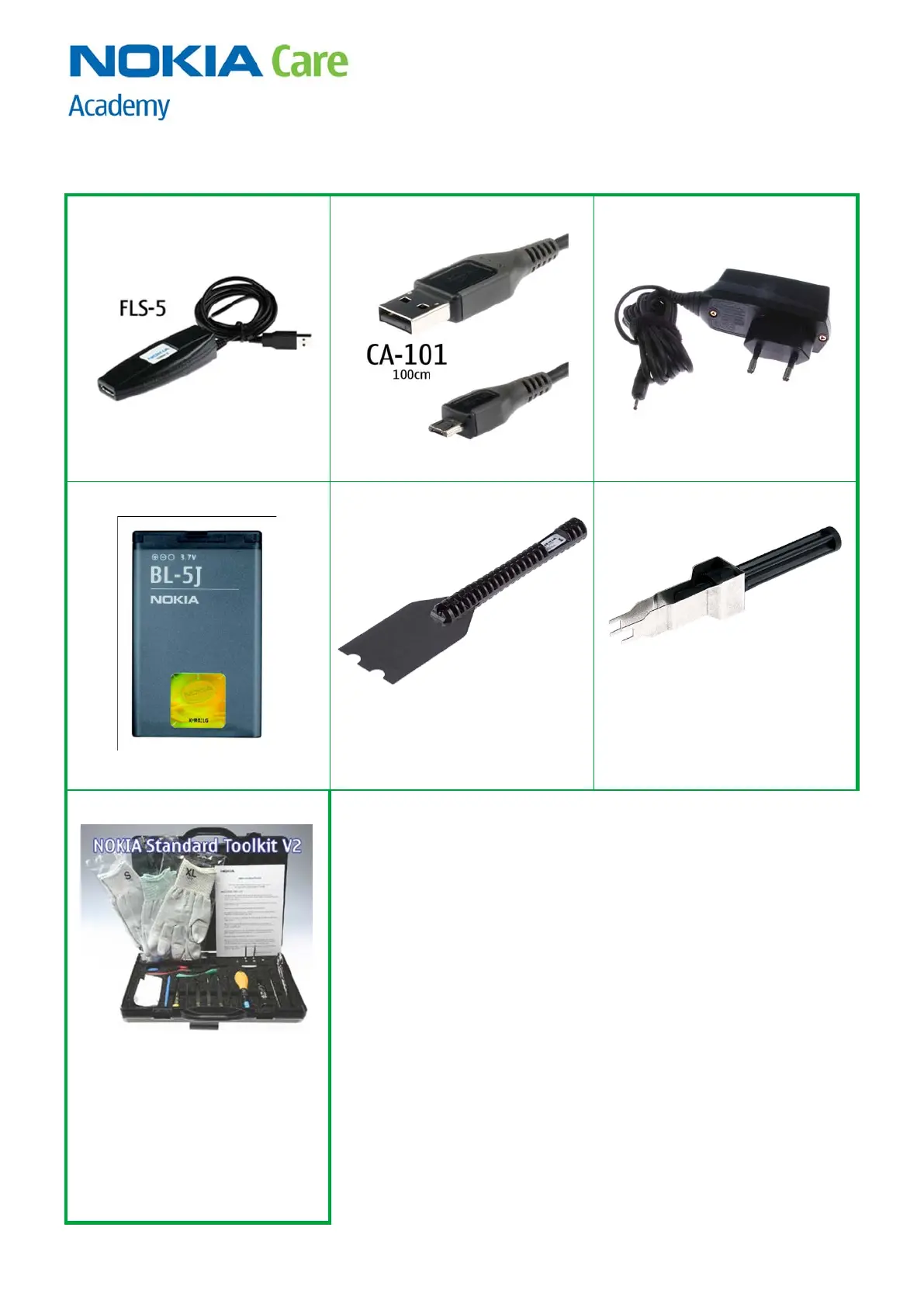

7. SERVICE DEVICES
FLS-5 Flash Device
CA-101 Service Cable
AC-4 Travel Charger
BL-5J Battery
SS-195 Display removal tool
SS-88 Camera removal tool
NMP standard toolkit (v2)
For more information, refer to the
Service Bulletin (SB-011) on NOKIA
Online. Supplier or manufacturer
contacts for tool re-order can be
found in “Recommended service
equipment” document on NOKIA
Online.
