Nokia 5230 Serivce Manual

Nokia 5230
RM-588 / RM-593 / RM-594 / RM-629
Service Manual Level 1&2
9 Confidential • Copyright © 2010 NOKIA • All rights reserved Version 8.0

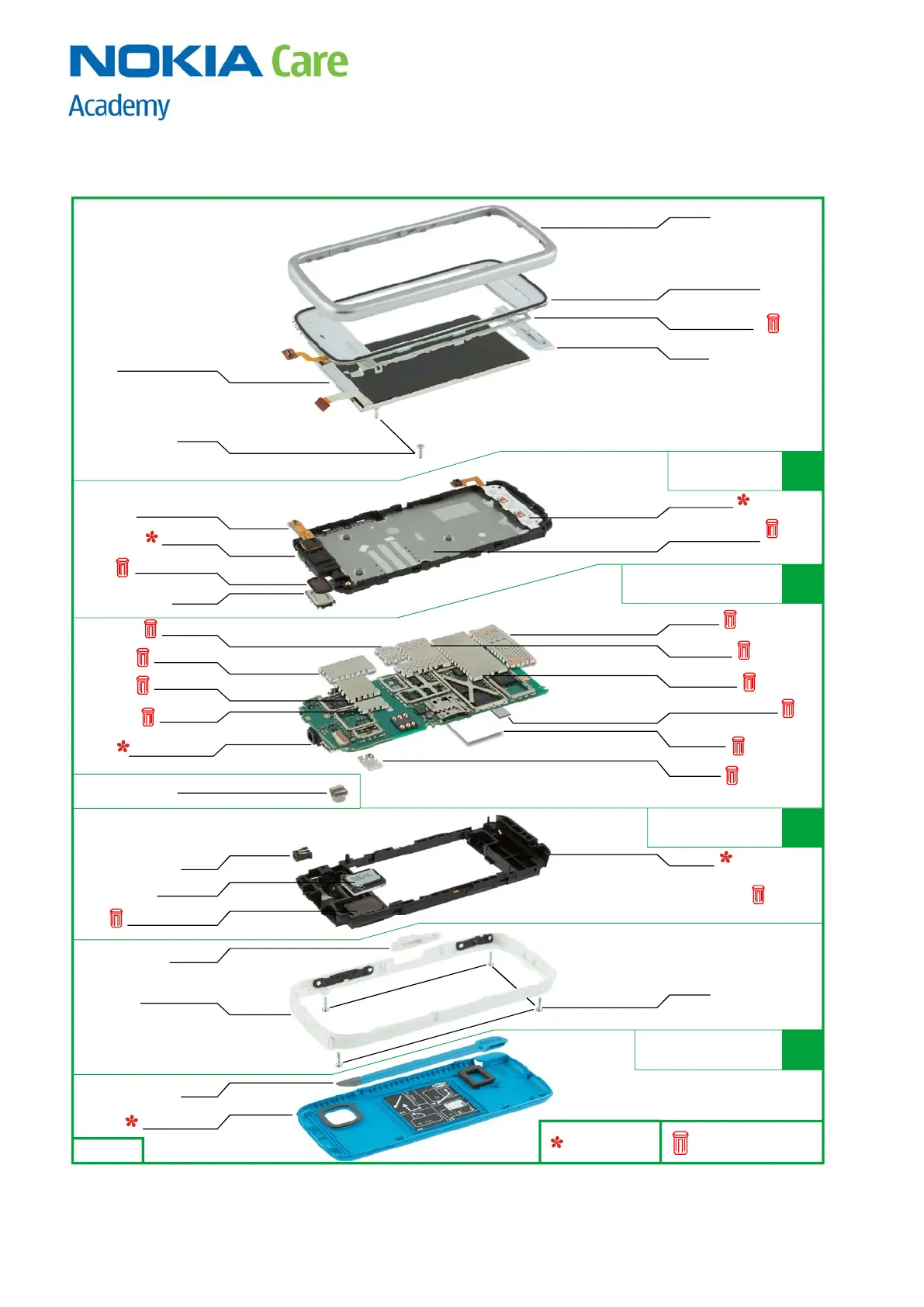

6. EXPLODED VIEW
LCD FRAME ASSY
(I0006 - I0011)
A1
ANTENNA MODULE
(I0024 - I0027)
BATTERY COVER ASSY
(I0031 - I0032)
PWB ASSY
(I0012 - I0021, I9998)
A2
A3
A4
Only available as
assembly
These parts can not be
reused after removal
Ver. 5.0
LCD AM TFT 360x640
I0005
A-COVER
I0001
TOUCH PANEL ASSY
I0002
TOUCH FRAME ASSY
I0003
UPPER FLEX ASSY
I0006
EARPIECE GASKET
I0010
EARPIECE
I0009
LCD FRAME
I0011
LNA SHIELD
I0020
IHF SPEAKER
I0024
IHF FRONT GASKET
I0025
SLIDE KEY
I0029
SIDE BAND ASSY
I0028
BATTERY COVER
I0031
STYLUS
I0032
DC JACK
I0026
TUBE SHIELD
I0014
HUSB SHIELD
I0013
GPS SHIELD
I0012
LIGHT SWAP PWB
I0019
CAMERA
I0022
SCREWS
I0023
KEYMAT
I0004
UI FLEX ASSY
I0007
DISPLAY ADHESIVE
I0008
RF SHIELD
I0017
BEWI SHIE
LD
I0015
KAZUU SHIELD
I0016
TYPE LABEL
I0021
WATER INGRESS LABEL
I9998
BT SHIELD
I0018
B-COVER
I0027
BATTERY SIDE
PUSHER STICKER
I0033
SCREWS
I0030
Phones with stylus (thick Battery cover):
RM-625, RM-588 (SEAP, China, India, MENA)
Phones without stylus (thin Battery cover):
RM-594, RM-588(Europe, Eurasia), RM-629, RM-593
NOTE: If TOUCH PANEL ASSY or
TOUCH FRAME ASSY is damaged,
both of them need to be renewed.
However, if TOUCH PANEL ASSY and
TOUCH FRAME ASSY are undamaged,
they should be reused.
