Nokia 5230 - Assembly Hints

Nokia 5230
RM-588 / RM-593 / RM-594 / RM-629
Service Manual Level 1&2
19 Confidential • Copyright © 2010 NOKIA • All rights reserved Version 8.0

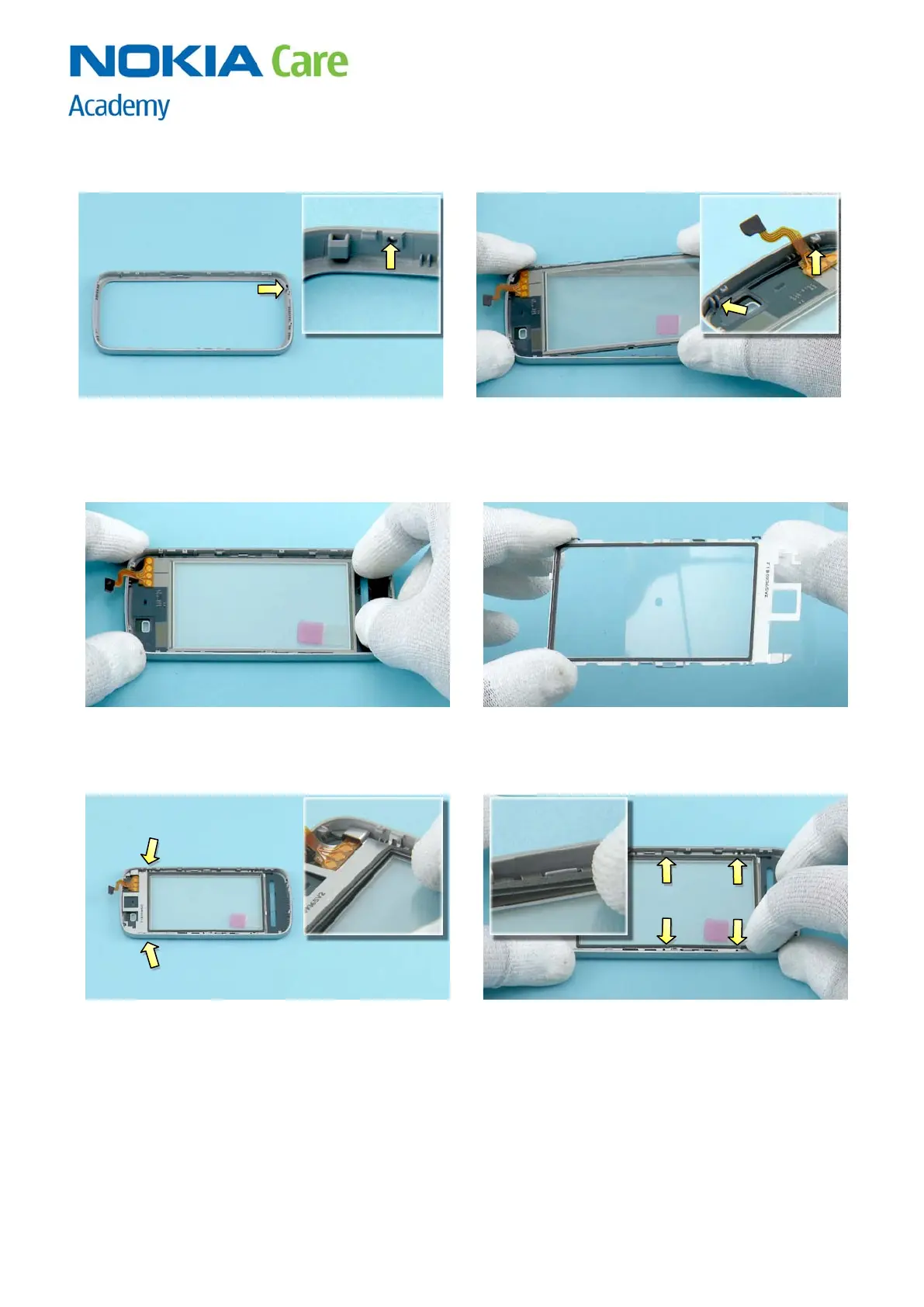

10. ASSEMBLY HINTS
1) Start assembling the device from the A-COVER.
Note that the microphone hole is located in the
bottom end of the A-COVER.
2) Place the TOUCH PANEL ASSY to the A-COVER. Start
from the top side of the TOUCH PANEL ASSY and
make sure it is correctly placed under the A-COVER
clips.
3) Lower down the bottom end of the TOUCH PANEL
ASSY.
4) Remove the protective film from the TOUCH
FRAME ASSY.
5) Align the TOUCH FRAME ASSY on top of the A-
COVER. Start attaching the TOUCH FRAME ASSY from
the top side clips.
6) Press down the four shown clips carefully to lock
the TOUCH FRAME ASSY on its place.
