Nokia 5230 - Keys and Parts; Device Overview

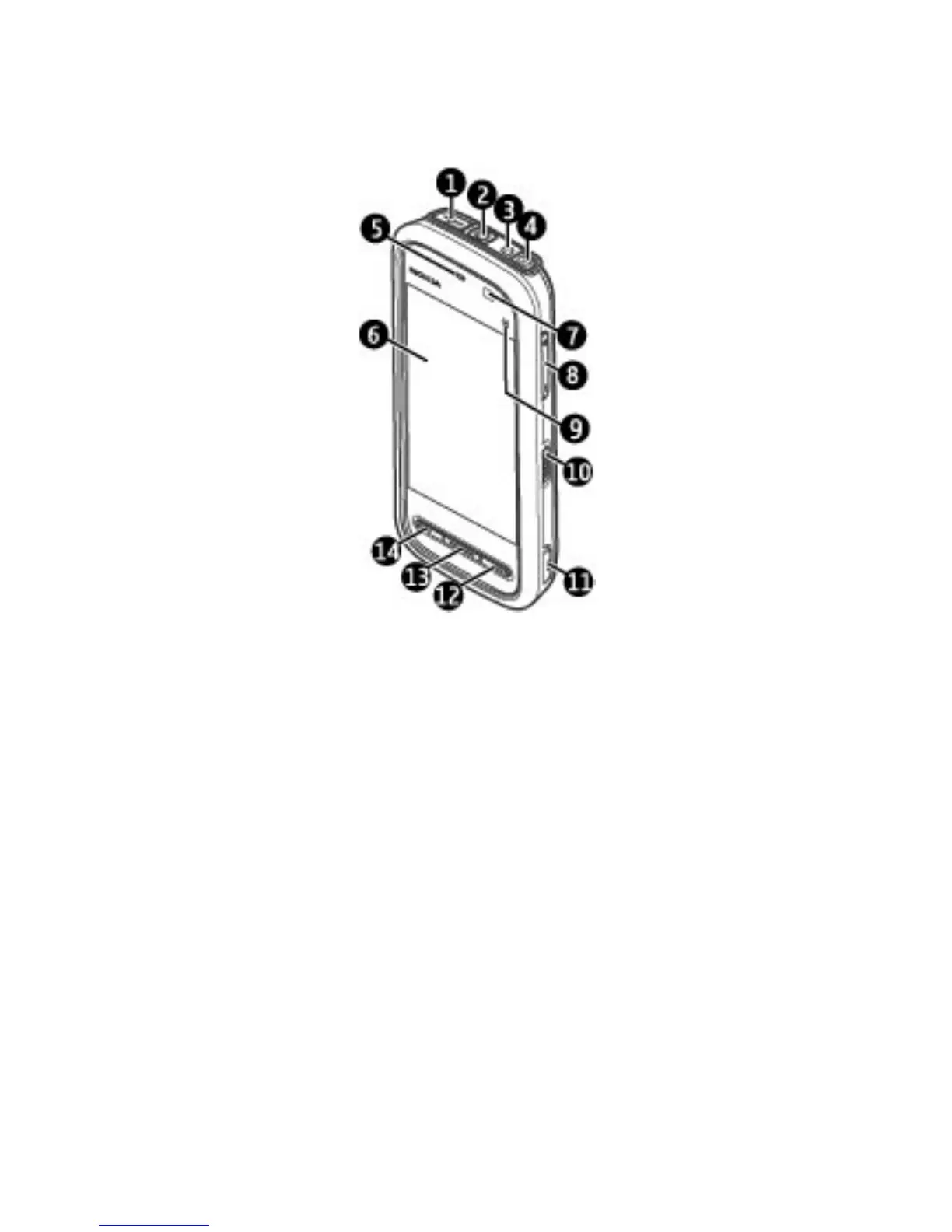

Keys and parts
1 — Micro USB connector
2 — Nokia AV connector (3.5mm)
3 — Charger connector
4 — Power key
5 — Earpiece
6 — Touch screen
7 — Proximity detector
8 — Volume/Zoom key
9 — Media key
10 — Lock switch
11 — Capture key
12 — End key
© 2010 Nokia. All rights reserved. 21
