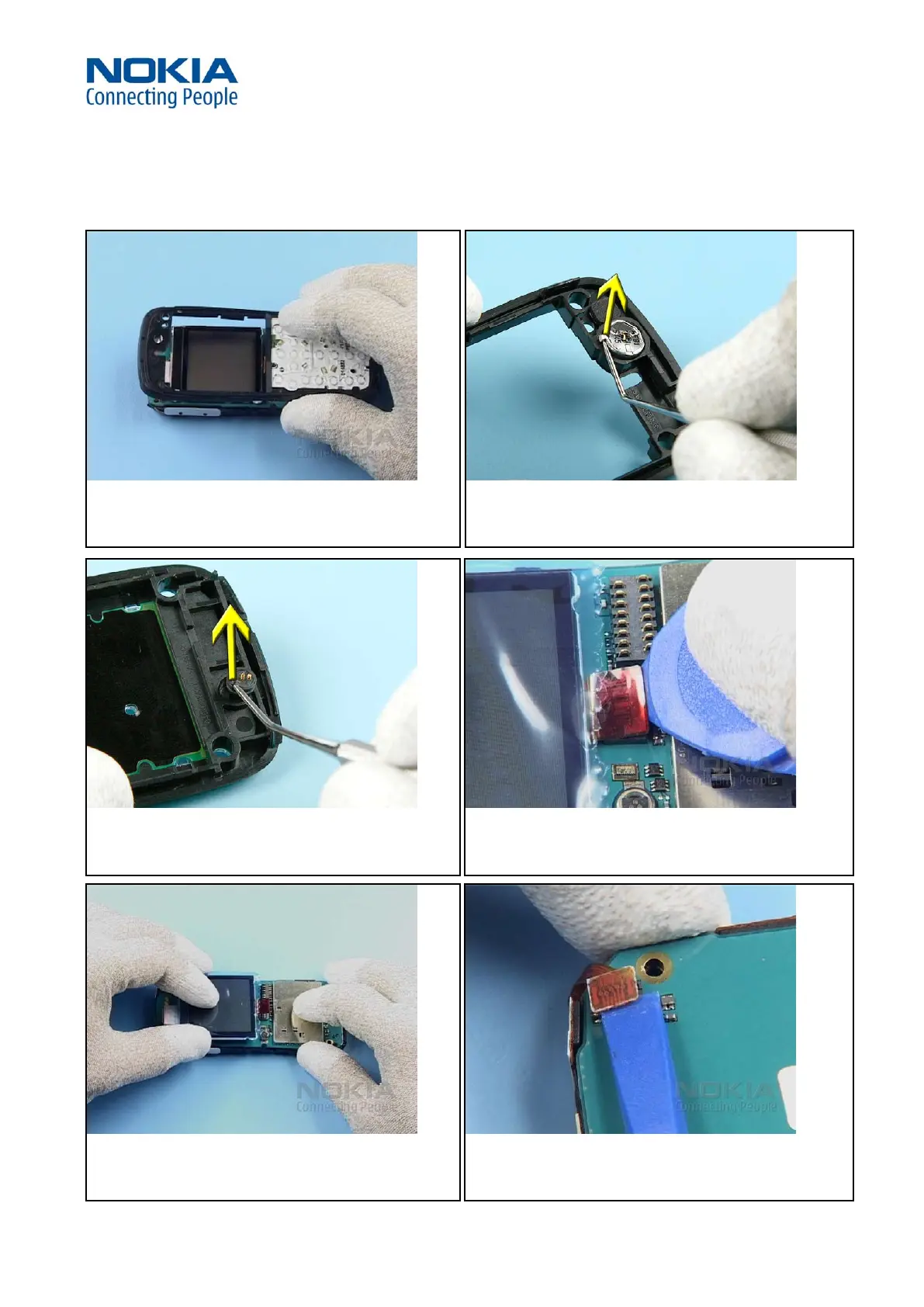

13. Remove the A-COVER ASSY.
14. Remove the EARPIECE with the dental pick.
15. Remove the MICROPHONE with the dental pick.
16. Gently, open the LCD CONNECTOR...
17. ...and remove the LCD MODULE ASSY.
18. Open the SIDE FLEX connector.
