Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
12.Sept.2007
12
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page
(20)

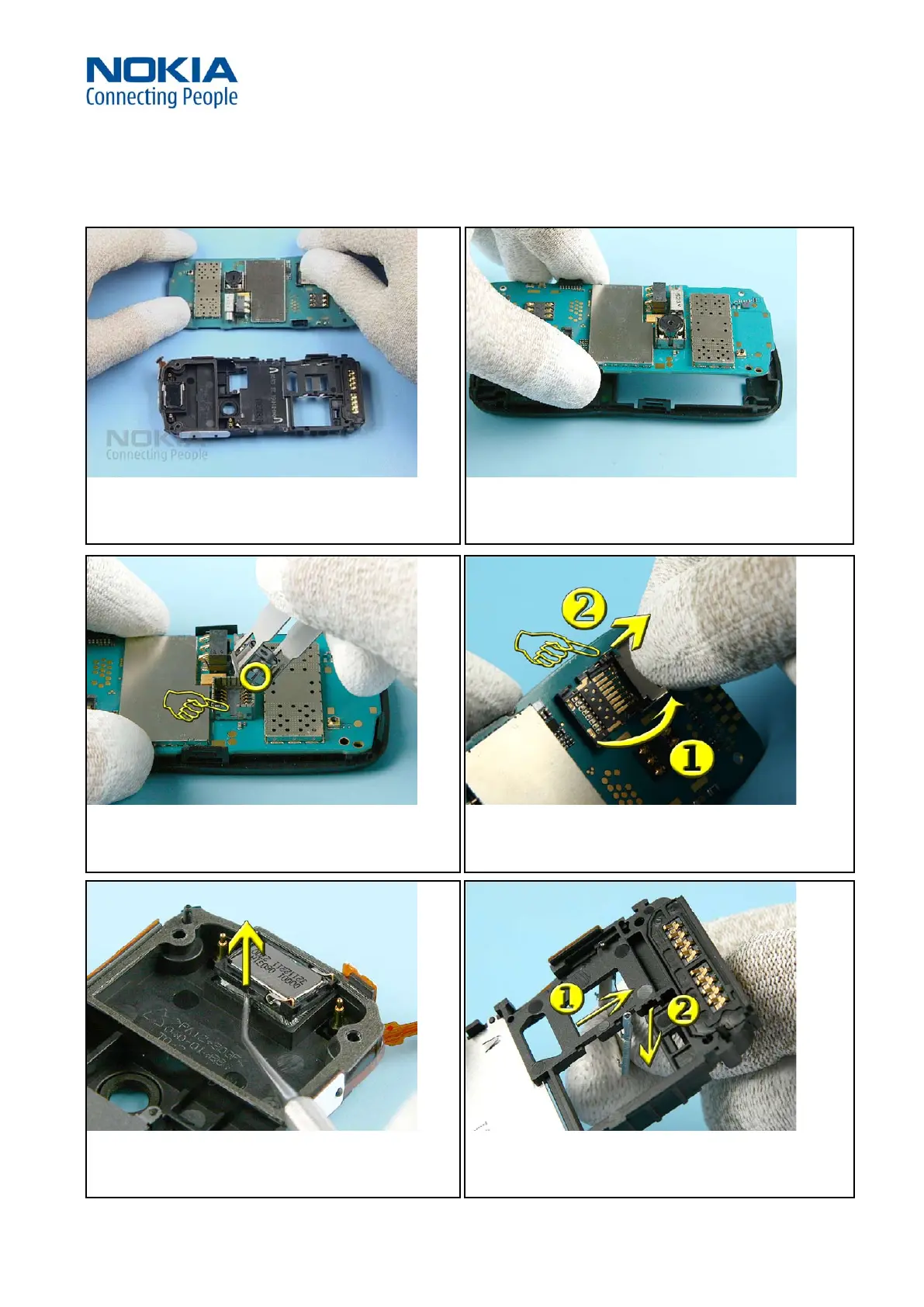

19. Now, remove the ENGINE MODULE.
20. Use the A-COVER ASSY as an support when removing the
CAMERA MODULE.
21. Remove the CAMERA MODULE with the SS-45 camera
removal tool. Note the guide pin for the reassembling
procedure.
22. Remove the MICRO SD DOOR in the shown order.
23. Remove the IHF SPEAKER DONAU with the dental pick.
24. Remove the SIM COVER in the shown order.
