5610 Xpress Music RM-242/RM-279/RM-358/RM-359
Page
(24) ISSUE 2
Service Manual Level 1&2

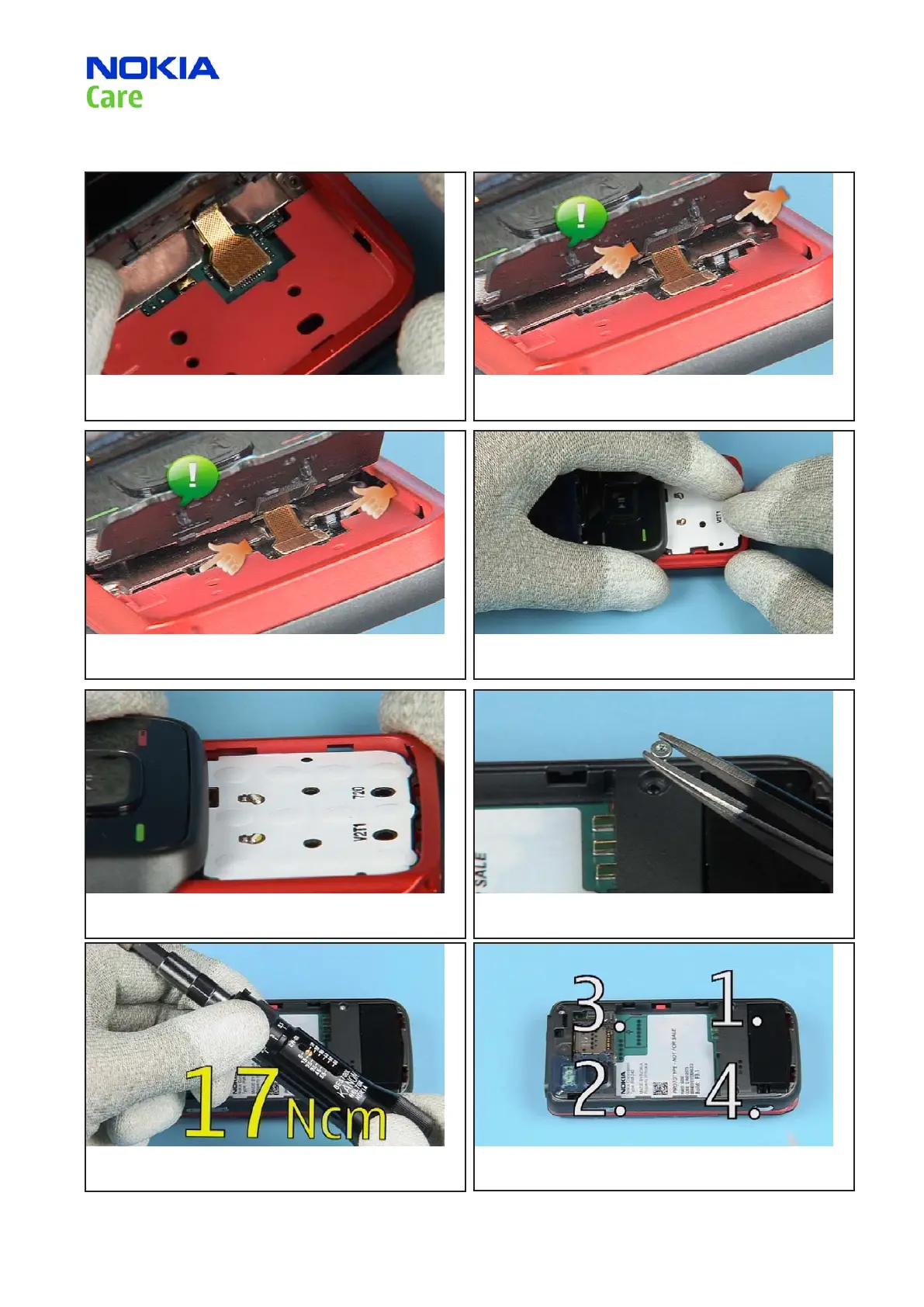

49. Close the ex connector. 50. Align the shown plastic clips of the BOTTOM KEYMAT
SUPPORT...
51. ...under the metal border of the SLIDE MODULE ASSEMBLY. 52. Smooth down the BOTTOM KEYMAT SUPPORT evenly. Click
the clips into their places.
53. Check the correct positioning of the BOTTOM KEYMAT
SUPPORT before going on.
54. Close the slider. Insert the 4 new screws.
55. Set the correct torque. 56. Prevent mechanical stress to the NAVI SLIDER. Tighten all
screws with the correct torque in the order shown,
