Nokia 5610 User Manual

6
CONFIDENTIAL
Copyright © 2007-2008 NOKIA. All rights reserved.
5610 Xpress Music RM-242/RM-279/RM-358/RM-359
Page
(24) ISSUE 2
Service Manual Level 1&2
See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL.

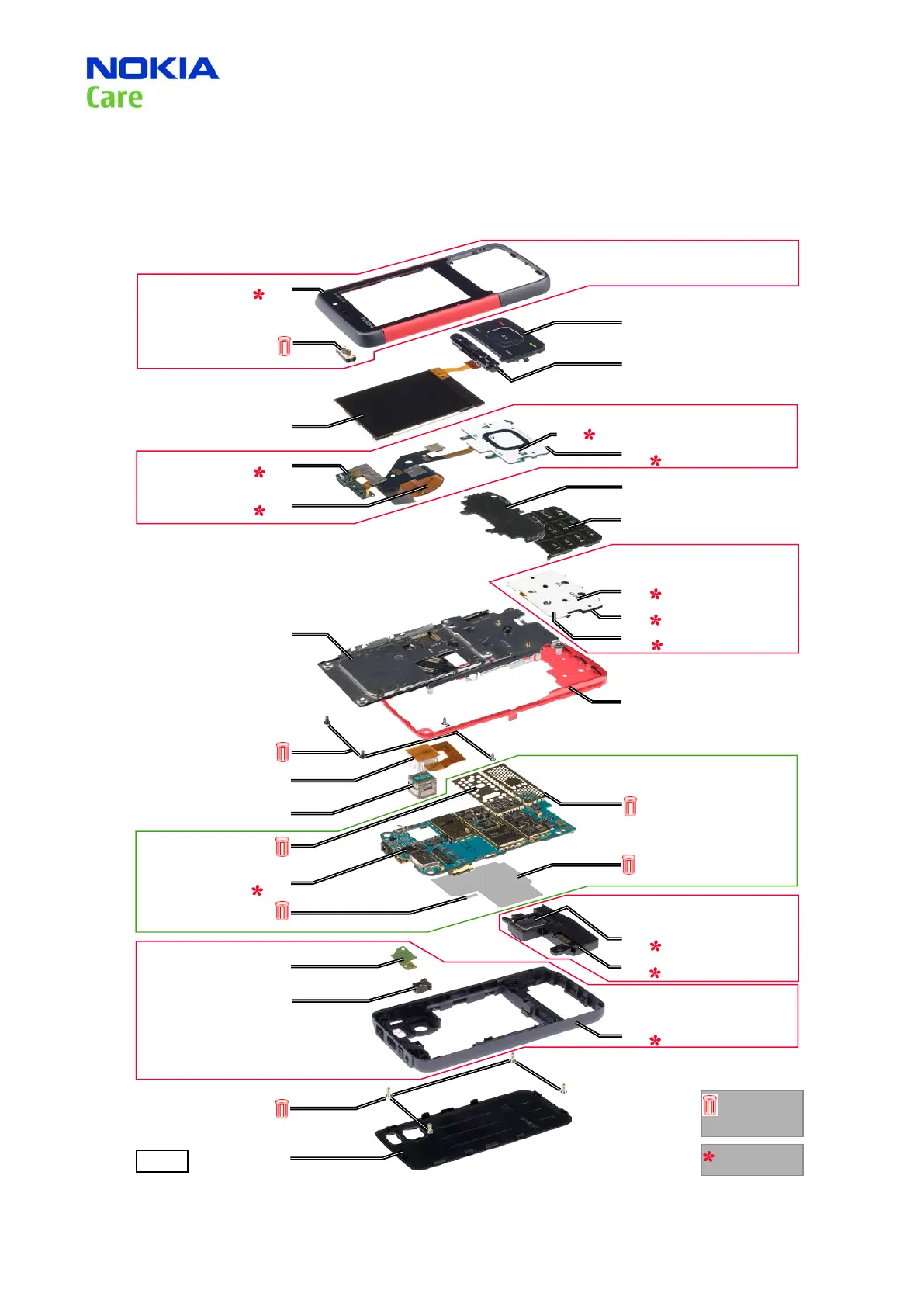

EXPLODED VIEW7.
A2=TOP FLEX ASSEMBLY
(I0101-I0104)
A1=A-COVER ASSY
(I0001, I0003)
A4=LIGHT SWAP PACKAGE
(I0208-I0211, I9998) (LEVEL 3&4 ONLY)
A3=BOTTOM KEYMAT SUPPORT
(I0202-I0204)
A6=D-COVER ASSEMBLY
(I0214-I0216)
A5=ANTENNA / IHF ASSEMBLY
(I0212-I0213)
SCREW M1.4x2.5
I0008
CAMERA MOD 3MP
I0206
SCREW M1.4X3.4 TORX PLUS 4IP
I0218
TOP KEYMAT ASSY
I0005
A-COVER (A1)
I0001
EARPIECE (A1)
I0003
LCD AM 240x320
I0006
= only available as
assembly
5610 Xpress Music RM-242/RM-279/RM-358/RM-359 Exploded view
CAMERA FLEX MODULE
I0207
SLIDE MODULE ASSEMBLY
I0105
NAVI SLIDER MODULE
I0004
NAVI KEYMAT SUPPORT
I0007
NUMERIC KEYMAT
I0201
LOWER BEZEL ASSEMBLY (VARIANT PART)
I0205
TOP DOME SHEET (A2)
I0101
TOP FLEX (A2)
I0104
LIGHT SWAP PWB/
ENGINE MODULE (A4)
I0210
WATER INGRESS LABEL (A4)
(LEVEL 3&4 ONLY) I9998
RF-LID (A4)
I0208
CMOS CAMERA MODULE CIF+ (A2)
I0103
TOP PWB (A2)
I0102
BB-LID (A4)
I0209
TYPE LABEL (A4)
(LEVEL 3&4 ONLY)
I0211
CONN CHR DIA 2.0mm (A6)
I0215
BOTTOM DOME SHEET (A3)
I0202
BOTTOM SUPPORT (A3)
I0204
BOTTOM FLEX (A3)
I0203
ANTENNA (A5)
I0213
IHF SPEAKER (A5)
I0212
BATTERY COVER
I0219
D-COVER (A6)
I0216
FLASH ASSEMBLY (A6)
I0214
= These parts can
not be reused
after removal.
Ver 3.0

Nokia 5610 Specifications

General

Display type	LCD
Display diagonal	2.2 \
Display resolution	240 x 320 pixels
Display number of colors	16.78 million colors
Internal memory	20 MB
Flash card support	Yes
Rear camera resolution (numeric)	3.2 MP
Interface	Series 40
Networking type	GSM/WCDMA
Playback formats	MP3, MP4, AAC, eAAc+, WMA
Browser supported	Opera mini, XHTML
Operating frequency	850/900/1800/1900/2100 MHz
USB 2.0 ports quantity	1
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Ringer type	Polyphonic
Battery type	BP-5M
Talk time (2G)	6 h
Battery capacity	900 mAh
Standby time (2G)	320 h
Form factor	Slider
Embedded games	4
Phonebook capacity	2000 entries
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Countdown timer, Notes, Stopwatch, To-do list
Bluetooth version	2.0+EDR
Specific absorption rate (SAR) value (EU)	1.14 . W/kg
Data network	GPRS, HSCSD

Weight and Dimensions

Depth	17 mm
Width	48.5 mm
Height	98.5 mm
Weight	111 g
