5610 Xpress Music RM-242/RM-279/RM-358/RM-359
Page
(24) ISSUE 2
Service Manual Level 1&2
ASSEMBLY INSTRUCTION12.

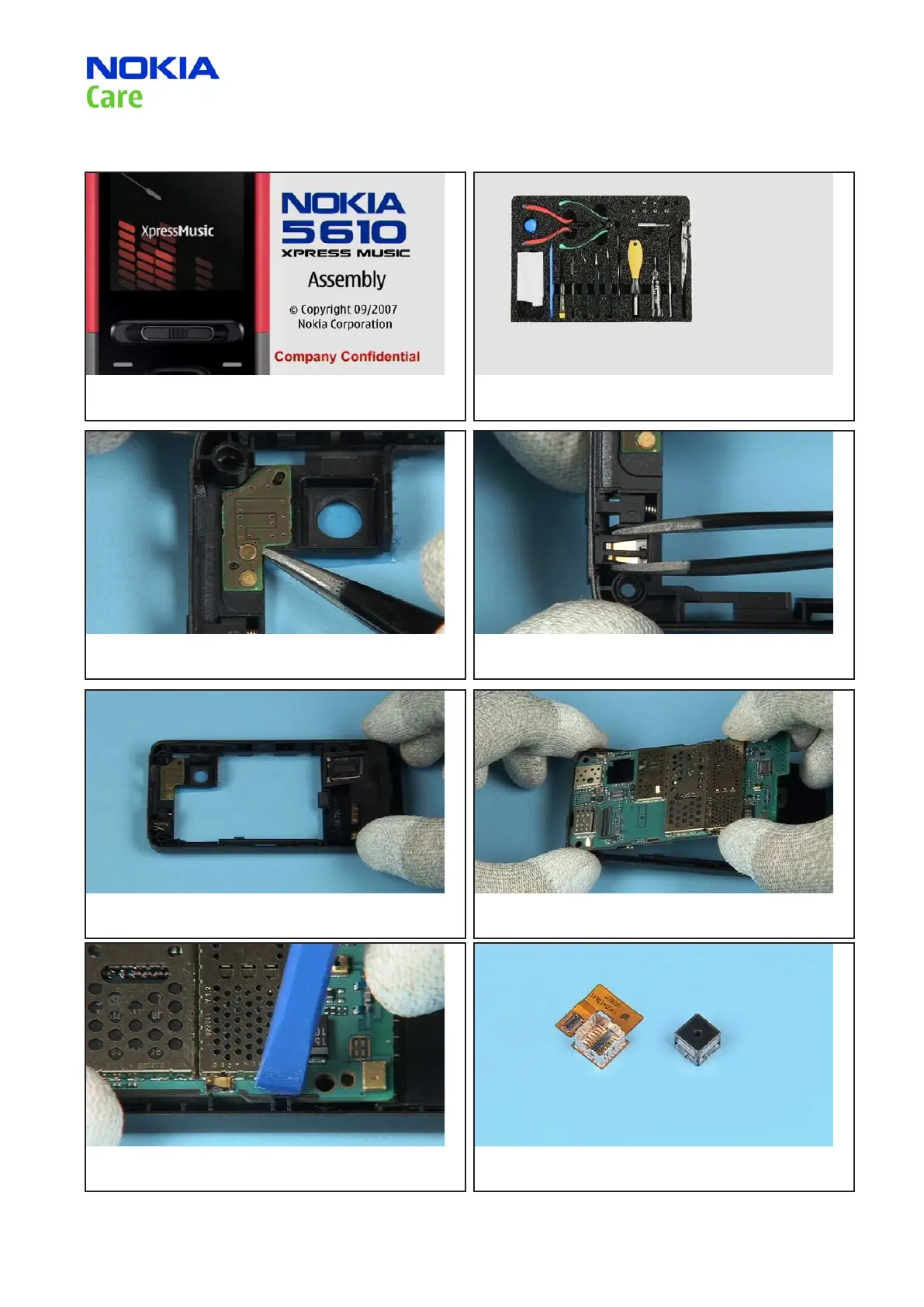

1. Nokia 5610 Xpress Music assembly. 2. You will need the Nokia Standard Toolkit version 2.
3. Insert the FLASH ASSEMBLY and push it down slightly. The
adhesive protection lm must be removed if this part is new.
4. Insert the DC PLUG.
5. Place the ANTENNA IHF ASSEMBLY. 6. Insert the ENGINE MODULE, beginning from the top.
7. Click the ENGINE MODULE into its place on both sides. 8. The CAMERA MODULE and the FLEX MODULE can be ordered as
separate parts only.
