Nokia 5610 User Manual

10
CONFIDENTIAL
Copyright © 2007-2008 NOKIA. All rights reserved.
5610 Xpress Music RM-242/RM-279/RM-358/RM-359
Page
(24) ISSUE 2
Service Manual Level 1&2

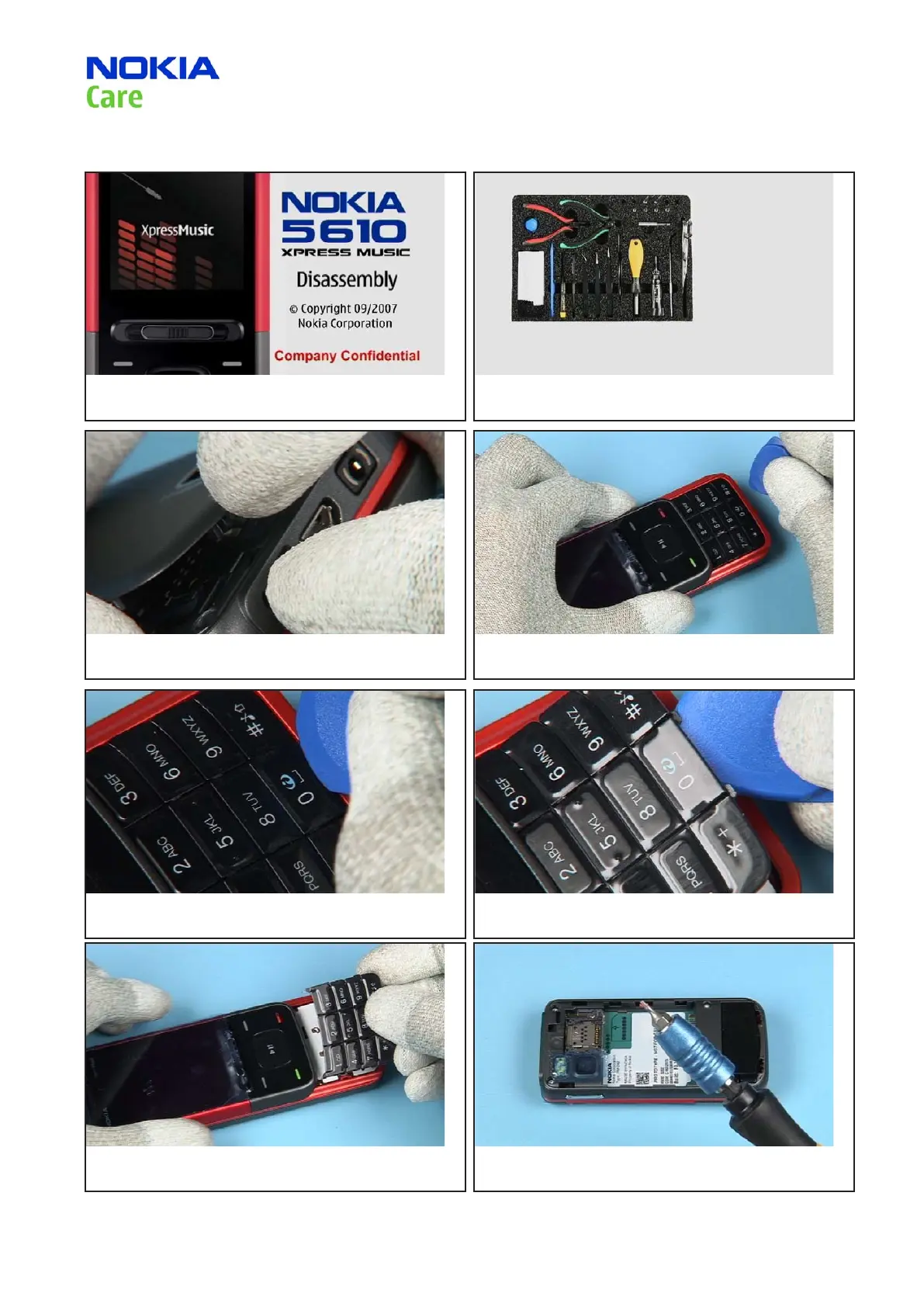

DISASSEMBLY INSTRUCTION11.
1. Nokia 5610 Xpress Music disassembly. 2. You will need the Nokia Standard Toolkit version 2.
3. Unlock and remove the BATTERY COVER. 4. Use the SRT-6 only for removing the NUMERIC KEYMAT.
5. Insert the SRT-6 between the “o” key and the LOWER BEZEL. 6. Gently pry open the clips of the KEYMAT.
7. After releasing all clips, the NUMERIC KEYMAT can be removed
easily.
8. Equip your Bitholder with a Torx Plus size 4 bit.

Nokia 5610 Specifications

General

Display type	LCD
Display diagonal	2.2 \
Display resolution	240 x 320 pixels
Display number of colors	16.78 million colors
Internal memory	20 MB
Flash card support	Yes
Rear camera resolution (numeric)	3.2 MP
Interface	Series 40
Networking type	GSM/WCDMA
Playback formats	MP3, MP4, AAC, eAAc+, WMA
Browser supported	Opera mini, XHTML
Operating frequency	850/900/1800/1900/2100 MHz
USB 2.0 ports quantity	1
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Ringer type	Polyphonic
Battery type	BP-5M
Talk time (2G)	6 h
Battery capacity	900 mAh
Standby time (2G)	320 h
Form factor	Slider
Embedded games	4
Phonebook capacity	2000 entries
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Countdown timer, Notes, Stopwatch, To-do list
Bluetooth version	2.0+EDR
Specific absorption rate (SAR) value (EU)	1.14 . W/kg
Data network	GPRS, HSCSD

Weight and Dimensions

Depth	17 mm
Width	48.5 mm
Height	98.5 mm
Weight	111 g
