5610 Xpress Music RM-242/RM-279/RM-358/RM-359
Page
(24) ISSUE 2
Service Manual Level 1&2

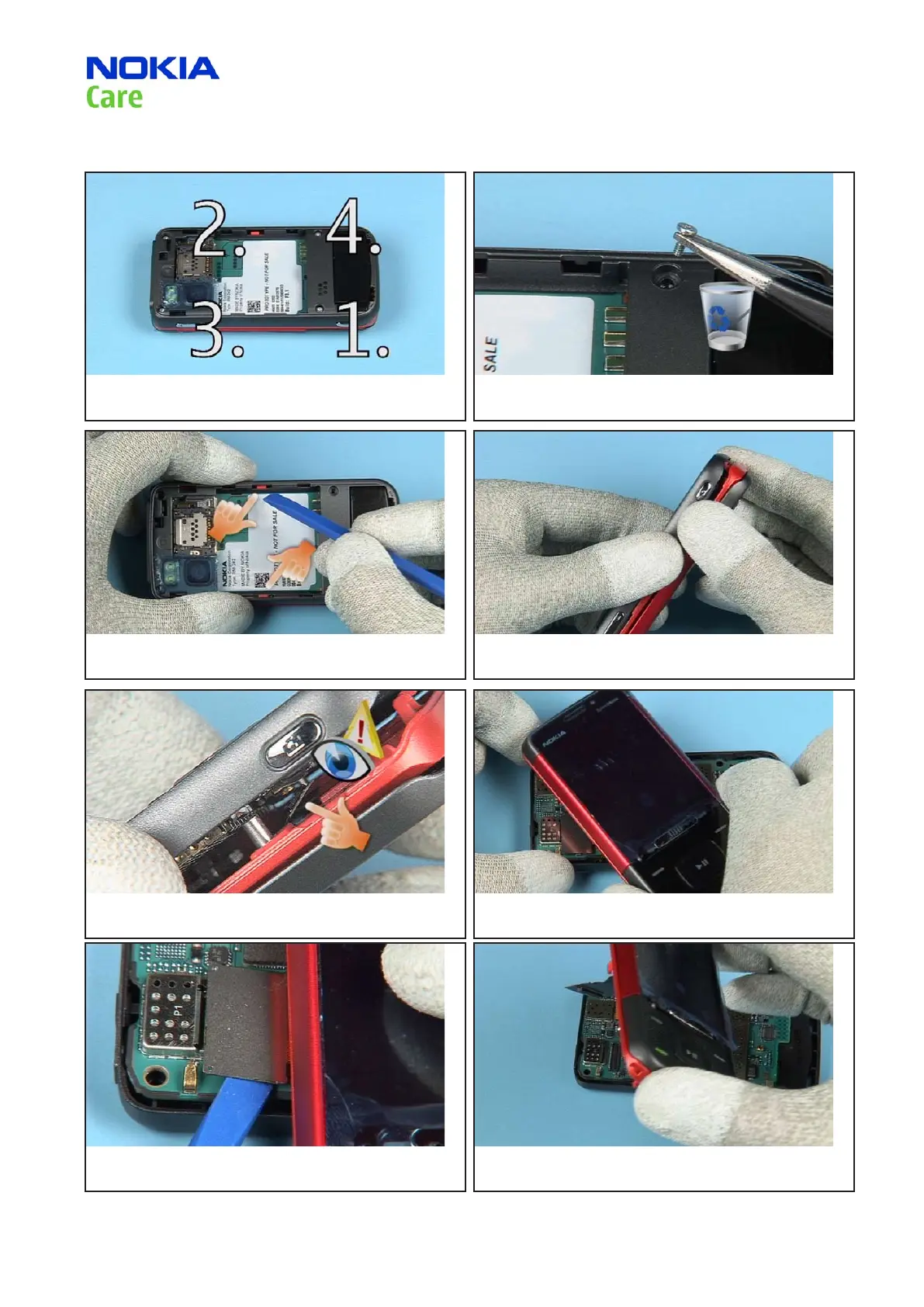

9. Unscrew these 4 screws in the order shown. 10. Discard these screws. Do not use them again.
11. Unlock both clips of the A-COVER with the SS-93. 12. Slightly release the assemblies, beginning at the bottom
side.
13. Note that this small ex connector was opened before
continuing.
14. Gently twist the upper assembly near to 90 degree.
15. The large ex connector becomes visible. Release it with the
SS-93. Do not bend the grounding clip.
16. The assemblies can be separated now.
