N5700 RM-230 / RM-302
Page (53) ISSUE 2
Service Manual Level 1&2

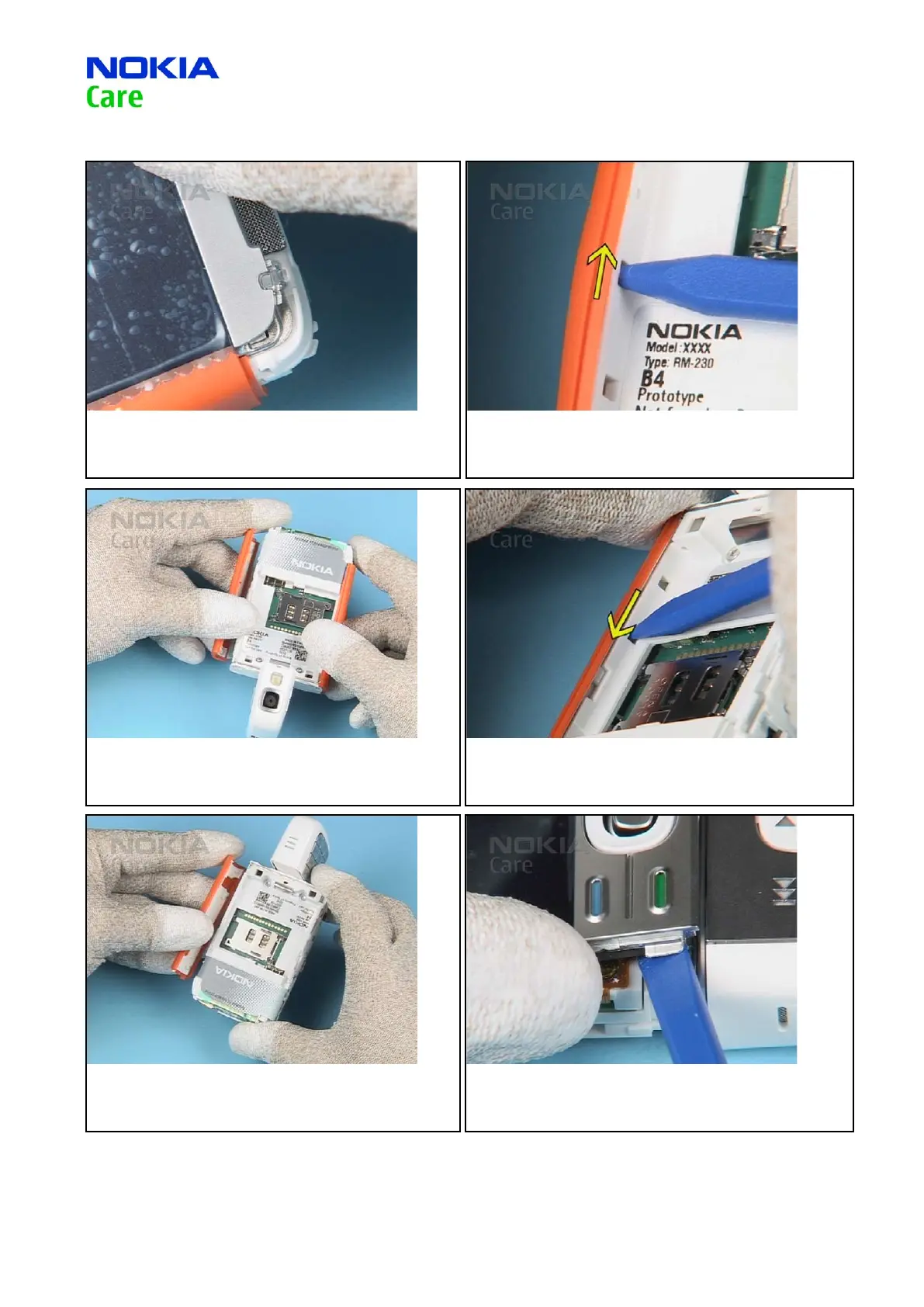

7. Pay attention to the light guide.
8. Use the SS-93 to unlock the SIDE ASSY RIGHT by pushing the
SIDE ASSY upwards at the same time.
9. Remove the SIDE ASSY RIGHT.
10. Unlock the SIDE ASSY LEFT by pushing it as shown.
11. Remove the SIDE ASSY LEFT.
12. Lift the KEYMAT MENU a bit and remove it.
