N5700 RM-230 / RM-302
Page (53) ISSUE 2
Service Manual Level 1&2

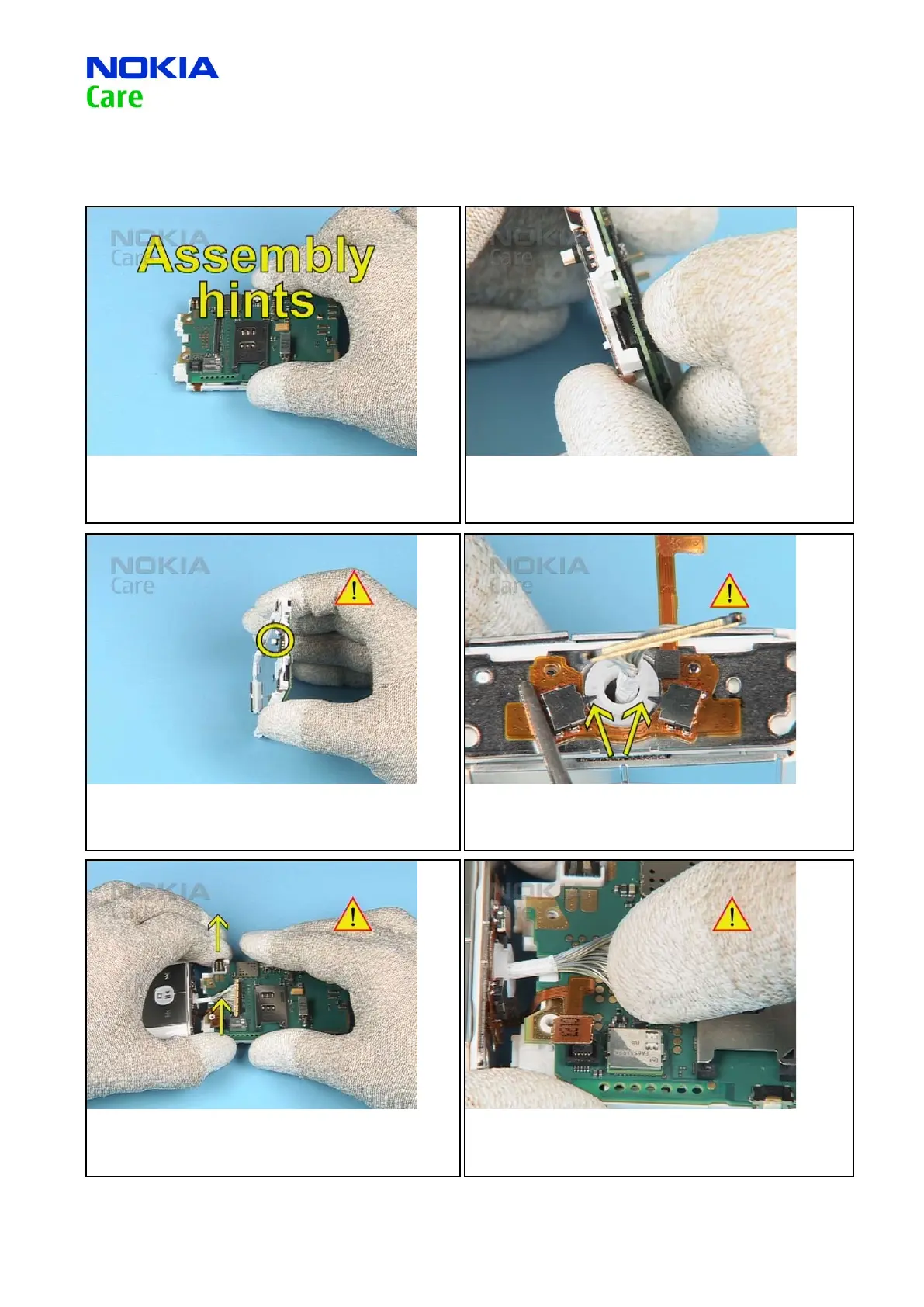

UPPER BLOCK ASSEMBLY HINTS 14.
1. Assembly hints
2. Align the FLEX UPPER connector with the connector on the
SYSTEM MODULE. Close it carefully.
3. Take special care to the JOYSTICK during assembly.
4. Gently, position the HD FLEX ASSY onto the HINGE ASSY. Take
special care to the switches and to the right position of the
HINGE MECHANICAL ASSY.
5. Lift the FRAME UPPER ASSY with the SYSTEM MODULE as
shown...
6. ...and close the COAX CABLE connector and the HD FLEX
connector.
To Next Page
