N5700 RM-230 / RM-302
Page (53) ISSUE 2
Service Manual Level 1&2

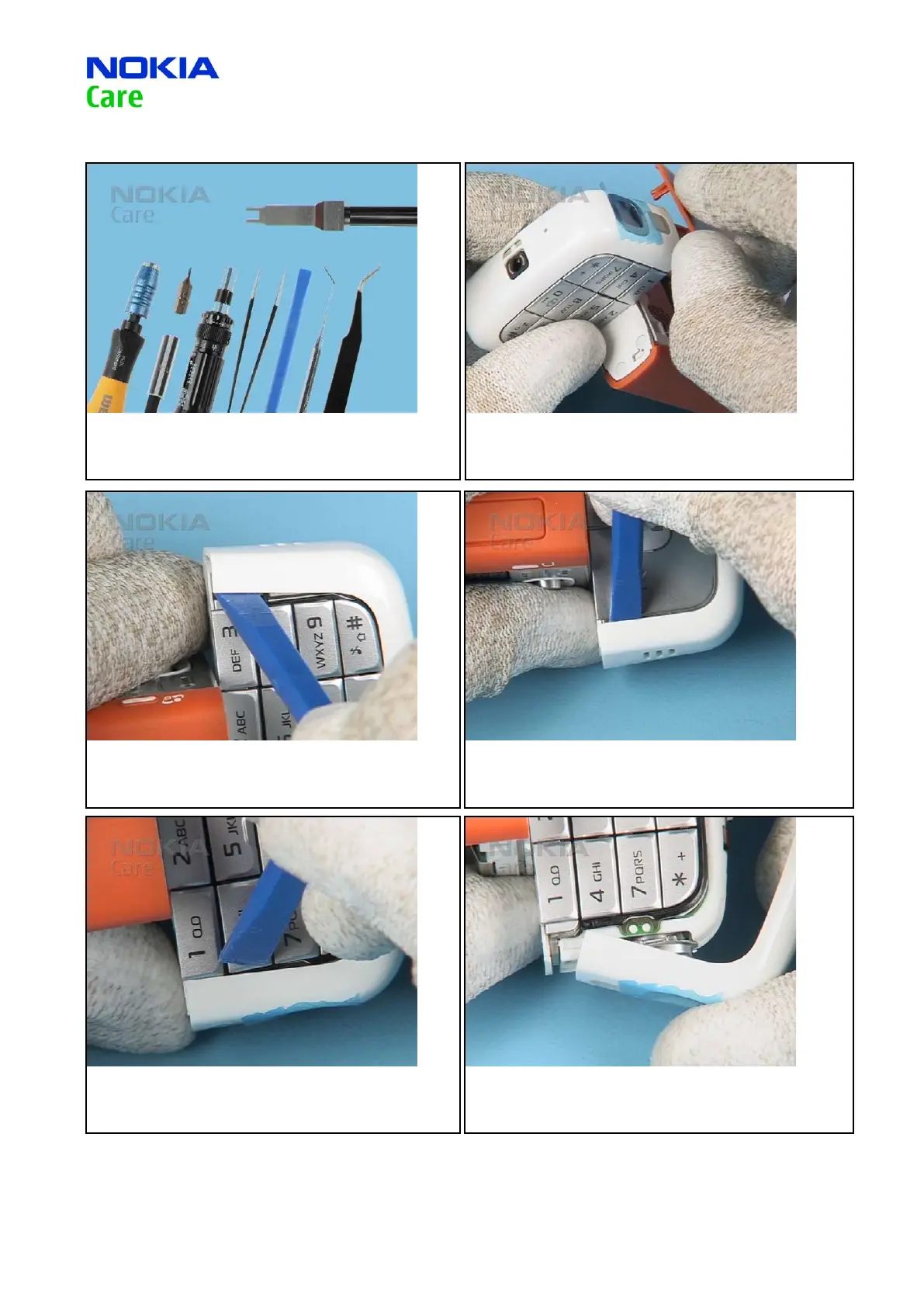

LOWER BLOCK DISASSEMBLY15.
1. Needed tools: a Torx driver, a bit holder, a Torx Plus size 5
bit, a torque driver, metal tweezers, the SS-93, a dental pick,
angled tweezers and the SS-45 camera removal tool.
2. Open the BATTERY COVER and remove the battery if inserted.
3. Unlock the BOTTOM COVER ASSY with this SS-93.
4. Turn the unit and unlock the rear snaps.
5. Unlock the clips on the CAMERA side.
6. Remove the BOTTOM COVER ASSY.
