N5700 RM-230 / RM-302
Page (53) ISSUE 2
Service Manual Level 1&2

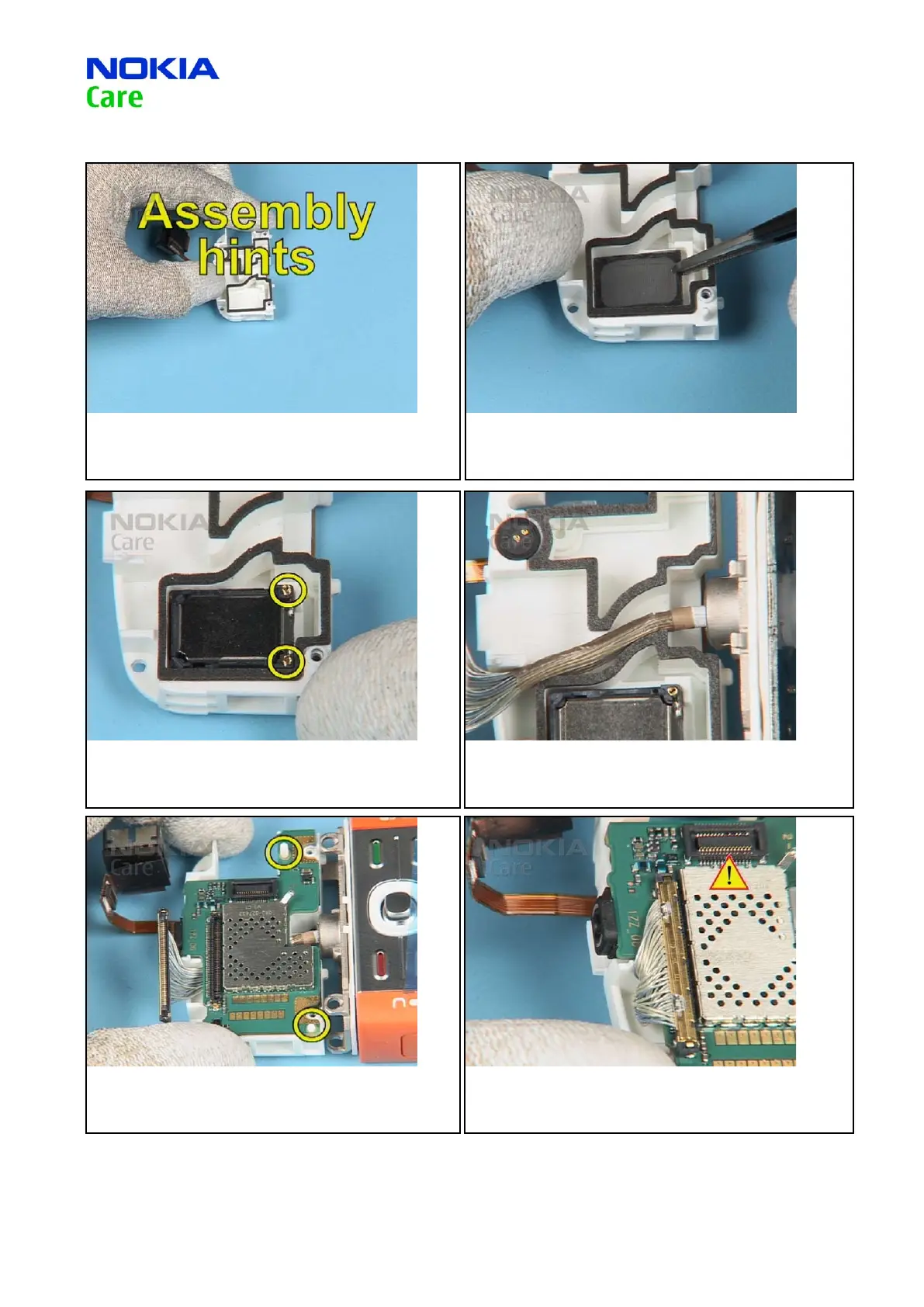

1. Assembly hints.
2. Always use a new UPPER IHF GASKET.
3. Ensure the correct position of the spring contacts when
inserting the IHF SPEAKER.
4. Take special care to the correct position of the COAX CABLE
when tting the D-COVER MUSIC ASSY.
5. Place the PWB MODULE on the D-COVER MUSIC paying
attention to the guide pins.
6. Carefully close the COAX CABLE connector. Note the correct
position of the COAX CABLE.
LOWER BLOCK ASSEMBLY HINTS16.
