N5700 RM-230 / RM-302
Page (53) ISSUE 2
Service Manual Level 1&2

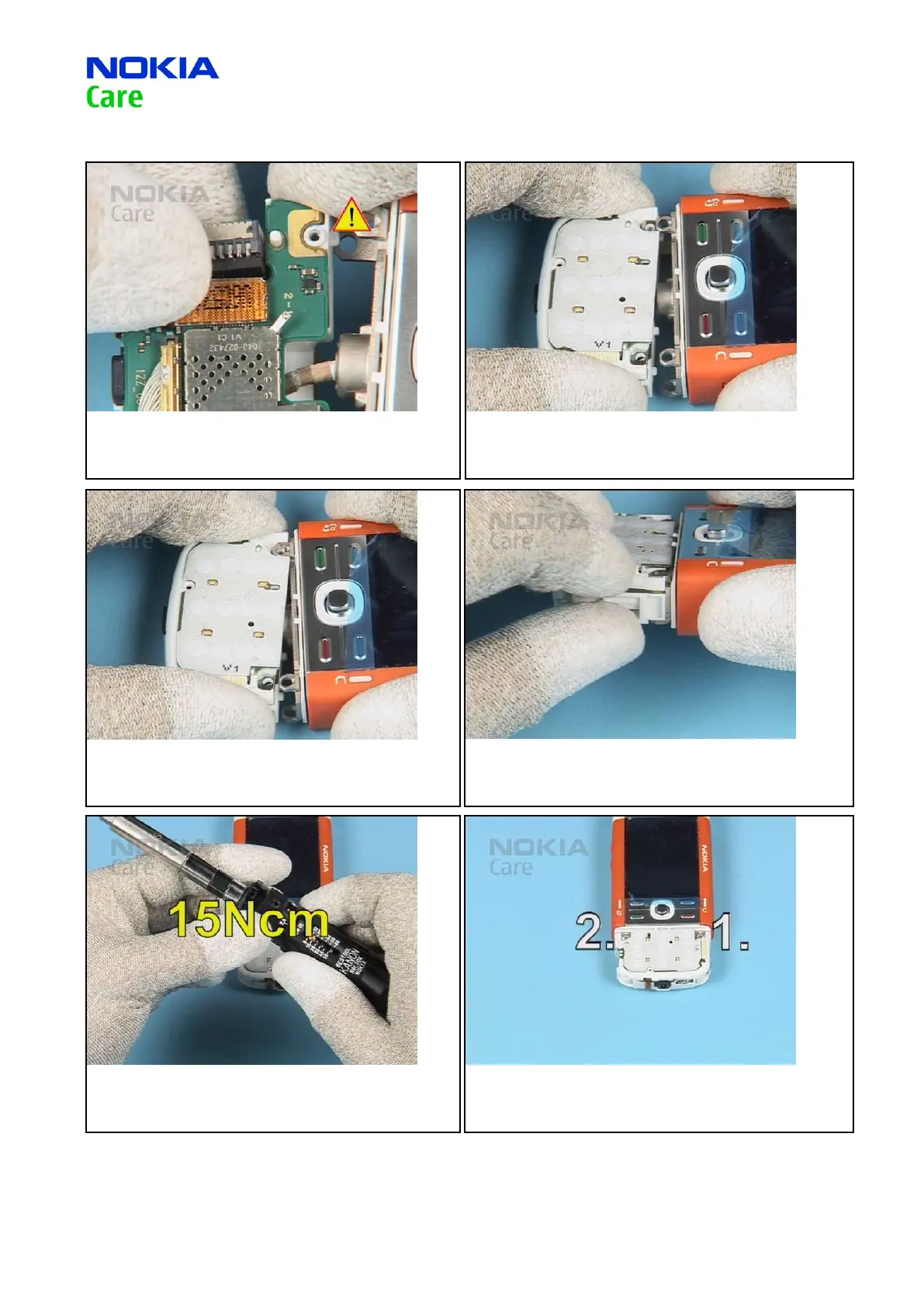

7. Place the LOWER FLEX ASSY with the CAMERA housing into its
place and close the connector.
8. Fit the D-COVER NUMERIC ASSY.
9. Fit the LOWER BLOCK to the HINGE MECHANICAL ASSY starting
on the shown side.
10. Continue on the other side.
11. Set the torque driver to the correct torque...
12. Tighten the screws in the order shown, starting on the D-
COVER NUMERIC side.
