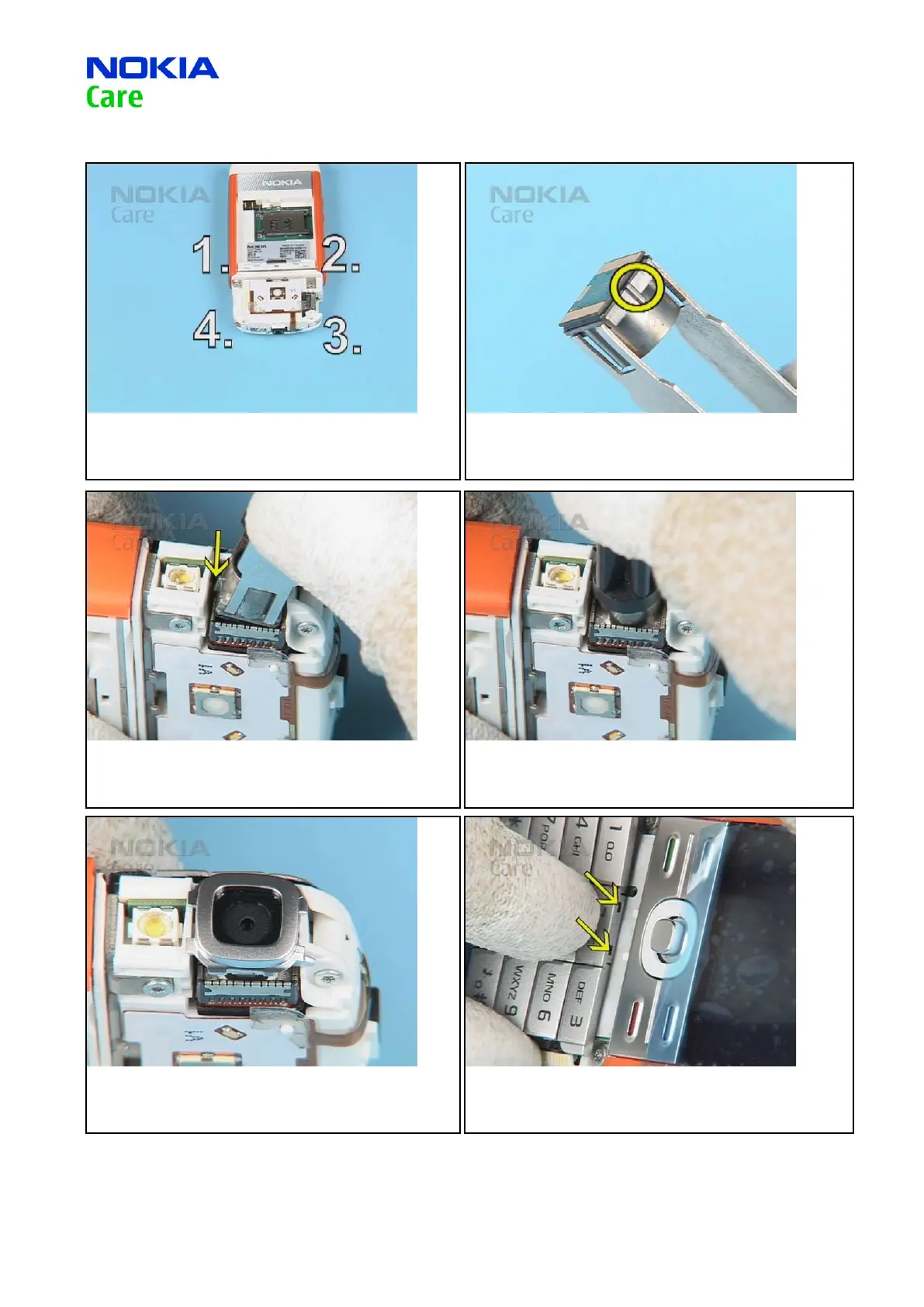

13. Continue on the D-COVER MUSIC side.
14. Note the aligment tab of the CAMERA when reassembling the
unit.
15. Insert the CAMERA into its housing...
16. ... and secure it by pushing it into its place.
17. Fit the WINDOW CAMERA ASSY. Not the correct position.
18. Fit the KEYMAT NUMERIC paying attention to the guide pins.
