N5700 RM-230 / RM-302
Page (53) ISSUE 2
Service Manual Level 1&2

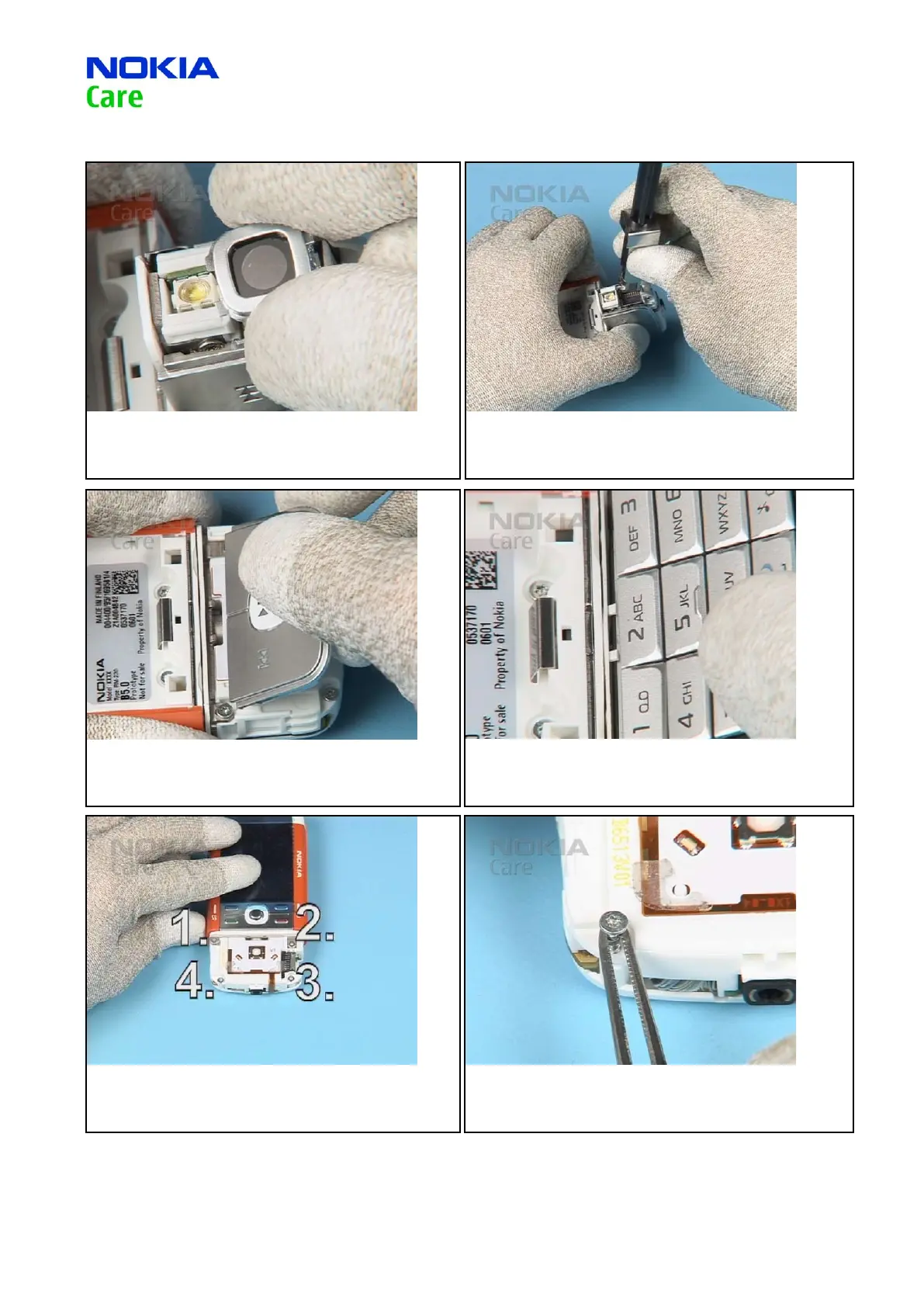

7. Remove the WINDOW CAMERA ASSY.
8. Unlock and remove the CAMERA with the SS-45.
9. Remove the KEYMAT MUSIC.
10. Remove the KEYMAT NUMERIC paying attention to the guide
pins.
11. Undo the screws in the order shown...
12. ...and remove them.
