N5700 RM-230 / RM-302
Page (53) ISSUE 2
Service Manual Level 1&2

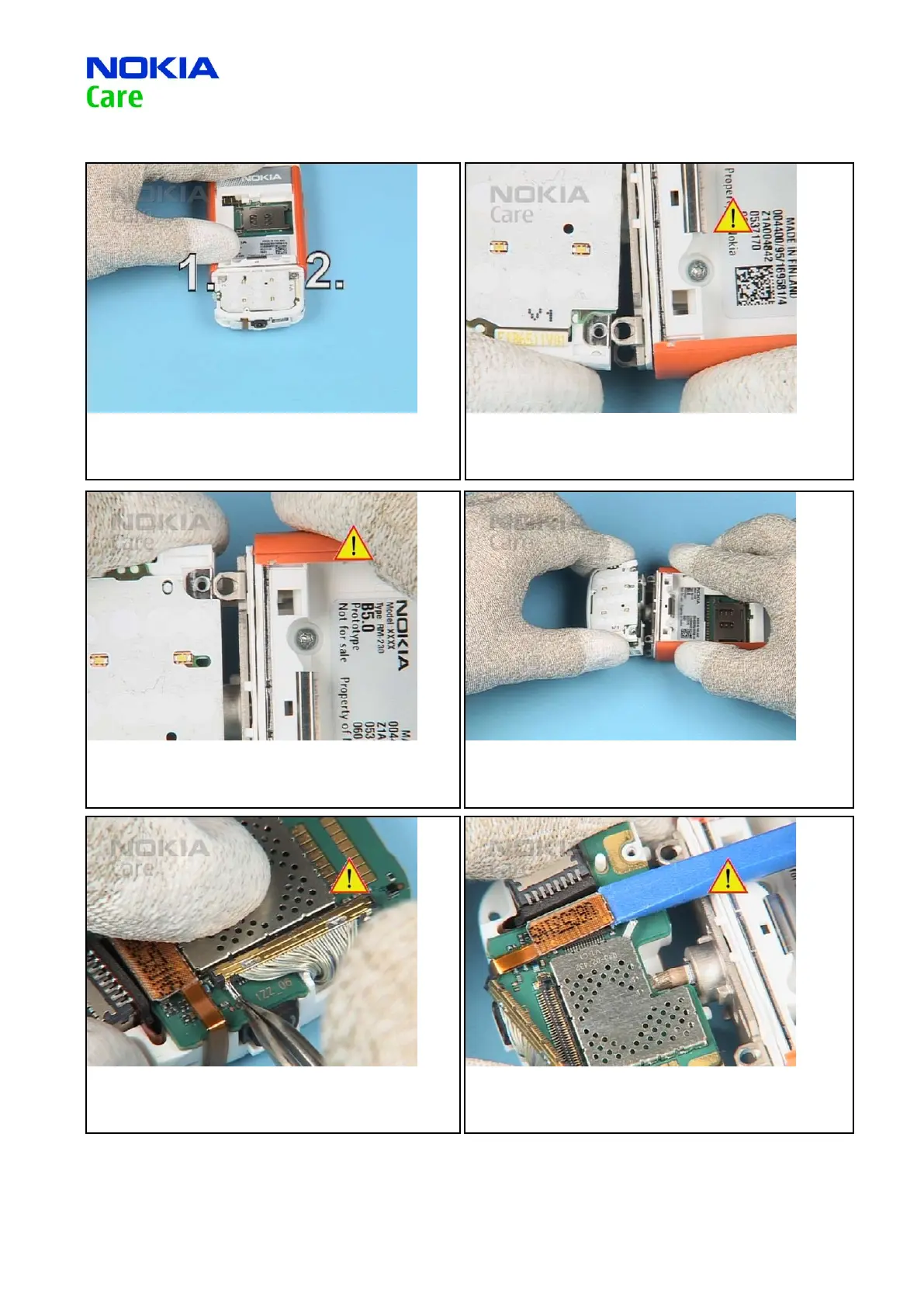

13. Undo the last two screws in the order shown and remove
them, too.
14. Gently separate the Lower Block from the Upper Block,
starting at the shown side.
15. Now, separate the other HINGE side. Take care to the COAX
CABLE.
16. Remove the D-COVER NUMERIC.
17. Very gently open the COAX connector...
18. ...and the CAMERA connector.
