N5700 RM-230 / RM-302
Page (53) ISSUE 2
Service Manual Level 1&2

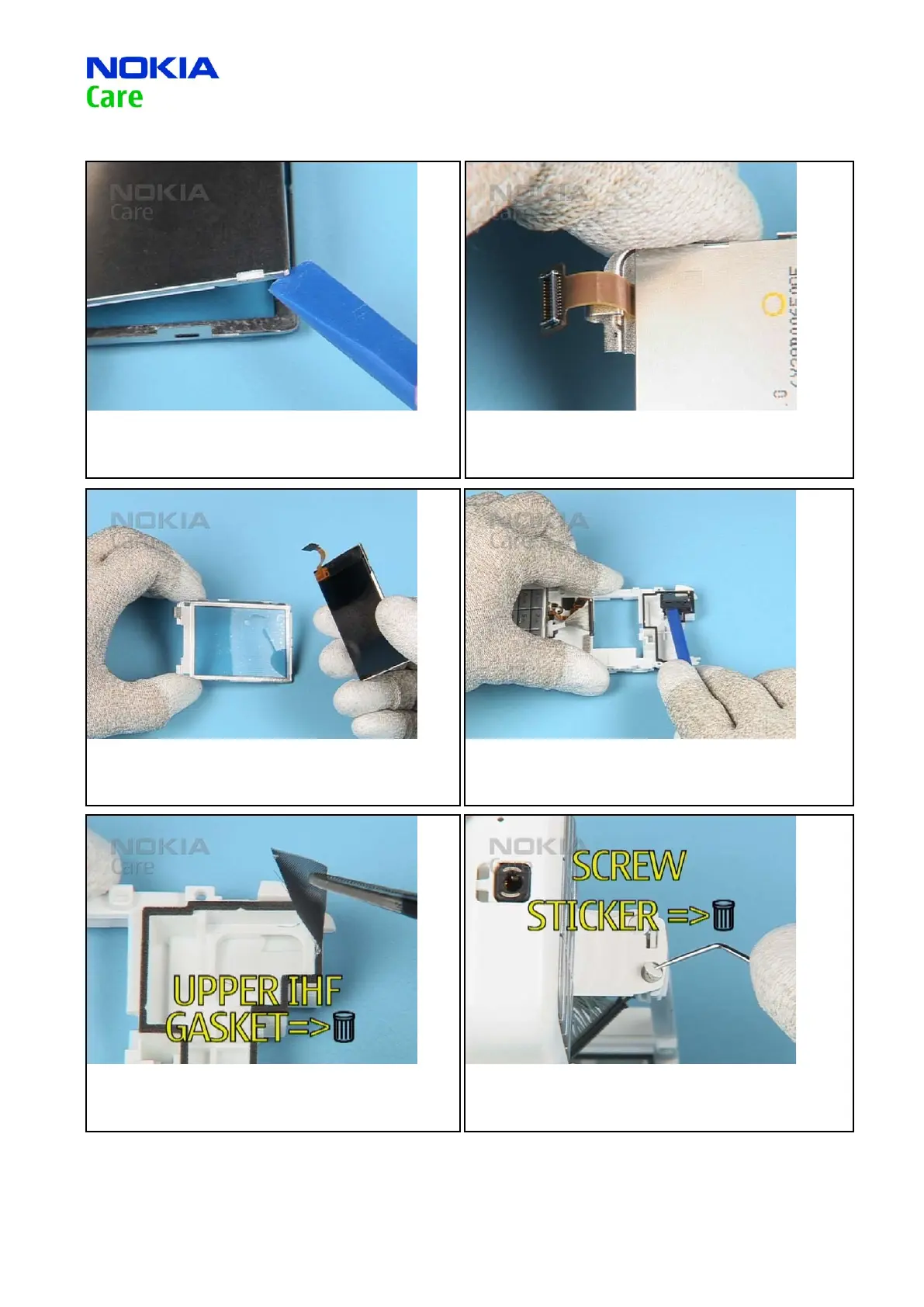

31. Remove the LCD from the FRAME LCD.
32. Take care to the LCD connector.
33. Always cover the sensitive surfaces with the protective
lm.
34. Remove the IHF SPEAKER
35. Remove the UPPER IHF GASKET and the adhesive residues.
36. Turn the LOWER BLOCK to the shown position. Remove all
SCREW STICKERS and discard them.
