N5700 RM-230 / RM-302
Page (53) ISSUE 2
Service Manual Level 1&2

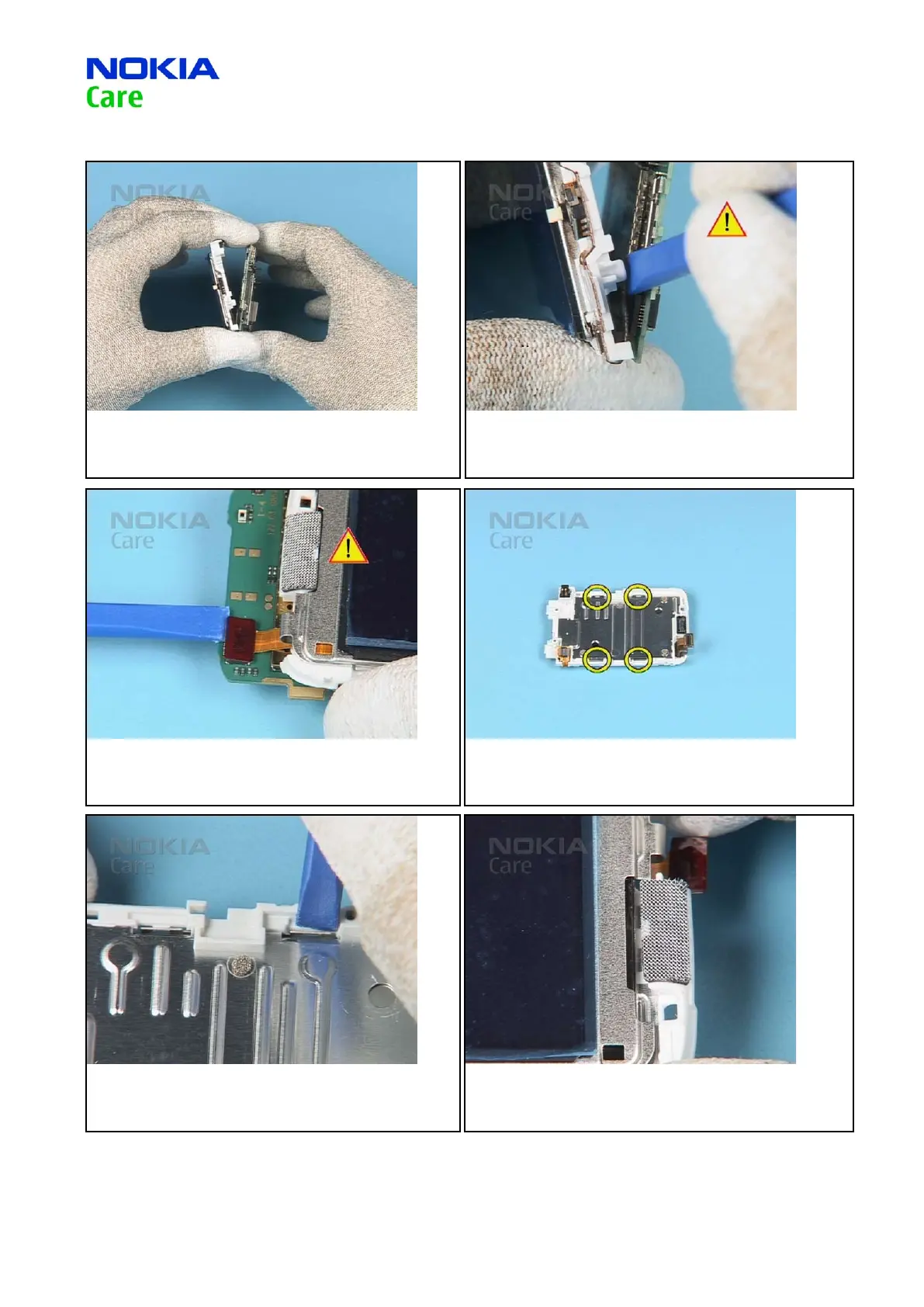

25. Hold the parts as shown.
26. First open the FLEX UPPER connector...
27. ...and then open LCD connector, avoiding touching the
surrounding components. Separate the parts from each other.
28. The Frame LCD assy is secured with four clips to the FRAME
UPPER ASSY.
29. Release the clips...
30. ...and remove the parts from the FRAME UPPER ASSY as
shown.
