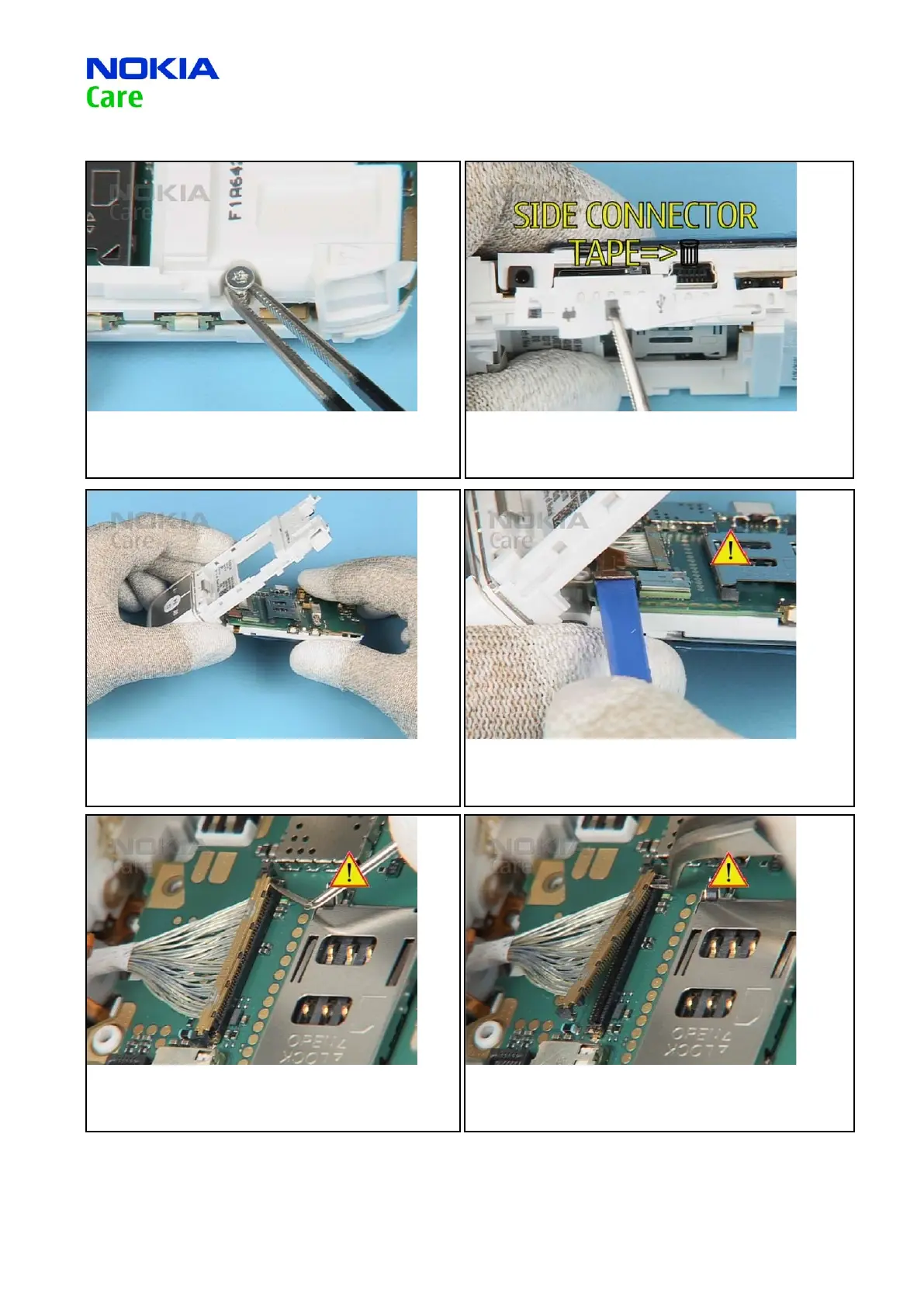

19. ...and remove them.
20. remove the SIDE CONNECTOR TAPE and discard it.
21. Gently open the covers as shown. Do not separate the
parts from each other yet.
22. Carefully open the HD FLEX connector.
23. Very gently, lift a bit the COAX CABLE connector with the
dental pick...
24. ...and open it with angled tweezers. Now, the FRAME UPPER
ASSY with the SYSTEM MODULE can be separated from the C-COVER
ASSY.
