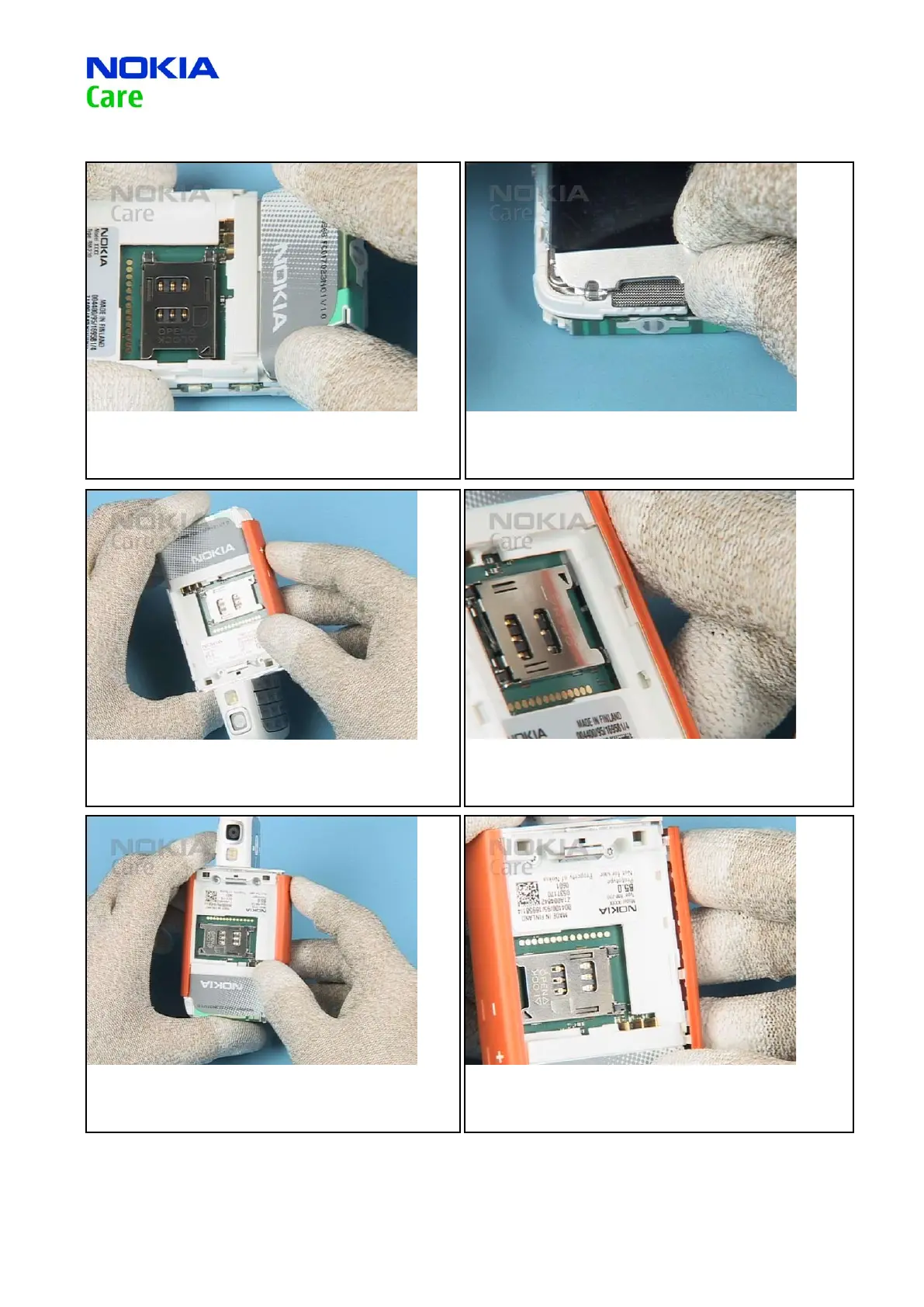

25. Insert the ANTENNA ASSY, paying attention to the guide
pin. Secure the ANTENNA ASSY by pressing it into place.
26. Fit the LOGO PLATE.
27. Align the SIDE ASSY LEFT with the UPPER BLOCK.
28. Check the correct position of the guide pins. Slide the SIDE
ASSY LEFT into its place.
29. Align the SIDE ASSY RIGHT with the UPPER BLOCK.
30. Check the correct position of the guide pins...
