Your phone
4Copyright © 2005 Nokia. All rights reserved.
2. Your phone

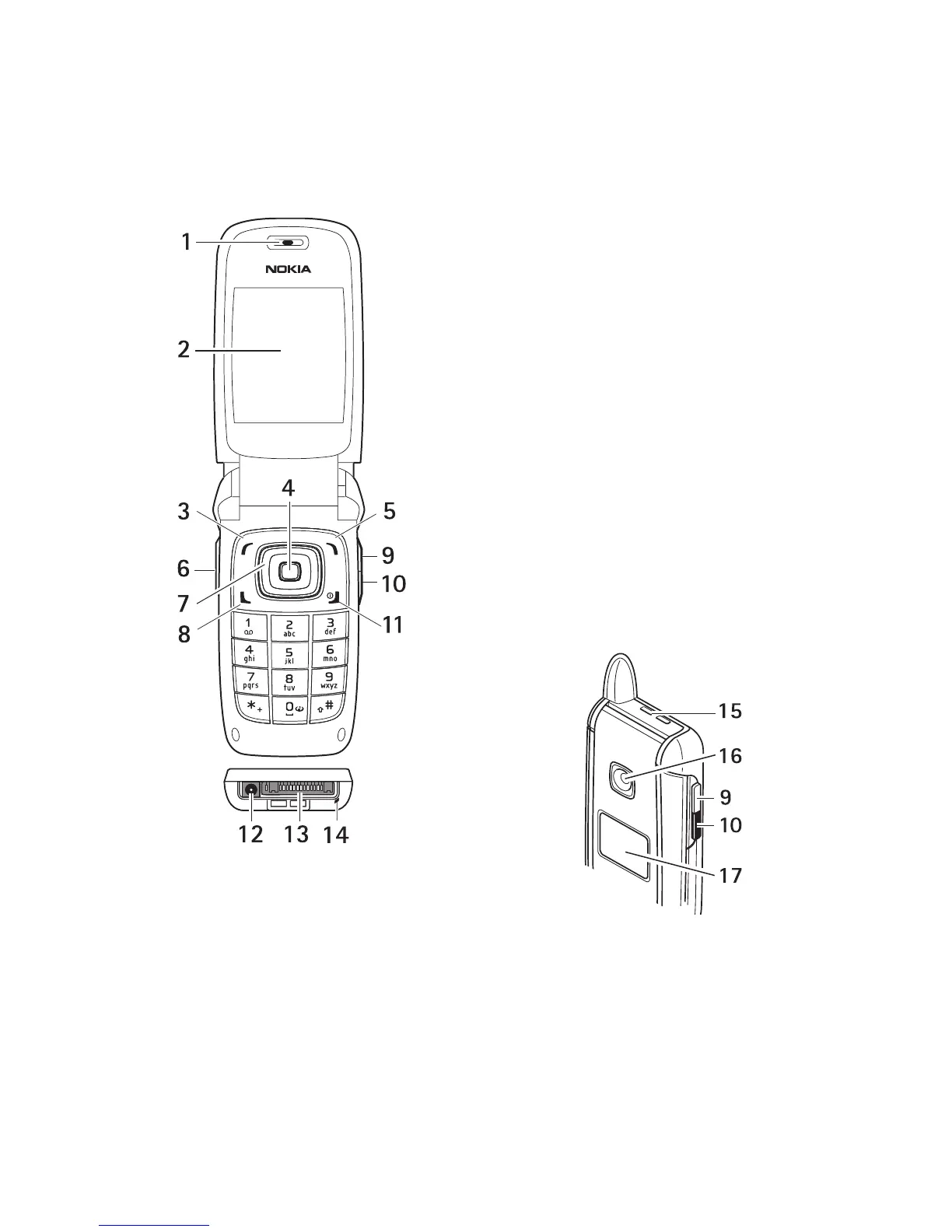

■ Keys and parts
• Earpiece (1)
• Main display (2)
• Left selection key (3)
Middle selection key (4)
Right selection key (5)
The function of these keys
depends on the guiding text
shown on the display above the
keys.
• Volume key (6)
• 4-way navigation key (7)
Scroll up, down, left, and right.
• Call key (8)
• Push to talk (PTT) key, and camera
release key (9)
• Infrared (IR) port (10)
• End key and power key (11)
• Charger connector (12)
•Pop-Port
TM
connector (13)
• Microphone (14)
• Loudspeaker (15)
• Camera lens (16)
• Mini display (17)
